Name: High Pressure Double Sphere Rubber Flexible Joint with ANSI Flanges
Brand: Ninghao
Rating: 5.0 (16 reviews)

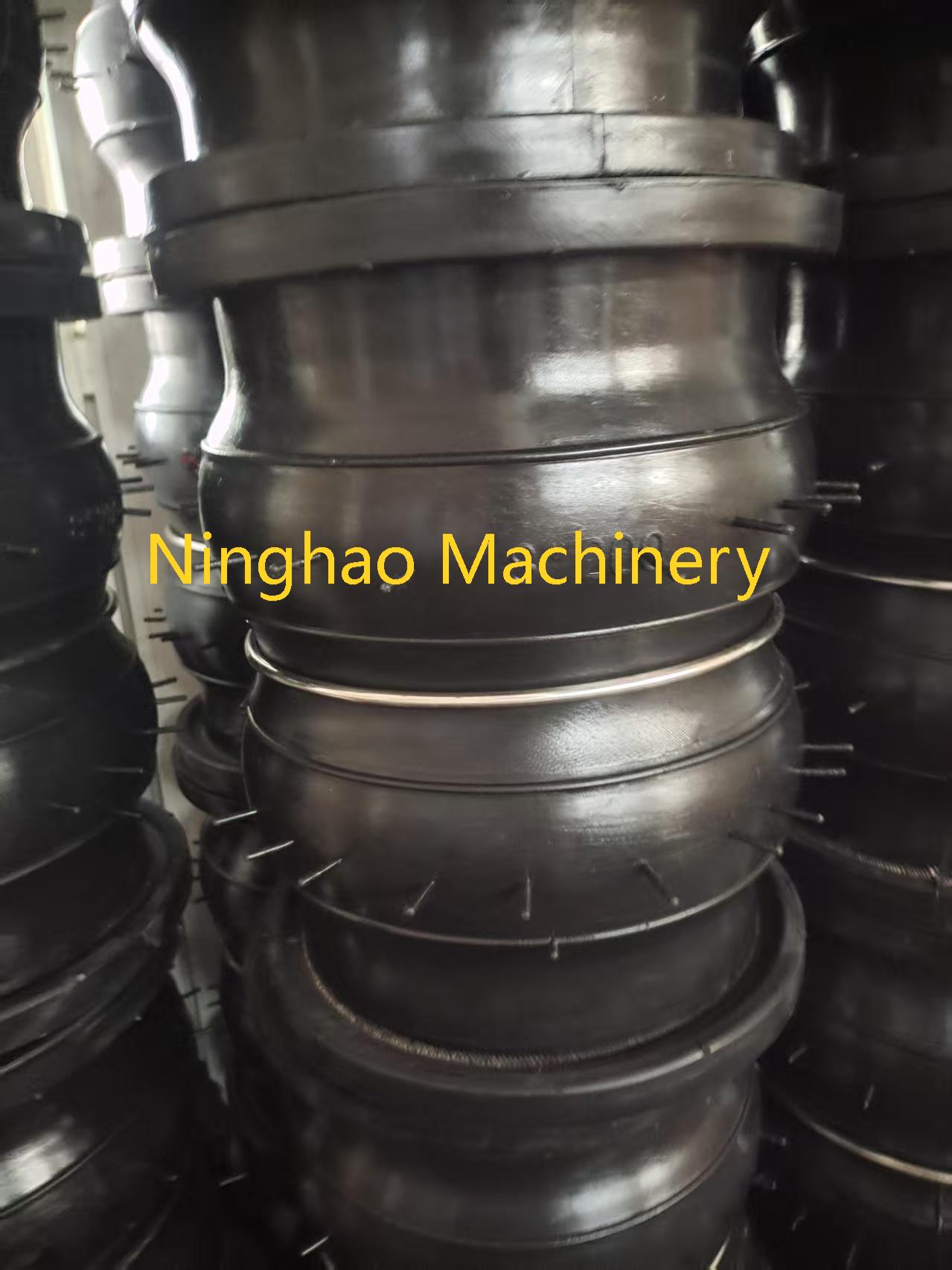

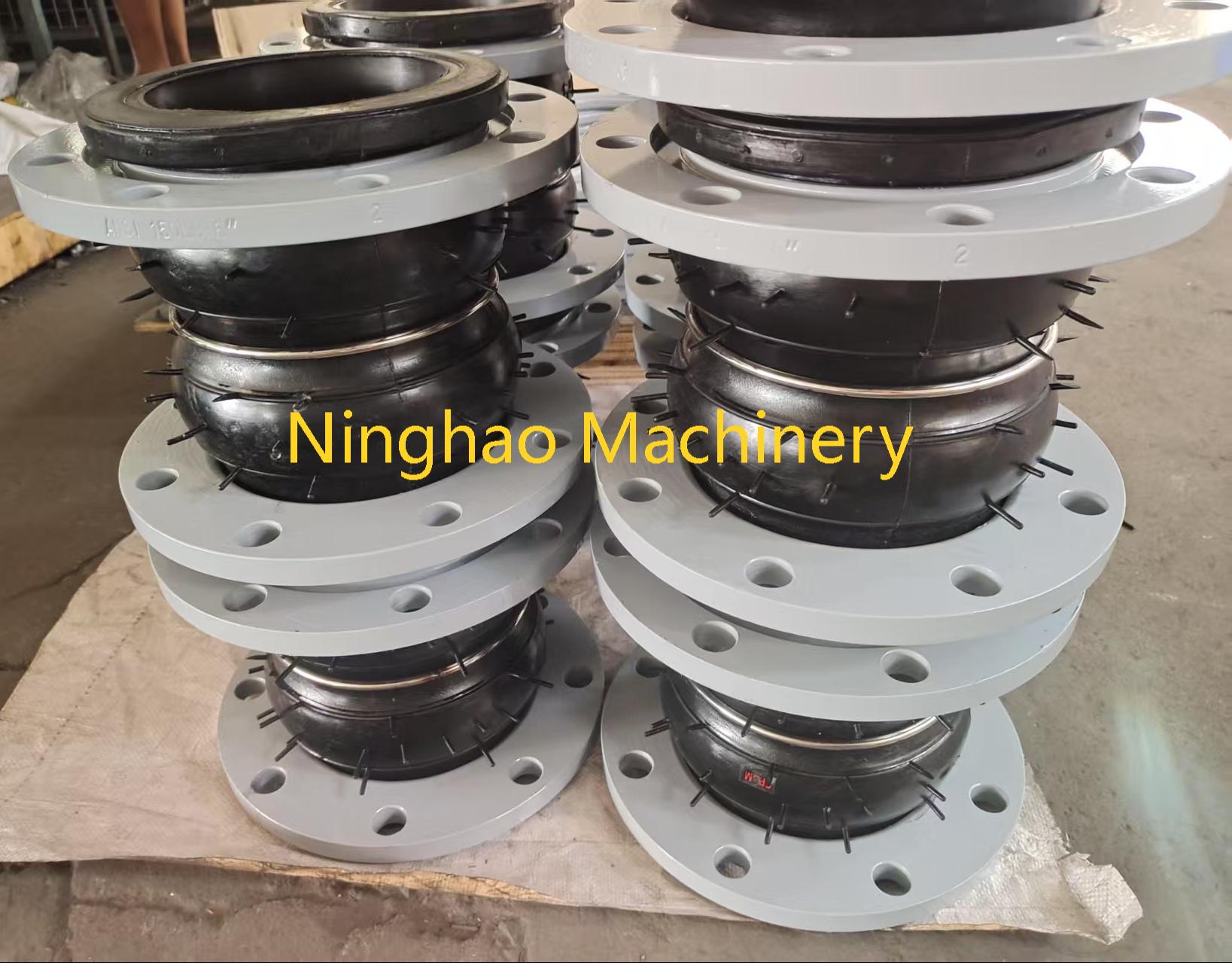

NHFLEX-B TYPE High Pressure Double Sphere Rubber Flexible Joint with ANSI Flanges

The double sphere rubber joint is a reliable and versatile component widely applied in piping systems. Its primary function is to absorb movement, minimize vibration, and compensate for misalignment, ensuring smooth operation and extending the service life of the pipeline. Constructed from premium rubber materials, it offers excellent durability and strong resistance to corrosion, chemicals, and extreme temperature conditions, making it a dependable choice for demanding environments.

Key Advantages

Double Sphere Design – Greater Flexibility
The dual-sphere structure provides increased axial, lateral, and angular movement capability compared to single sphere joints, making it especially suitable for high-movement pipeline systems.

High Pressure Performance
Reinforced with high-strength nylon cord or steel wire layers, the rubber body withstands elevated working pressures while maintaining excellent elasticity and fatigue resistance.

ANSI Standard Flanges
Equipped with ANSI B16.5 flanges for precise fit, easy installation, and compatibility with international piping systems.

Excellent Vibration & Noise Isolation
Effectively absorbs mechanical vibration and reduces noise transmission, extending the service life of connected equipment.

Product Specifications (Customizable)

Size Range: DN25–DN1200
Pressure Rating: 150 PSI / 300 PSI / higher on request
Flange Standard: ANSI B16.5
Rubber Materials: EPDM, NBR, Neoprene, NR
Flange Materials: Carbon steel, stainless steel, galvanized steel
Temperature Range: −30°C to +150°C (depending on rubber type)

Why Choose Our Rubber Flexible Joint?

Designed for high pressure and heavy-duty operation
Reduces maintenance and operating costs
Improves system safety and stability
Long service life with proven industrial performance

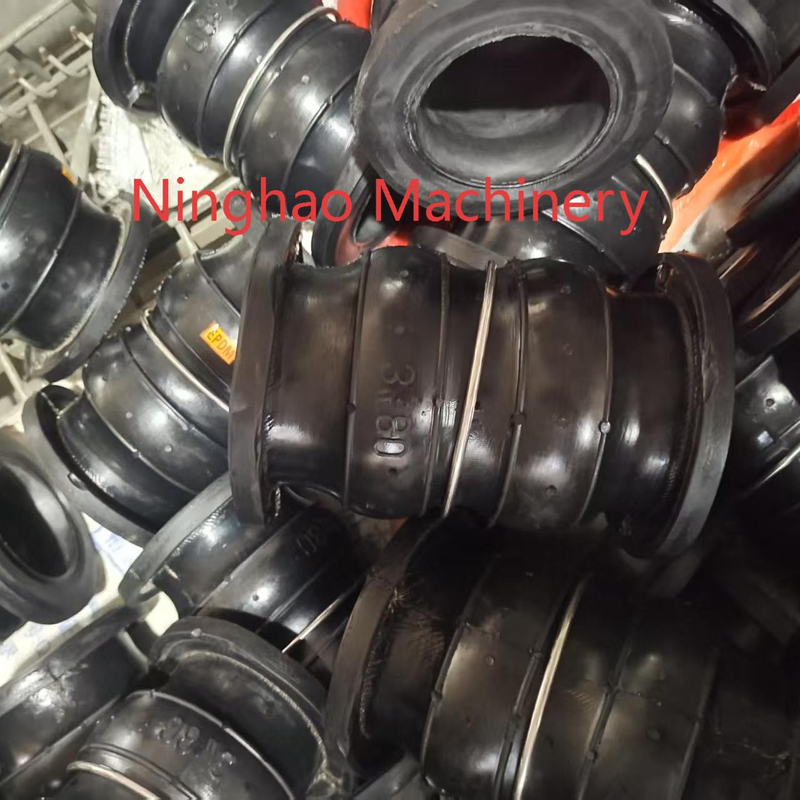

Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber

Compensating for Thermal Expansion and Contraction: Rubber expansion joints compensate for thermal expansion and contraction caused by temperature variations in the pipeline. They prevent excessive stress on the pipeline system due to temperature changes, thereby protecting the pipes from damage.

Absorbing Vibrations and Impacts: Rubber expansion joints absorb stresses caused by vibrations and impacts in the pipeline system, reducing the transmission of vibrations and noise. This helps protect the pipeline and related equipment from damage.

Compensating for Pipe Movements: During installation and operation, pipeline systems may experience certain degrees of pipe movement. Rubber expansion joints compensate for these movements, ensuring the proper functioning of the pipeline system.

Leak Prevention: Rubber expansion joints provide sealing performance in pipeline systems, reducing the risk of leaks and ensuring the safe operation of the pipelines.
Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber

Ningjin NINGHAO Machinery Co.,Ltd. Founded on No November 19, 2010. It is located in No.2 taishan road, econnmic and technological development zone, ningjin county, dezhou city, shandong province. It covers an area of 120 acres, with more than 80 employees, among has all kinds of advanced production and inspection equipment.
We can offer all kinds of rubber expansion joints. Our products include: single ball flexible rubber expansion joint, double sphere rubber expansion joint, rubber-metal pipe connectors, thread-connection rubber expansion joint and tie rods set for rubber expansion joint. Rubber expansion joint main material: EPDM ,NBR ,NR, FR. The standard of the flange: ANSI150, DIN, JIS10K. The flange material: carbon steel, stainless steel, casting steel.
We have been in exporting for many years. We have wide business relations in the world. Now the main supply countries: Spain, Italy, Netherlands, Austria, French, Vietnam, India and many other countries. Our customers and clients all think highly of us.
Last, looks forward to the cooperation with you sincerely!
