Rubber Expansion Joint Overview
A Rubber Expansion Joint is a flexible connector used to absorb vibration, thermal expansion, and misalignment in piping systems. It features rubber bellows reinforced with fabric or metal layers for strength and elasticity. These joints help maintain pipeline integrity by minimizing mechanical stress and preventing damage caused by temperature changes. Commonly applied in HVAC, plumbing, and fire protection systems, they enhance system stability and extend equipment life.

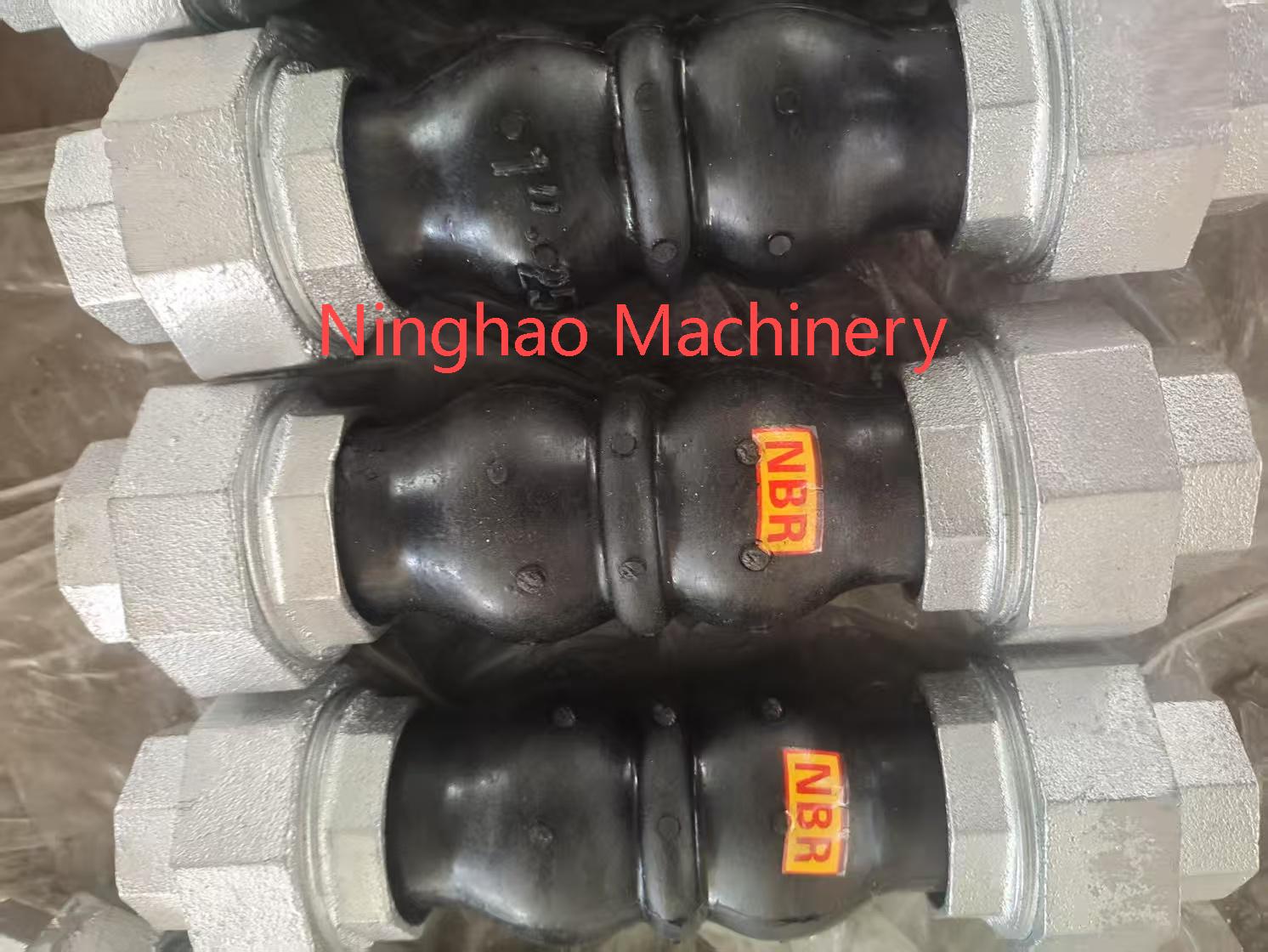

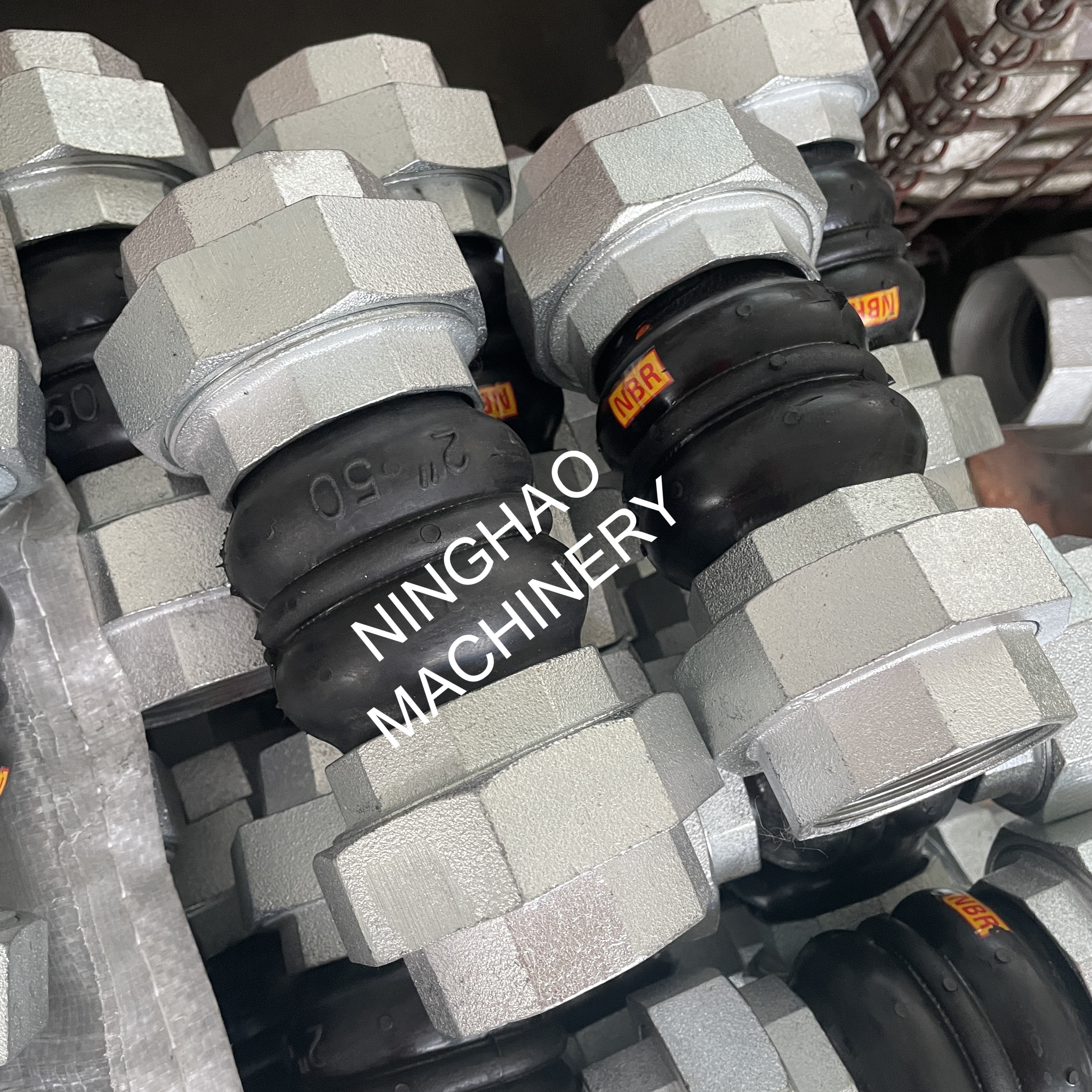

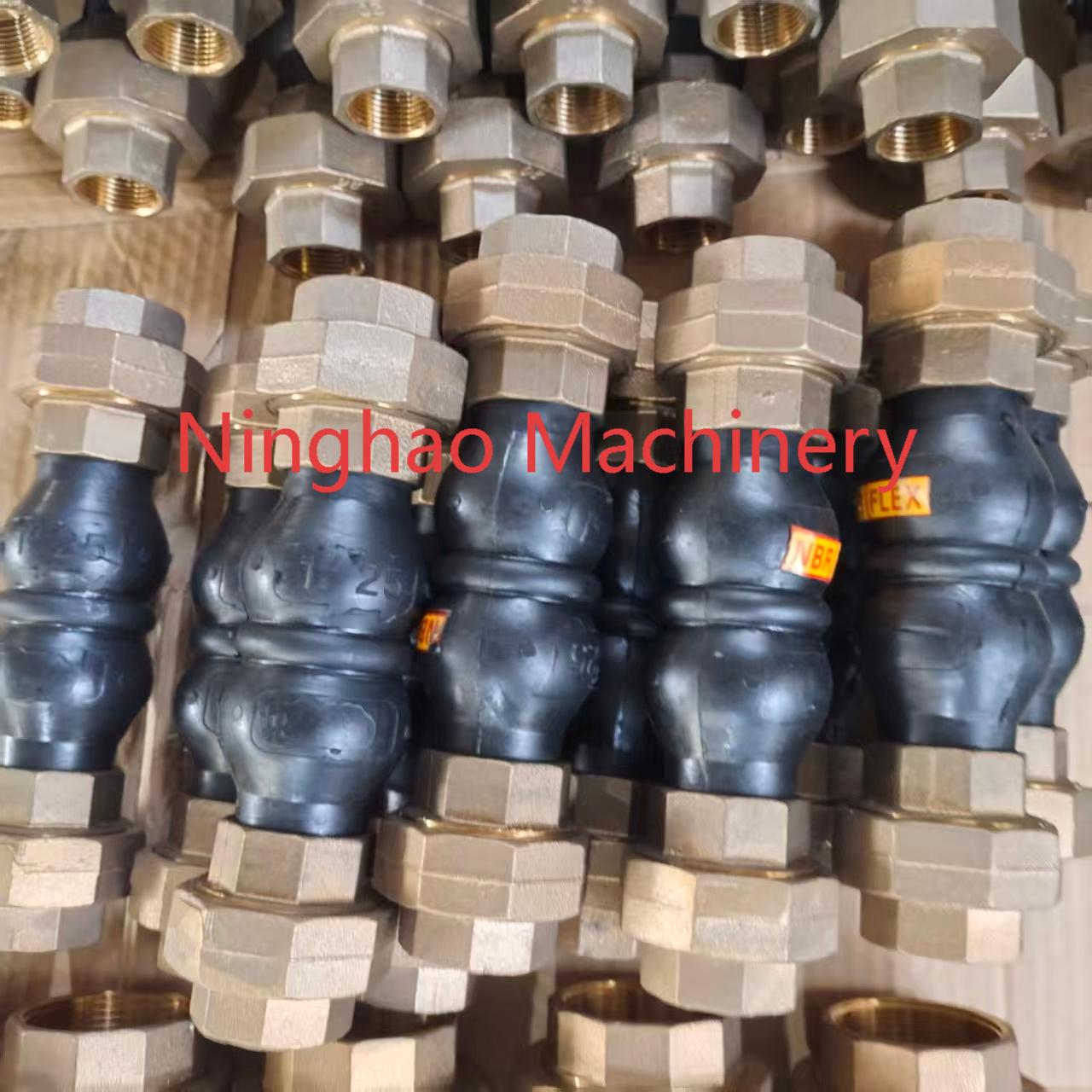

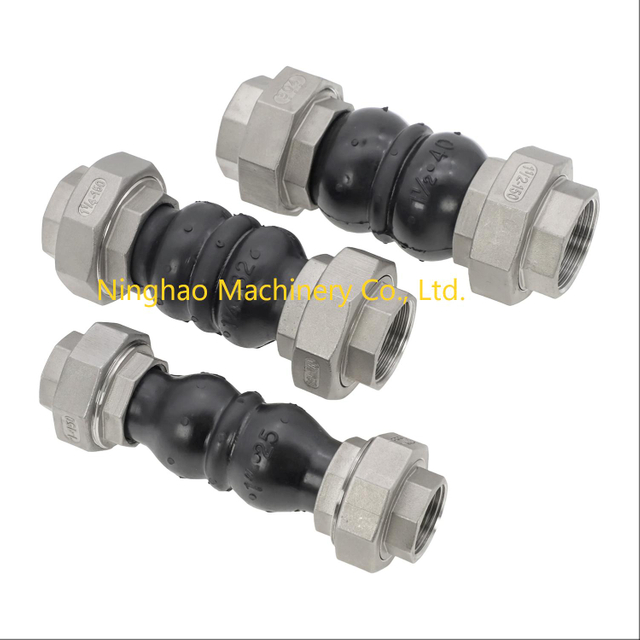

Nhflex offers a comprehensive range of rubber expansion joints, including specialized models like the Union Thread Connection Flexible Rubber Expansion Joint Pipe Connector, designed for durability and easy installation in both industrial and building applications.
Nhflex Rubber Expansion Joint Advantages
As a professional manufacturer, Nhflex (Ningjin NINGHAO Machinery Co., Ltd.) produces high-quality rubber expansion joints built for long-term reliability. With more than a decade of export experience, we ensure consistent quality through 28 full inspections and international certifications, including CE and API. Our large-scale production and process optimization reduce costs by up to 20%, providing customers with both quality and value.
Rapid delivery with 48-hour production for urgent orders and 7-day shipping capability.
Customized solutions for different media, temperatures, and pressure conditions.
Strong technical team supported by advanced manufacturing and inspection equipment.
Nhflex’s commitment to precision and reliability has made us a trusted name in the global rubber expansion joint industry.
Types of Rubber Expansion Joints
Nhflex manufactures various rubber expansion joint types tailored to diverse industrial needs. Each design is optimized for specific flexibility, pressure, and installation requirements.
| Type | Structure | Key Advantages | Typical Applications |

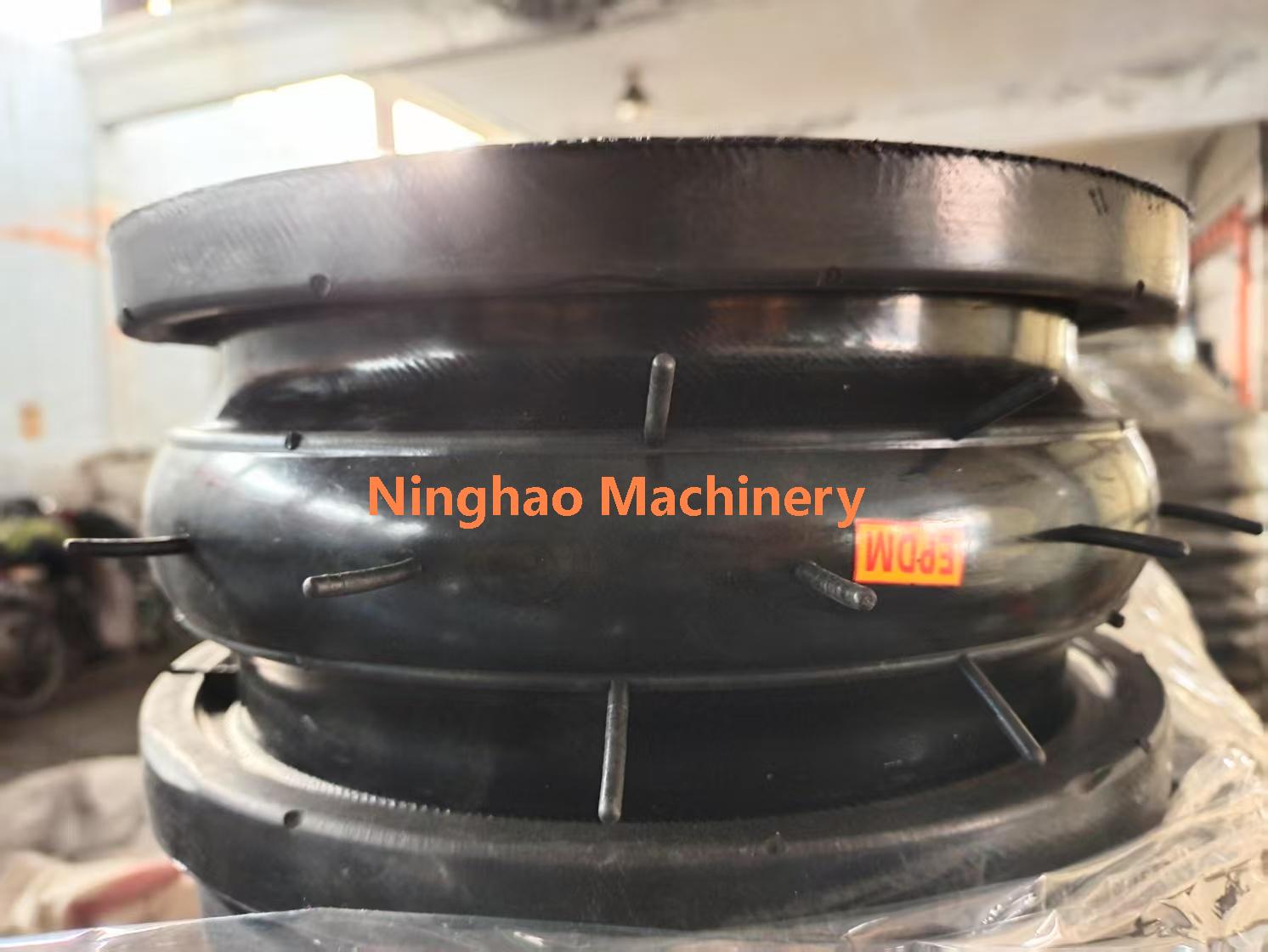

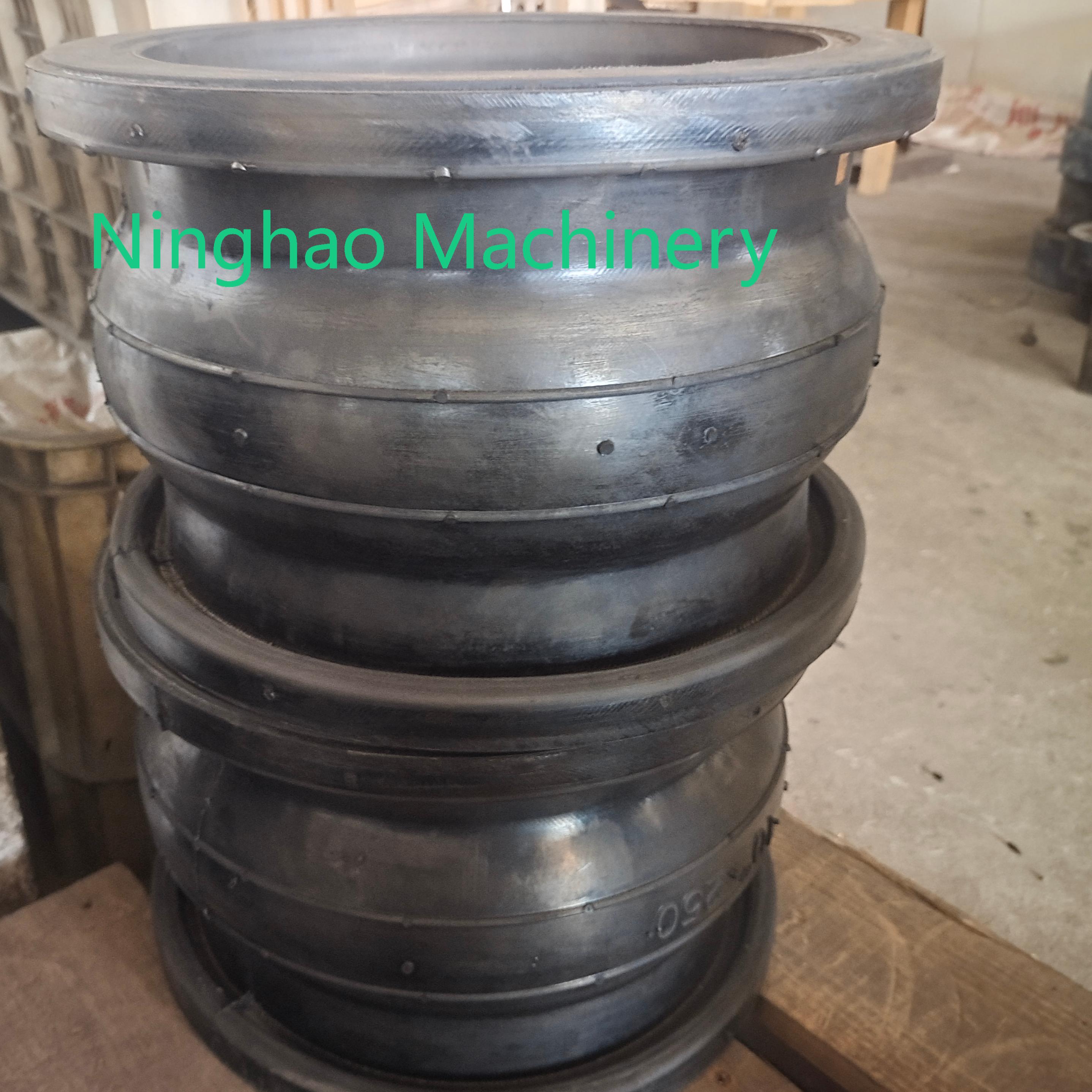

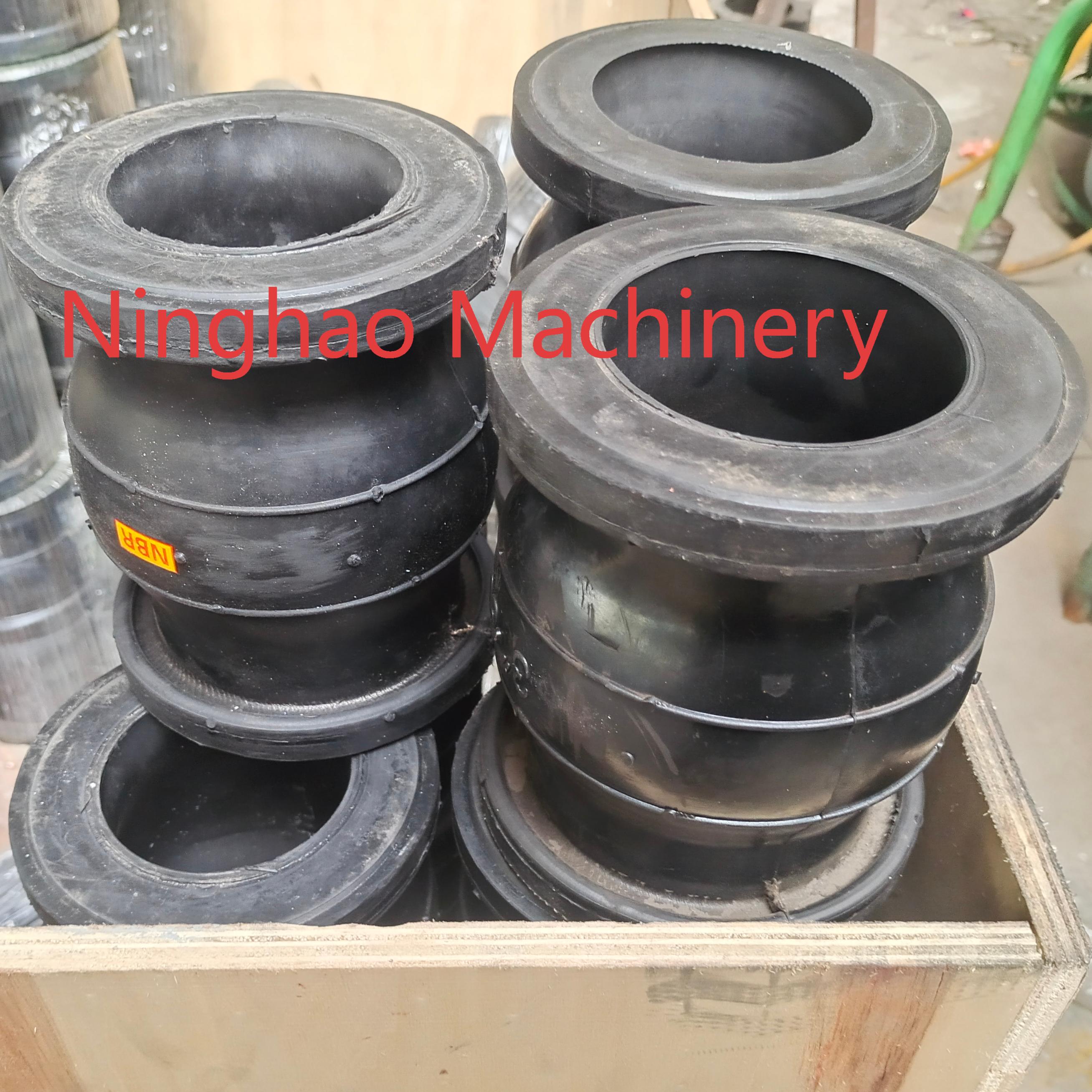

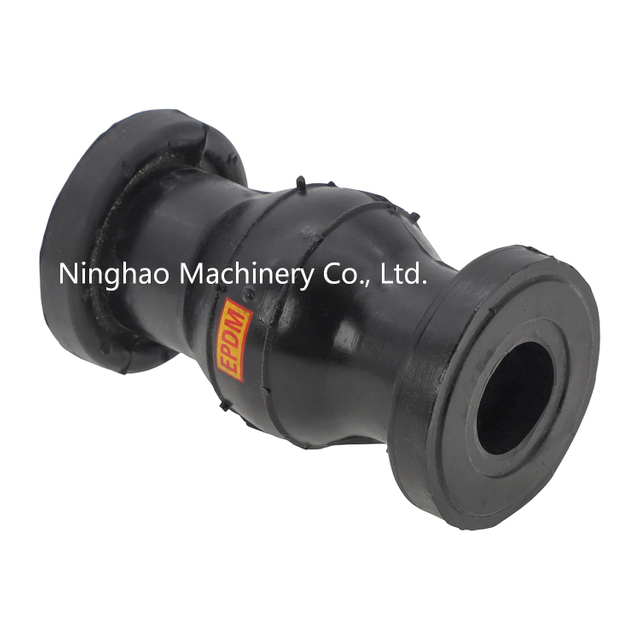

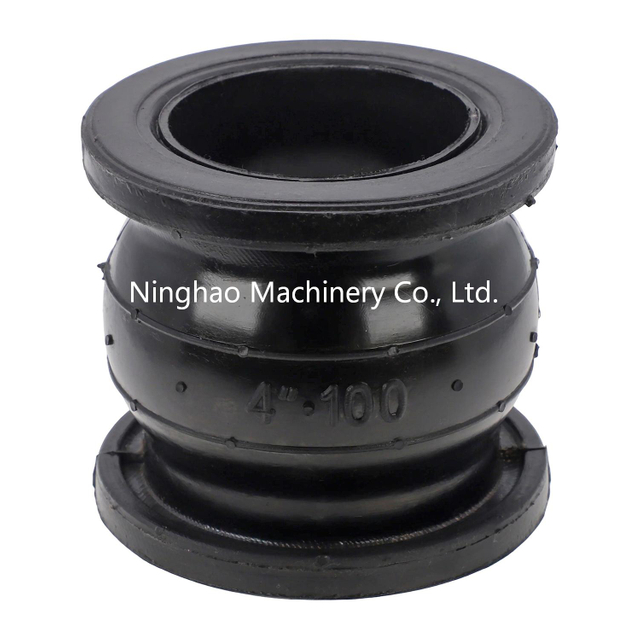

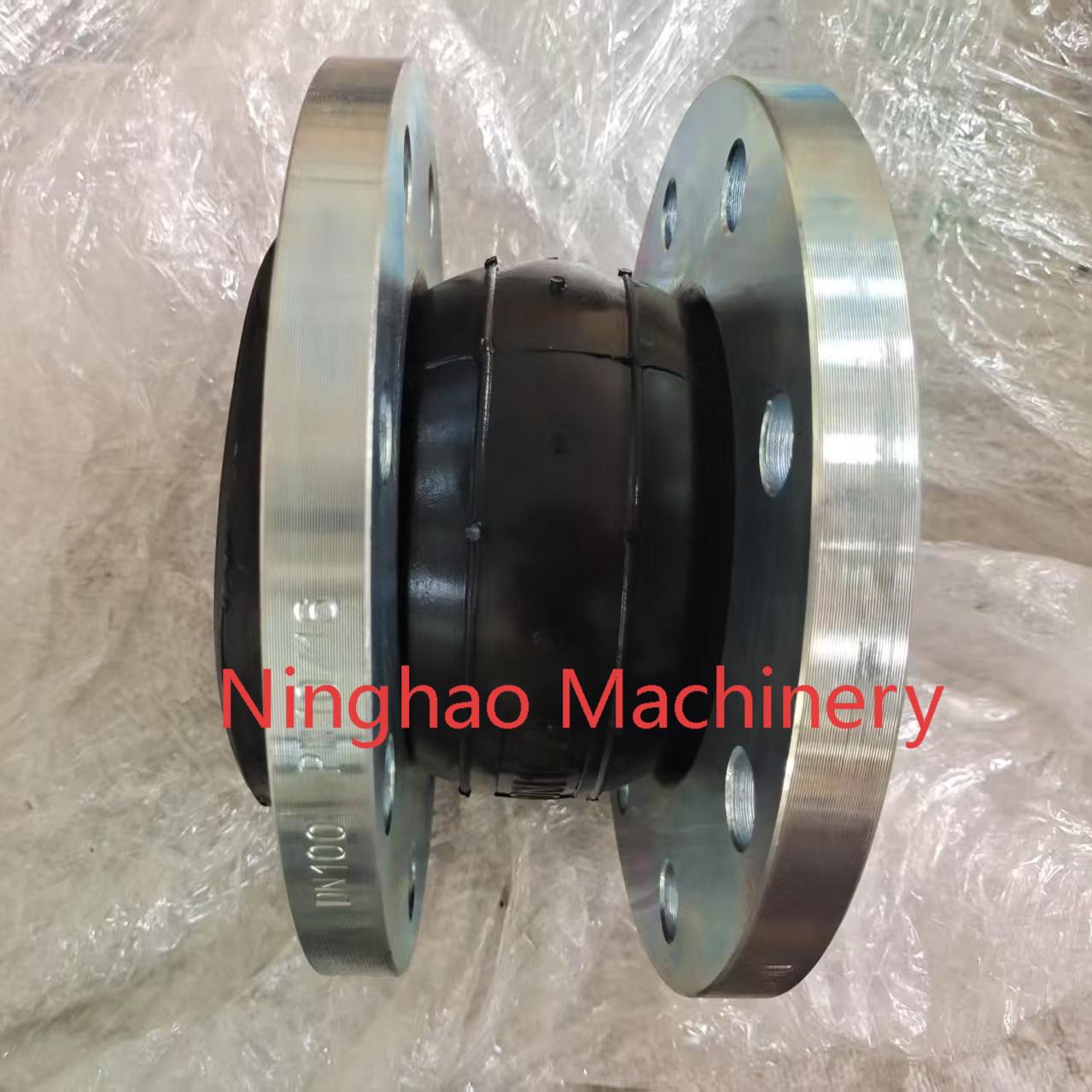

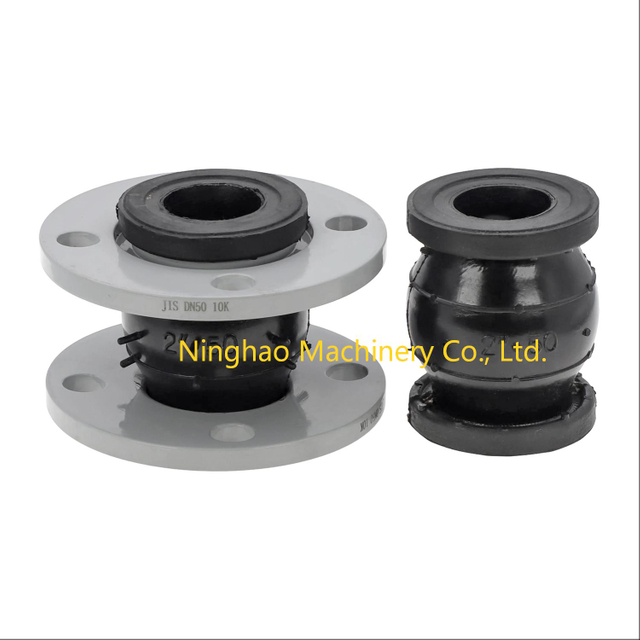

| Single Sphere Rubber Joint | One flexible rubber sphere between flanges | Compact, cost-effective, and easy to install | General water systems, HVAC, and plumbing |

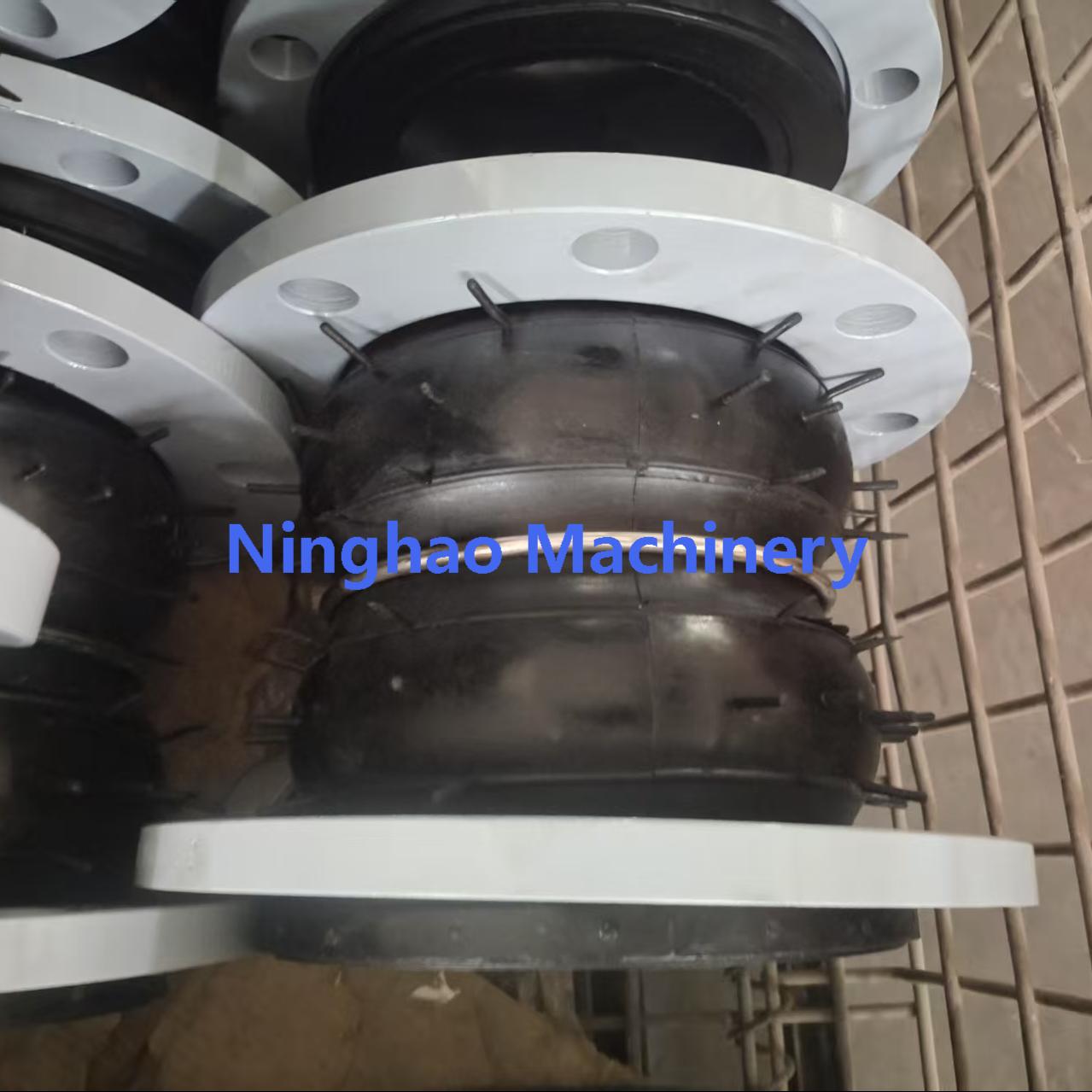

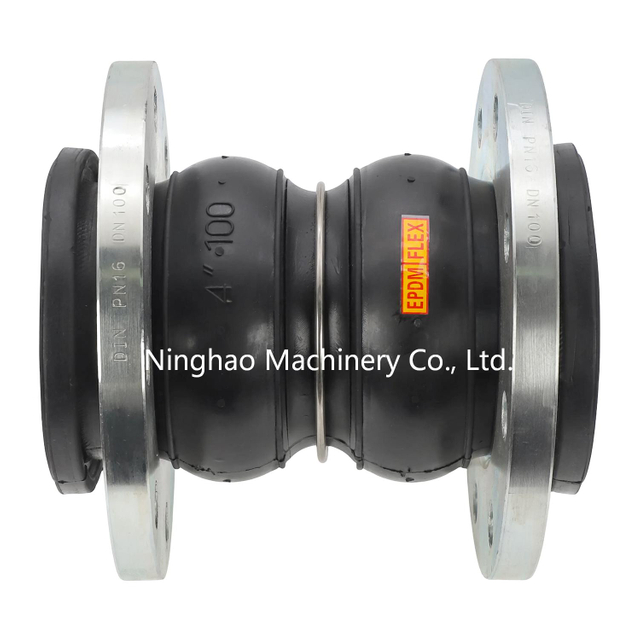

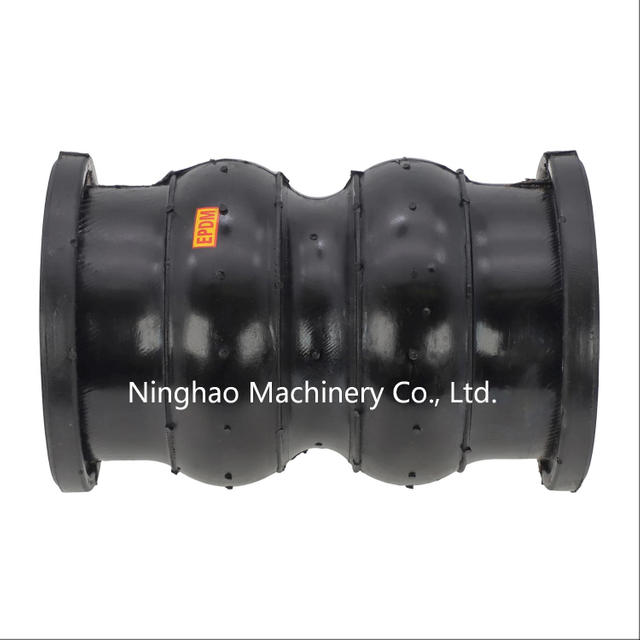

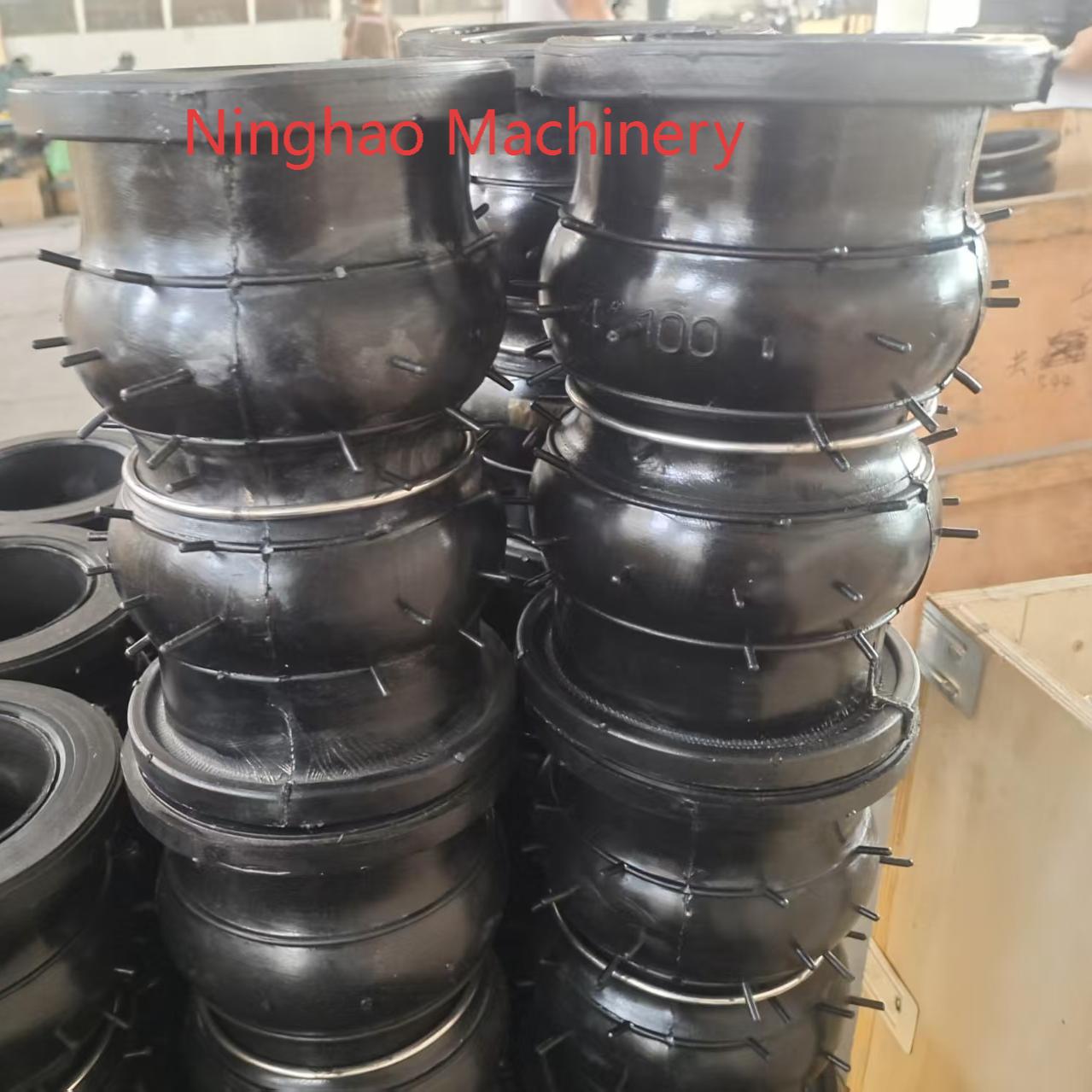

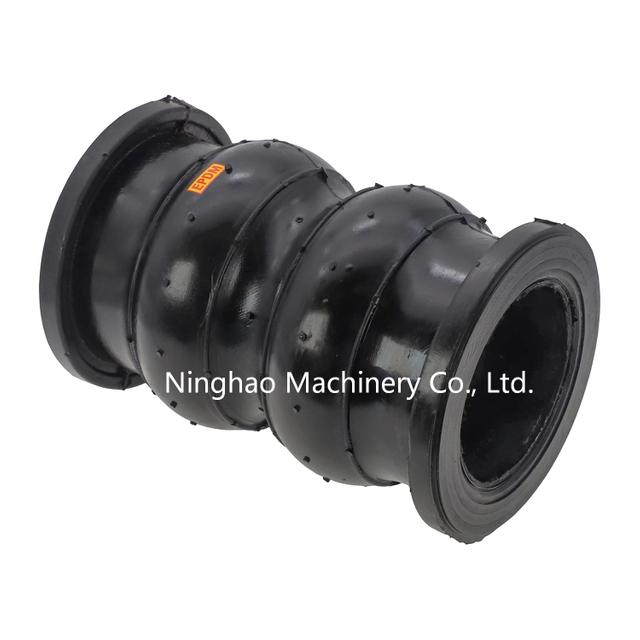

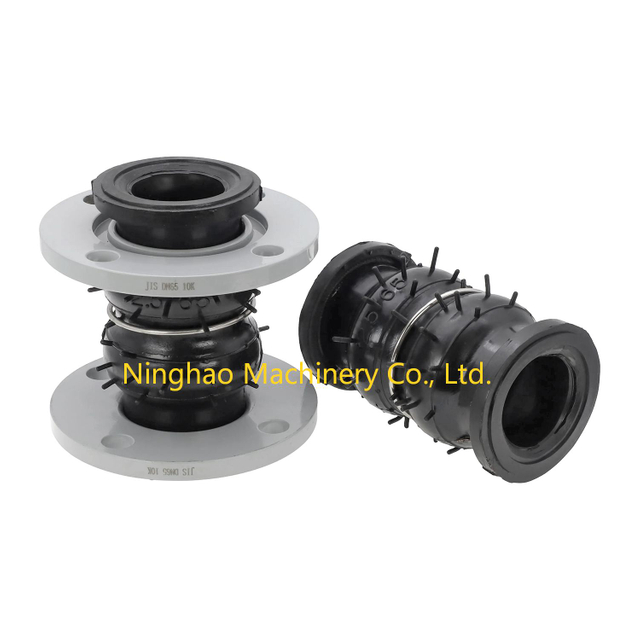

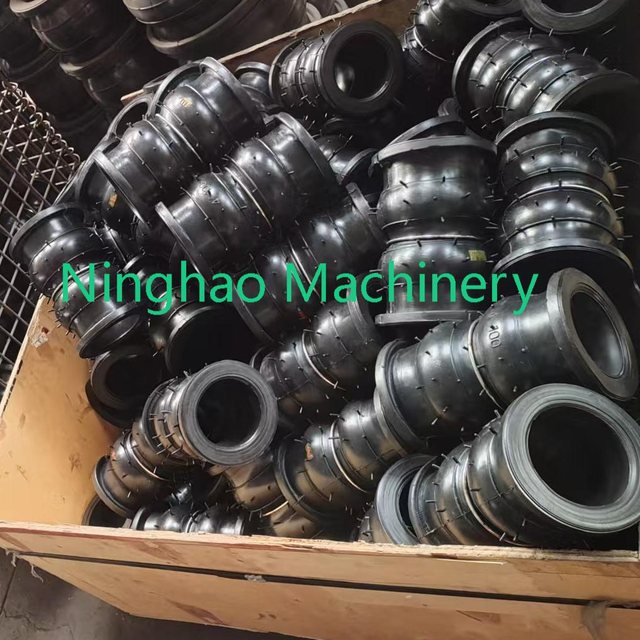

| Double Sphere Rubber Joint | Two flexible spheres for added movement absorption | Superior vibration absorption and noise reduction | Industrial pipelines, machinery, and power stations |

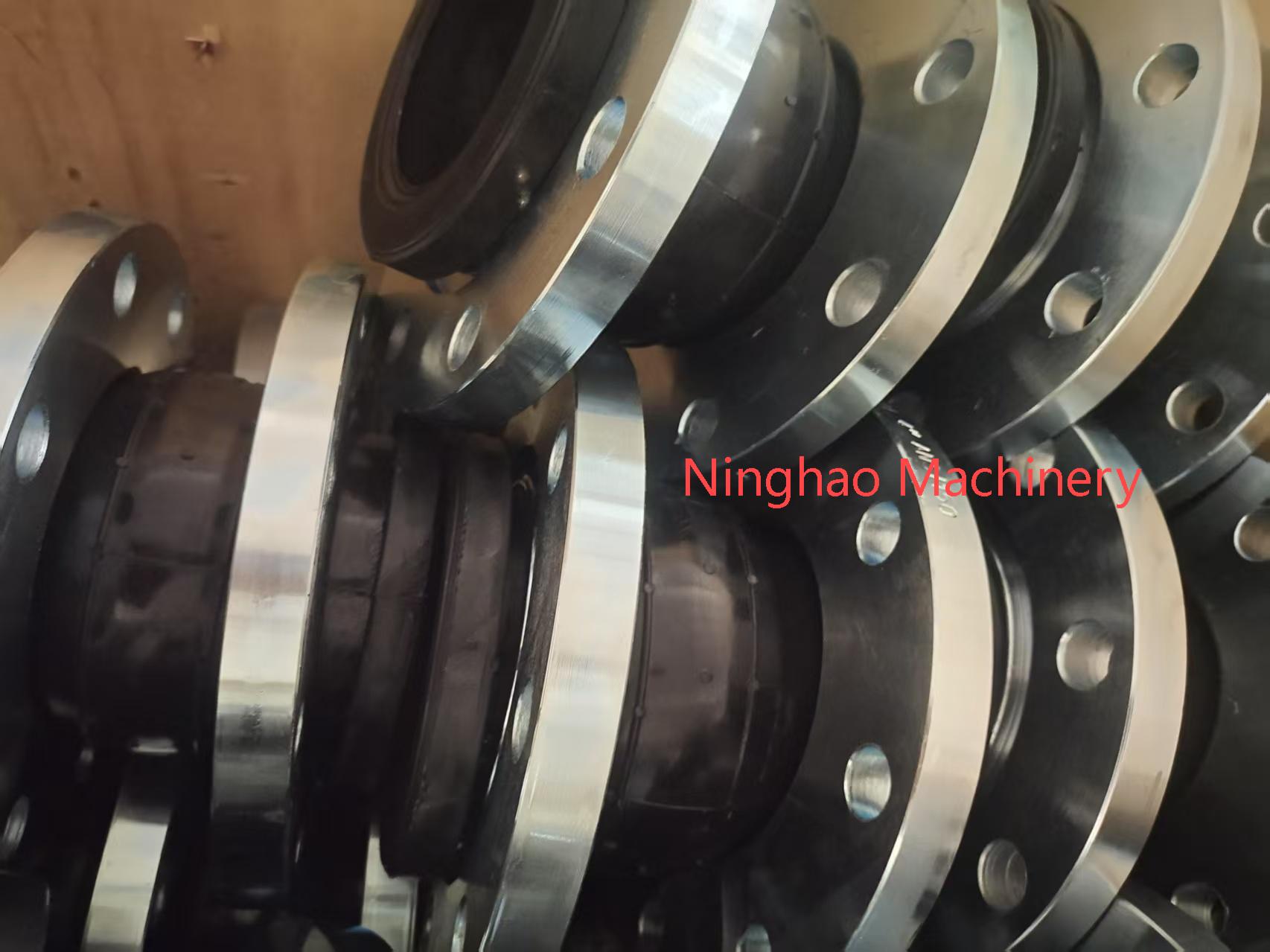

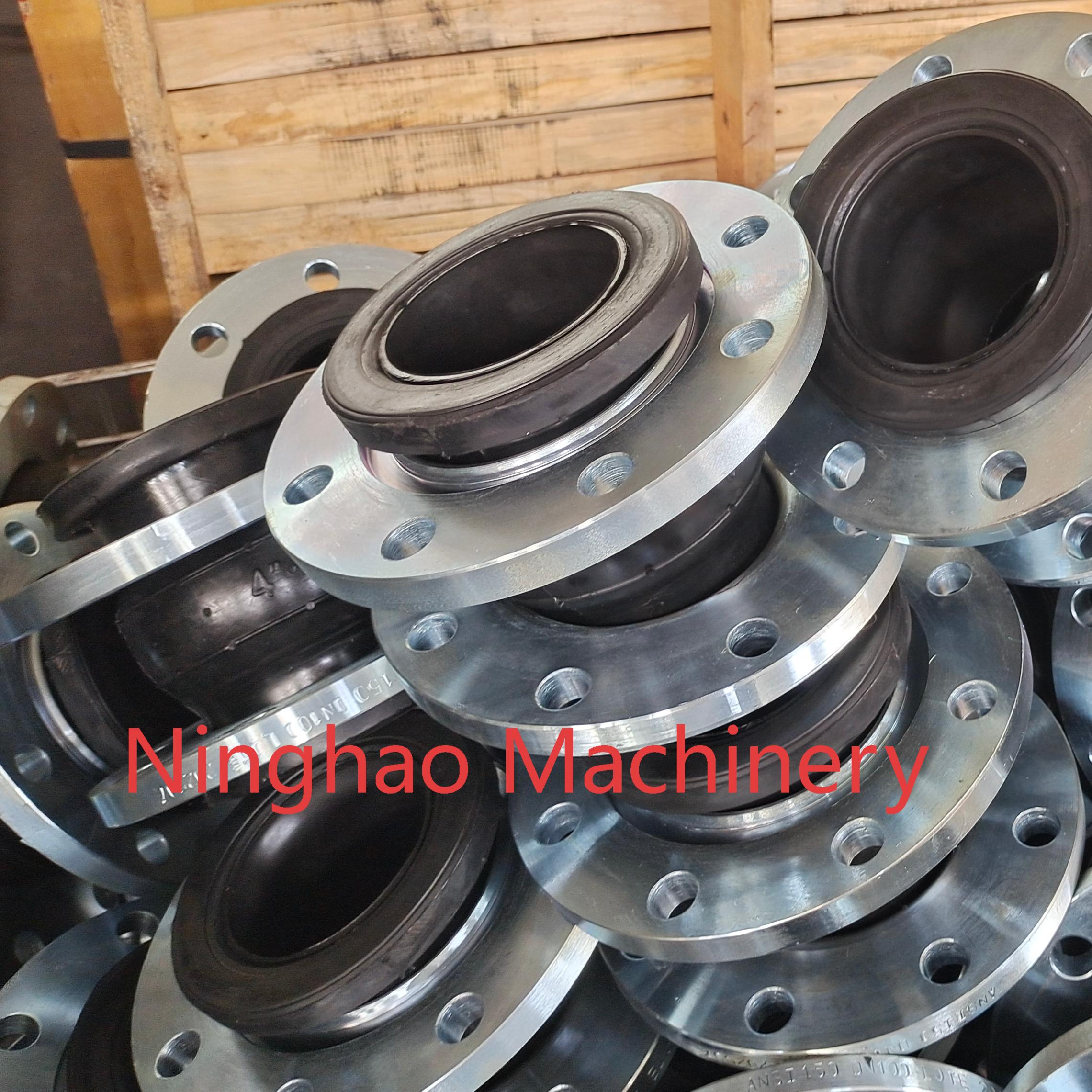

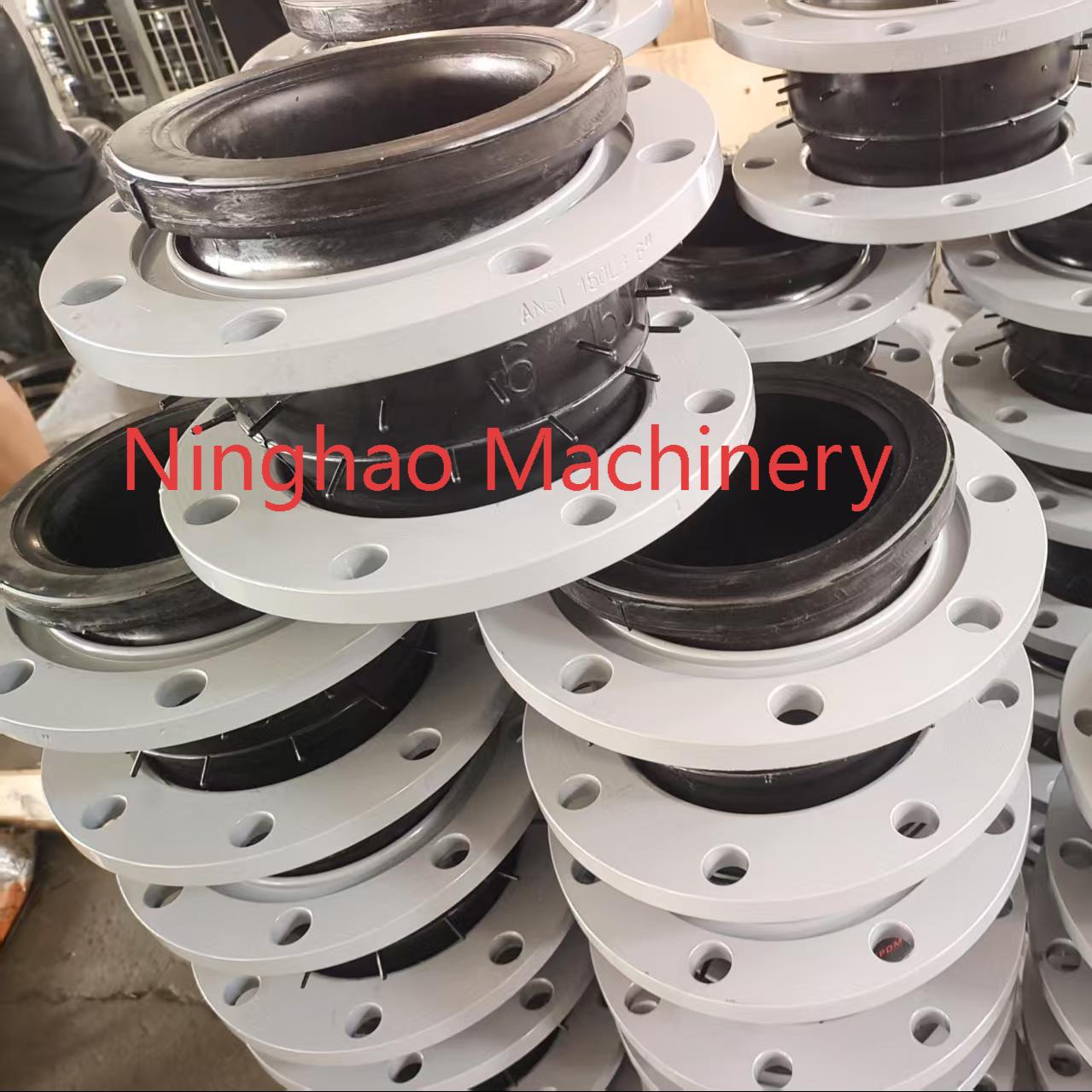

| Flanged Rubber Expansion Joint | Rubber body with metal flanges | High pressure resistance and secure sealing | Petrochemical and high-pressure applications |
Specialized options, such as the NBR NR EPDM VITON Flexible Rubber Piping Expansion Joint, are available for chemical resistance and high-temperature environments, ensuring compatibility with a wide range of industrial systems.
Applications and Compatibility
Rubber expansion joints are widely used across industries for their adaptability and durability. They effectively isolate vibration and noise, making them ideal for systems involving fluid movement or mechanical operation.
HVAC systems: Absorb vibration and thermal expansion in heating and cooling pipelines.
Water systems: Manage pressure and movement in municipal and industrial water lines.
Petrochemical and power generation: Safely handle high-temperature fluids and corrosive media.
Nhflex joints are compatible with materials such as EPDM and NBR, allowing them to perform reliably under varying temperatures and chemical exposures. This makes them suitable for demanding applications including fire protection, water treatment, and machinery connections.
How to Select the Right Rubber Expansion Joint
Choosing the right rubber expansion joint requires considering pressure, temperature, and movement range. Proper selection ensures optimal performance and long service life.
| Selection Factor | Guidance |
| Pressure Rating | Select joints designed to handle the system’s maximum operating pressure. |
| Temperature Range | Use EPDM for hot water and steam; NBR for oil or chemical applications. |
| Movement Requirements | Single sphere for minor movement; double sphere for higher flexibility. |

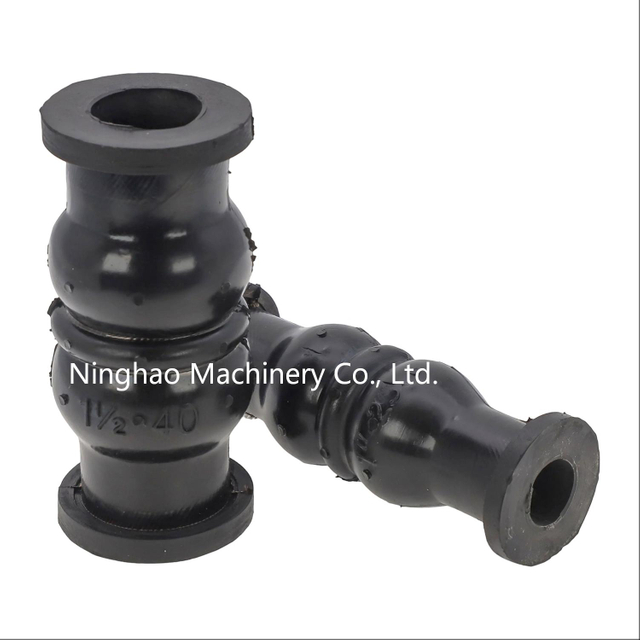

| Connection Type | Choose flanged, threaded, or union connections based on pipe layout. |
Optional accessories like tie rods and control units can limit excessive movement or pressure thrust. Nhflex also provides detailed installation guidance to ensure correct orientation and secure connections.
Why Choose Nhflex as Your Rubber Expansion Joint Supplier
Nhflex is a trusted rubber expansion joint supplier recognized for quality manufacturing, customization, and dedicated service. Our one-stop service covers design consultation, production, and after-sales maintenance, enabling customers to receive complete pipeline connection solutions from a single reliable source.
With strong technical support and a global service network, we deliver both standard and custom-designed rubber expansion joints that meet the specific needs of water, HVAC, petrochemical, and power industries. Contact Nhflex today to request a quote or discuss your project with our expert team.
FAQs About Rubber Expansion Joints
What is the purpose of a rubber expansion joint?
It absorbs vibration, movement, and thermal expansion in piping systems, preventing stress and damage to connected components.
How long does a rubber expansion joint last?
Service life typically ranges from 5 to 10 years, depending on material, operating pressure, and environmental conditions.
Can rubber expansion joints be used for hot water or chemical systems?
Yes. When made with suitable materials like EPDM or NBR, they offer excellent resistance to heat and chemicals.
What maintenance is required?
Regular inspection for cracks, leaks, and flange tightness ensures safe and reliable operation over time.
Does Nhflex offer custom sizes or designs?
Yes. We provide customized rubber expansion joints to meet specific project requirements and installation conditions, ensuring the best fit for your system.
