High-Performance Rubber Expansion Joints & Piping Solutions
What is a Rubber Expansion Joint?
A rubber expansion joint (also known as a flexible rubber compensator) is a specially engineered connector fabricated from natural or synthetic elastomers, reinforced with internal metal wires and high-tensile fabrics. It is installed in piping systems to act as a crucial "shock absorber" for your infrastructure.
Because rigid pipes are highly susceptible to stress, flexible expansion joints are designed to solve four major piping challenges:
Thermal Movement: Safely absorbs axial, lateral, and angular displacement caused by temperature changes (expansion and contraction).
Vibration & Noise Isolation: Drastically reduces mechanical vibration and noise transmission generated by pumps, compressors, and turbines.
Misalignment Correction: Compensates for minor installation misalignments or ground settling, reducing stress on flanges and adjacent equipment.
Stress Relief: Prevents pipe bursting and extends the service life of the entire pipeline network.
Explore Our Rubber Expansion Joint Categories

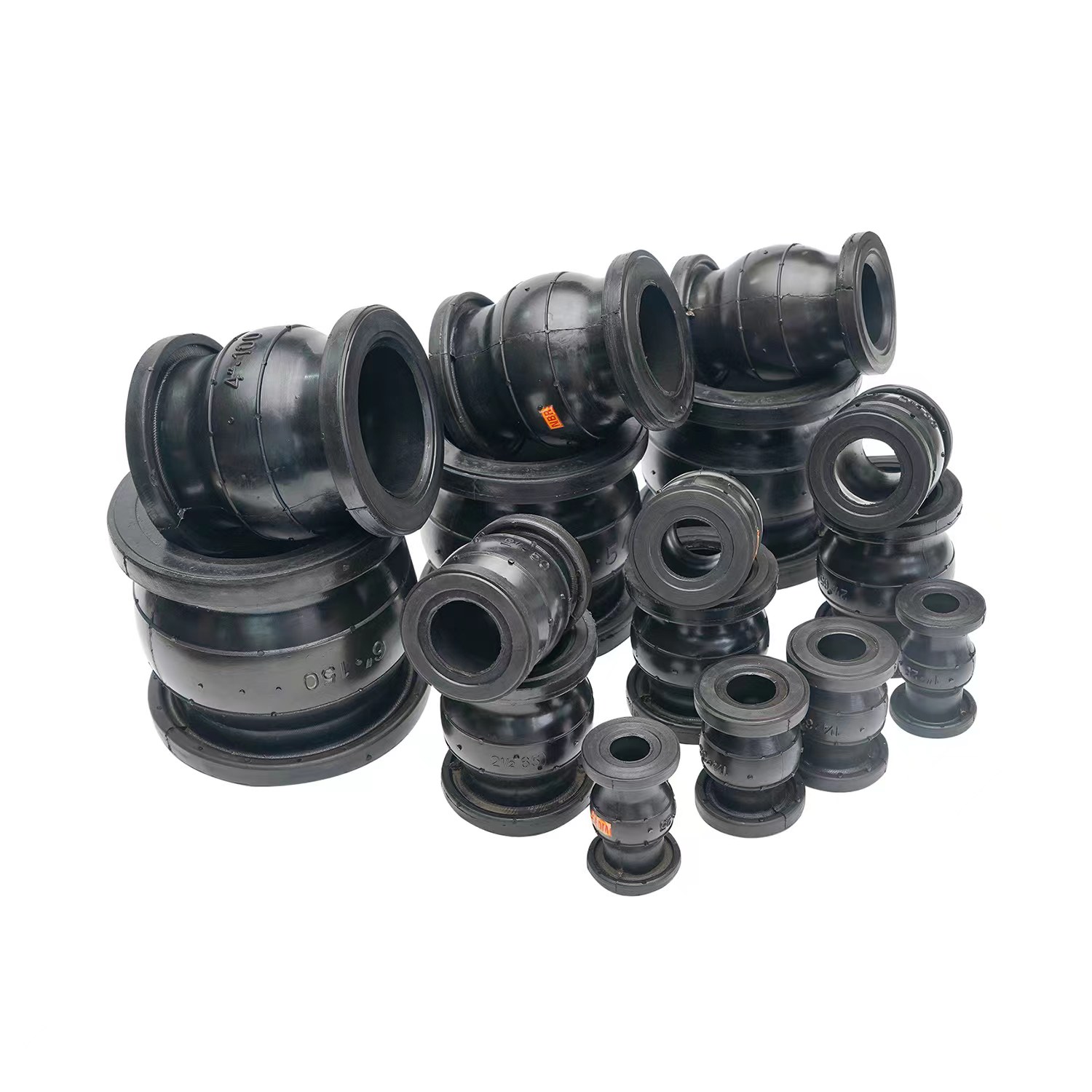

Single Sphere Rubber Expansion Joint: The versatile standard for high-pressure and noise reduction.
Double Sphere Rubber Expansion Joint: Optimized for greater movement absorption and longer face-to-face requirements.
Threaded Union Rubber Expansion Joint: Ideal for smaller diameter pipes where flanged connections are impractical.
Wide Arch / Low Stiffener Joints: Specifically designed for maximum axial and lateral movement with minimal force.
Technical Excellence: The "Why Nhflex" Advantage
Vibration & Noise Absorption
Our specialized rubber carcass acts as a natural dampener, isolating mechanical vibrations from pumps, compressors, and turbines, significantly extending the life of downstream equipment.
Multi-Directional Movement Compensation
Nhflex joints are engineered to neutralize Axial (compression/extension), Lateral (offset), and Angular movements caused by thermal changes or structural settling.
Superior Pressure Resistance
Utilizing advanced vulcanization processes, our joints withstand high working pressures (up to PN16/PN25) with a high safety factor against bursting.
Corrosion & Media Compatibility
From potable water and steam to aggressive chemicals and oils, our wide range of internal liners ensures chemical stability and zero leakage.
Product Deep Dive: Construction & Materials
Tube (Seamless Inner Liner)
Engineered for leak-proof media contact and zero turbulence.
EPDM: Ideal for water, steam, and mild chemicals.
NBR (Nitrile): Excellent resistance to oil and petroleum.
Neoprene / NR: High abrasion resistance for slurries.
Reinforcement Carcass (The Backbone)
Built for shape retention and ultimate pressure safety.
Constructed with multi-ply high-tensile nylon tire cords.
Reinforced with hard steel wire beads to prevent pull-out.
Safely withstands pressure surges up to PN16 / PN25 and vacuum conditions.
Cover (Durable Outer Layer)
Formulated to protect the joint from harsh external environments.
Resists ozone, UV radiation, and extreme weather aging.
Prevents surface cracking and mechanical abrasion.
Extends service life for both indoor and outdoor installations.
End Connections (Flanges & Unions)
Precision-machined for secure connections and easy installation.
Materials: Carbon Steel (Zinc/Epoxy coated) or SS304/SS316.
Standards: Drilled to match ANSI, DIN, JIS, and BS.
Design: Floating flanges allow for easier pipe alignment.
Industrial Applications
HVAC Systems
Our EPDM rubber expansion joints provide vital vibration isolation and noise reduction for chilled and heating water loops in commercial skyscrapers, preventing pipe fatigue in complex HVAC piping systems.
Marine & Shipbuilding
Compact marine rubber expansion joints provide crucial vibration dampening for shipboard ballast and engine cooling systems, featuring exceptional resistance to salt-water corrosion and harsh marine environments.
Quality Assurance: The Nhflex Standard
Rigorous Testing Protocols
Every batch of Nhflex expansion joints undergoes a series of internal quality checks:
Hydrostatic Pressure Testing: Verification of burst and working pressure limits.
Vacuum Testing: Ensuring integrity for suction-side applications.
Rubber Aging & Tensile Tests: Guaranteed performance over a long service life.
Manufacturing Advantage
Our Advantages
Why Choose Us？
As a specialized manufacturer dedicated exclusively to high-performance expansion joints, Nhflex goes beyond standard production to deliver true engineering solutions. Unlike general rubber factories, our technical team focuses entirely on mitigating thermal expansion, mechanical vibration, and pipe misalignment in critical systems.
By combining application-specific elastomers (such as EPDM, NBR, and Neoprene) with advanced multi-ply reinforced structures, we engineer targeted, leak-proof piping connectors tailored to your exact pressure, temperature, and chemical requirements.
From precision material selection to custom design support, we provide the ultimate professional expertise to secure your demanding industrial infrastructure.
