What Is Flexible Rubber Coupling
A flexible rubber coupling is a rubber-based flexible connector used to join two sections of a system while allowing controlled movement and reducing the direct transfer of vibration and shock. Compared with rigid connections, it offers better flexibility and helps compensate for minor misalignment, thermal expansion, and equipment movement.
In many piping and equipment systems, vibration, pressure fluctuation, and structural movement can affect service life and operating reliability. A properly selected flexible rubber coupling helps reduce these effects, protects pumps and related equipment, and improves the overall performance of the system.
Key Features And Benefits Of Flexible Rubber Coupling
Excellent Vibration
and Noise Reduction
The rubber body helps absorb mechanical vibration and isolate noise generated by pumps, compressors, fans, and other equipment. This makes flexible rubber couplings a practical choice for systems that require smoother and quieter operation.
Compensation for Movement and Misalignment
Flexible rubber couplings can accommodate certain axial, lateral, and angular movement within the system. This helps reduce installation stress and supports more stable operation when pipelines or connected equipment shift during service.
Shock Absorption
and Equipment Protection
Sudden pressure changes and mechanical shock can place extra stress on system components. A flexible rubber coupling helps absorb these forces and reduces direct impact on pumps, valves, and pipeline connections.
Material Options for Different Working Conditions
With suitable connection designs and material options, flexible rubber couplings can be integrated into different industrial systems more conveniently. They are widely used where a flexible and reliable connection is preferred over a rigid joint.
Applications of Flexible Rubber Coupling
Flexible rubber couplings are used in many industrial systems where vibration control, flexible connection, and pipeline protection are important. Their adaptability makes them suitable for a wide range of fluid handling and mechanical connection applications.
Structure and Material Options

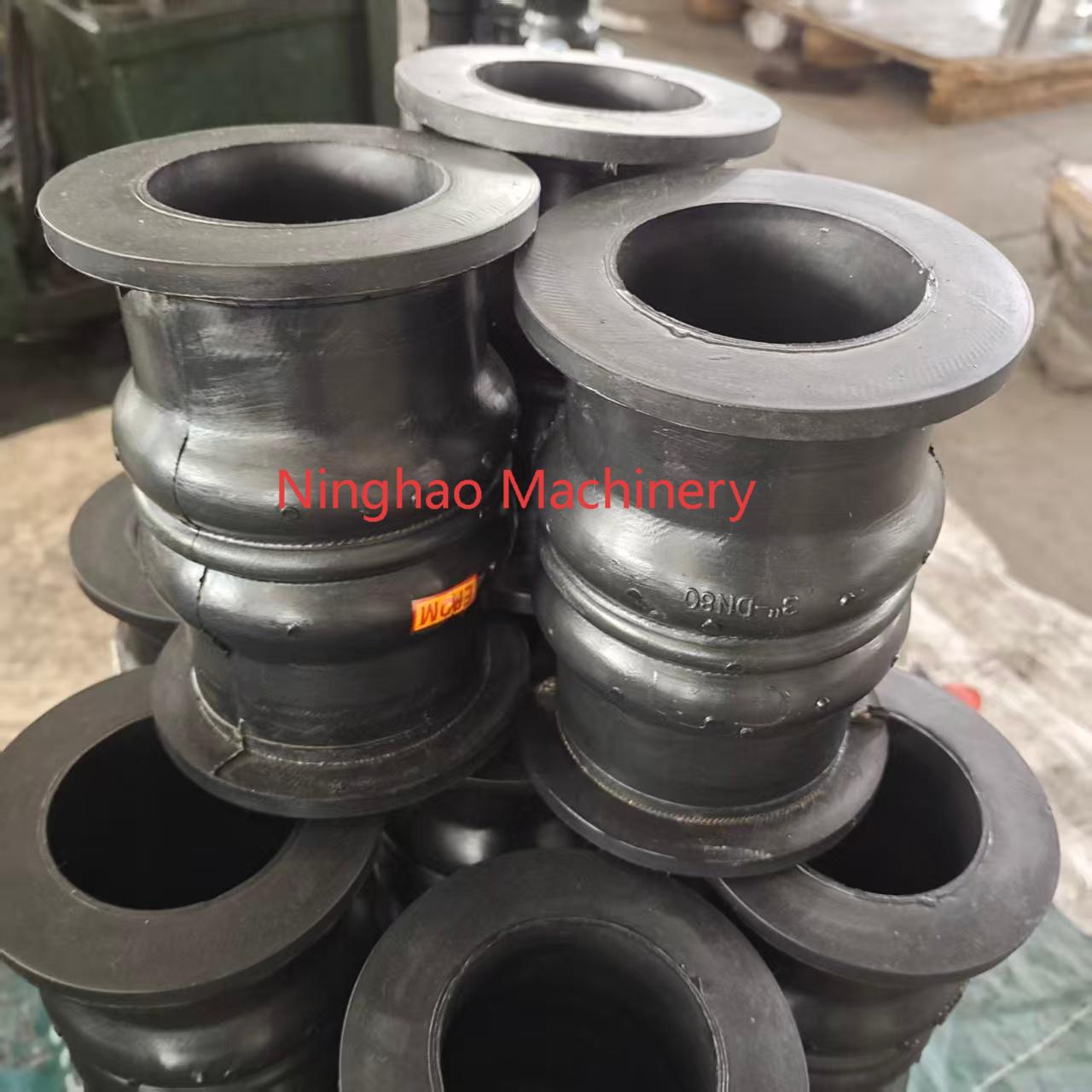

Rubber Body
The rubber body is the core working part of the coupling. It provides flexibility, vibration isolation, and movement compensation. Different rubber compounds can be selected according to the working medium and environmental conditions.
Reinforcement Layer
Reinforcement within the rubber structure helps improve strength and stability during operation. It supports the coupling under working pressure while maintaining the flexibility required for movement absorption.
End Connections
Flexible rubber couplings are available with different connection styles such as flanged or threaded ends. The connection type should be selected according to the installation method and system design.
Material Selection
Material selection should be based on the service medium, operating temperature, corrosion conditions, and pressure requirements. Proper selection helps extend service life and ensures more reliable operation.
Details Of Flexible Rubber Coupling
| SIZE | Movement Capabilty | ||||||||||||||||||||
| DN | Comp. | Ext, | Lateral | Angular | |||||||||||||||||
| (mm) | (mm) | (mm) | (mm) | (degree) | |||||||||||||||||
| 20 | 22 | 6 | 22 | 45 | |||||||||||||||||
| 25 | 22 | 6 | 22 | 45 | |||||||||||||||||
| 32 | 22 | 6 | 22 | 45 | |||||||||||||||||
| 40 | 22 | 6 | 22 | 45 | |||||||||||||||||
| 50 | 22 | 6 | 22 | 45 | |||||||||||||||||
| 65 | 24 | 6 | 24 | 45 | |||||||||||||||||
| 80 | 24 | 6 | 24 | 45 | |||||||||||||||||
Flexible Rubber Coupling Services
7*24 Hours Service
NINGHAO is always here to support your bearing business. Whenever you need help or consultation, our professional team will be on standby to provide timely and effective solutions.
Cost Savings
We understand the importance of cost control for businesses. Therefore, NINGHAO strives to offer more competitive prices, helping you reduce costs while boosting your business. Choosing NINGHAO means choosing a cost-effective partner.
24 Hours Rapid Delivery
FAQs
Contact Us

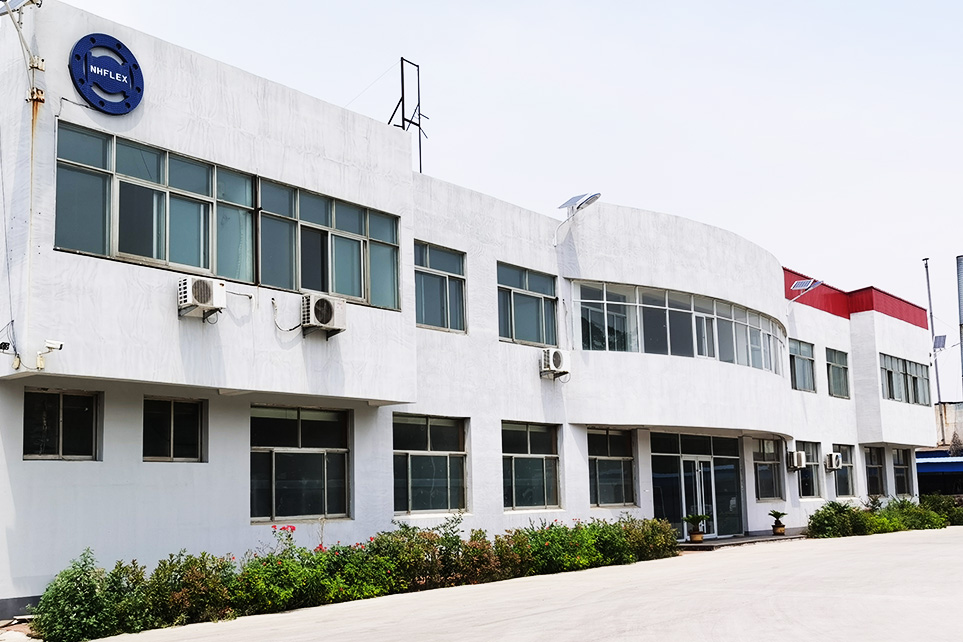

Our company is a leading enterprise in the manufacture of rubber expansion joints.Our products include rubber expansion joints and metal pipe fittings, widely used in the chemical, shipbuilding, power generation, steel, and wastewater treatment industries, solving problems related to pipeline thermal expansion, vibration impact, and corrosion wear.
