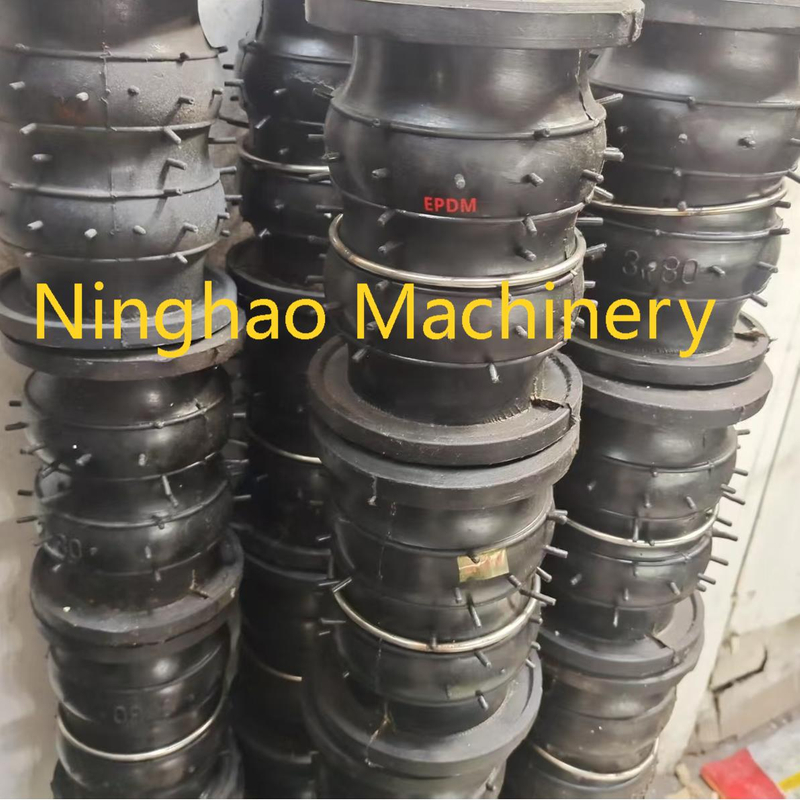

NHFLEX-B
Ninghao
The NHFLEX-B Type Flanged Double Sphere Flexible Rubber Expansion Joint is engineered to provide reliable movement absorption and vibration isolation in demanding piping networks. Constructed from industrial-grade rubber compounds, this pipeline connector serves as a critical component for compensating for misalignment and reducing mechanical stress. The double-sphere configuration is specifically designed to offer greater movement capabilities compared to single-sphere alternatives, ensuring stable operation. By utilizing premium materials, this rubber compensator delivers dependable resistance to corrosion, chemical exposure, and extreme temperature variations.
The defining feature of this expansion joint is its dual-sphere design, which provides enhanced flexibility and resilience. This structural advantage allows the joint to accommodate axial compression, axial extension, lateral deflection, and angular movement with precision. The dual-sphere geometry ensures balanced stress distribution across the rubber body, significantly reducing the risk of material fatigue over long-term operation. Furthermore, the physical design inherently dampens mechanical vibration and acoustic noise, contributing to a more stable physical infrastructure.
The structural integrity of the NHFLEX-B Type expansion joint is reinforced by a multi-layered construction. It features a durable inner rubber layer designed for direct media contact, a nylon-reinforced fabric mid-section that provides structural support under pressure, and a weather-resistant outer rubber layer that protects against environmental degradation. Hardened steel wire is integrated into the bead area to ensure a secure fit with the floating flanges. This meticulous construction process ensures that the joint can withstand designated working pressures while maintaining its flexible properties.
1. Exceptional Corrosion Resistance: Manufactured from carefully selected rubber compounds (such as EPDM, NBR, or FKM), these expansion joints provide strong resistance to corrosive media. The material composition ensures compatibility with various fluids, including water, oils, and mild chemicals, helping to reduce replacement frequency and lower long-term procurement costs.
2. Enhanced Flexibility for System Protection: The highly elastic double-sphere design enables the joint to absorb multi-directional stresses caused by mechanical forces, equipment vibrations, and pipe shifting. This physical flexibility effectively maintains the structural integrity of the pipeline system by absorbing mechanical stress before it transfers to adjacent rigid connections.
3. Vibration Absorption and Noise Reduction: By acting as a flexible physical barrier, the rubber compensator limits the transmission of mechanical vibration and sound waves through the piping network. This isolation capability is a direct result of the rubber's dampening properties combined with the dual-sphere geometry.
4. Streamlined Installation and Minimal Maintenance: Featuring a practical flanged connection design, these double sphere joints allow for straightforward alignment and installation. The durable construction requires minimal ongoing servicing, which directly contributes to lower maintenance demands and reduced operational disruptions.
Max.Working Pressure | 2.5Mpa | |||||
Operating Temperature | -20ºC-100ºC | |||||
Vacuum KPa (mmHg) | 44.9(350) | |||||
Applicable Media | Sea Water, Drinking Water, etc. | |||||
Flange Standard | DIN, JIS, GOST, ANSI, etc. | |||||
Item | Part | Material |
1 | Body Outer Layer | NR, EPDM, NBR, FKM |
2 | Body lnner Layer | NR, EPDM, NBR, FKM |
3 | Reinforced Fabric | Nylon |
4 | Wire | Steel |
5 | Flange | Zinc Plated/Sprayed CS, SS304, SS316, Cast Steel |
SIZE | LENGTH | Movemont Capablllty | |||||||
DN | F/F | Comp. | Ext. | Lateral | Angular | ||||
(mm) | (mm) | (mm) | (mm) | (mm) | (degree) | ||||
40 | 175 | 10 | 20 | 20 | 30 | ||||
50 | 175 | 10 | 20 | 20 | 30 | ||||
65 | 175 | 10 | 20 | 20 | 30 | ||||
80 | 175 | 10 | 20 | 20 | 30 | ||||
100 | 225 | 15 | 30 | 25 | 30 | ||||
125 | 225 | 15 | 30 | 25 | 30 | ||||
150 | 225 | 15 | 30 | 25 | 30 | ||||
200 | 325 | 20 | 40 | 30 | 30 | ||||
250 | 325 | 20 | 40 | 30 | 30 | ||||
300 | 325 | 20 | 40 | 30 | 30 | ||||
350 | 350 | 20 | 40 | 30 | 30 | ||||
400 | 350 | 20 | 40 | 30 | 30 | ||||
450 | 350 | 25 | 45 | 30 | 30 | ||||
500 | 350 | 25 | 45 | 30 | 30 | ||||
600 | 350 | 25 | 45 | 30 | 30 | ||||
* Control units must be used when piping is not properly anchored.
The rated pressure can be above 2.5MPa, but products will only be sold with control units.
Pressure rating is based on 30ºC operating temperature. The pressure rating is reduced at higher temperatures.
Rated pressure in the above table is the maximum "working pressure". Test pressure is 1.5 times "working pressure", Burst pressure is 4 times "work pressure".
Flexible Double Ball Rubber Expansion Joints are critical components designed to solve complex engineering challenges in industrial pipeline networks. Whether deployed in water treatment facilities, HVAC systems, chemical processing plants, or power generation stations, these joints play an indispensable role in maintaining system integrity. By acting as a flexible bridge between rigid pipe sections, they address common operational issues such as temperature fluctuations, mechanical vibrations, and structural shifts, ultimately extending the lifespan of the entire pipeline infrastructure and minimizing costly downtime for facility operators.
In environments where pipelines are exposed to fluctuating internal fluid temperatures or varying external weather conditions, thermal expansion and contraction are inevitable. The rubber expansion joint is specifically engineered to compensate for these continuous thermal shifts. As pipes expand under high heat or contract during cooling phases, the flexible double-sphere design safely absorbs these dimensional changes. This critical function prevents the buildup of excessive thermal stress on rigid pipes, flanges, and structural supports, significantly reducing the risk of pipe buckling, structural fatigue, or catastrophic failure. For procurement engineers, integrating these joints means safeguarding the pipeline system against temperature-induced damage and ensuring long-term operational stability.
Industrial pipelines are frequently subjected to severe mechanical vibrations and sudden hydraulic impacts, often generated by operating pumps, compressors, and control valves. The double ball rubber expansion joint serves as a highly effective vibration absorber. Its resilient rubber construction isolates and dampens mechanical oscillations, preventing them from traveling down the pipeline network. Furthermore, this dampening effect drastically reduces operational noise transmission, creating a safer and more compliant working environment for plant personnel. By mitigating the continuous stress caused by vibrations and hydraulic shocks, these joints protect sensitive adjacent equipment from premature wear and mechanical damage.
Achieving exact alignment during the installation of extensive piping systems is often a practical challenge. Additionally, ground settlement, structural shifting, and operational loads can cause pipes to move over time. The double-sphere configuration of these rubber expansion joints provides exceptional multi-directional flexibility, allowing them to effectively compensate for axial, lateral, and angular movements. This capability is invaluable during both the initial setup and ongoing operation, as it easily accommodates minor misalignments without forcing the pipes into unnatural stress positions. By accommodating these structural shifts, the joints ensure the continuous and proper functioning of the pipeline system, reducing installation time and lowering the risk of joint stress fractures.
Maintaining a secure, leak-free environment is a top priority for any fluid handling system. The Flexible Double Ball Rubber Expansion Joint delivers dependable sealing performance across various industrial applications. Thanks to its durable construction and precise mating capabilities, it creates a highly reliable seal that prevents fluid or gas leakage, even under fluctuating pressure conditions. This dependable leak prevention is essential for maintaining process efficiency, preventing environmental contamination, and ensuring the overall safe operation of the facility. For facility managers and buyers, investing in industrial-grade rubber expansion joints translates to reduced maintenance costs, fewer emergency repairs, and enhanced workplace safety.
By addressing thermal changes, mechanical vibrations, structural movements, and sealing requirements, the Flexible Double Ball Rubber Expansion Joint proves to be an essential investment for modern industrial pipelines. Its deployment helps engineers and facility operators reduce long-term maintenance expenses, mitigate the risks associated with rigid pipe failures, and ensure continuous, reliable fluid transportation across demanding operational environments.
Established on November 19, 2010, Ningjin NINGHAO Machinery Co., Ltd. has grown into a highly reliable manufacturer and supplier in the pipeline equipment industry. Strategically located at No. 2 Taishan Road, Economic and Technological Development Zone, Ningjin County, Dezhou City, Shandong Province, our modern manufacturing facility spans an impressive 120 acres. With a dedicated workforce of over 80 skilled employees and technical professionals, we have built a solid foundation for consistent production capacity and stringent quality control. Our factory is fully equipped with a comprehensive range of advanced production machinery and precise inspection equipment, ensuring that every batch of products meets the demanding requirements of industrial pipeline systems worldwide. We are committed to providing dependable pipeline connection solutions that help our clients reduce procurement risks and ensure long-term operational stability.
At Ningjin NINGHAO Machinery Co., Ltd., we specialize in the design, manufacturing, and global distribution of a diverse range of rubber expansion joints. Our comprehensive product portfolio includes single ball flexible rubber expansion joints, double sphere rubber expansion joints, rubber-metal pipe connectors, thread-connection rubber expansion joints, and customized tie rods sets for rubber expansion joints. To accommodate various industrial environments and fluid types, we utilize premium raw materials, including EPDM, NBR, NR, and FR rubber.
Furthermore, we offer extensive customization options for flange connections to ensure reliable integration into your specific pipeline infrastructure. Our flange standard capabilities cover ANSI150, DIN, and JIS10K, while available flange materials include carbon steel, stainless steel, and casting steel. By maintaining strict oversight over material selection and manufacturing processes, we deliver products that offer exceptional durability and adaptability for diverse engineering projects.
With years of extensive experience in international trade, our company has established a practical global distribution network and cultivated enduring business relationships with clients across the globe. We have successfully exported our pipeline solutions to a wide array of countries, with our main supply markets currently including Spain, Italy, the Netherlands, Austria, France, Vietnam, India, and many other regions. Our commitment to consistent product quality, timely delivery, and responsive customer support has earned us high praise and trust from our international customers. We understand the complexities of global procurement and strive to be a dependable partner who adds tangible value to your supply chain. We look forward to the opportunity to collaborate with you sincerely and support your project requirements with our professional expertise.
