Double Sphere Rubber Expansion Joint for HVAC Chilled Water Systems

Standard Specification:
Max.Working Pressure 2.5Mpa
Operating Temperature -20ºC-100ºC
Vacuum KPa (mmHg) 44.9(350)
Applicable Media Sea Water, Drinking Water, etc.
Flange Standard DIN, JIS, GOST, ANSI, etc.
Component Parts:
Item Part Material
1 Body Outer Layer NR, EPDM, NBR, FKM
2 Body lnner Layer NR, EPDM, NBR, FKM
3 Reinforced Fabric Nylon
4 Wire Steel
5 Flange Zinc Plated/Sprayed CS, SS304, SS316, Cast Steel
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • NHFLEX-B

  • Ninghao

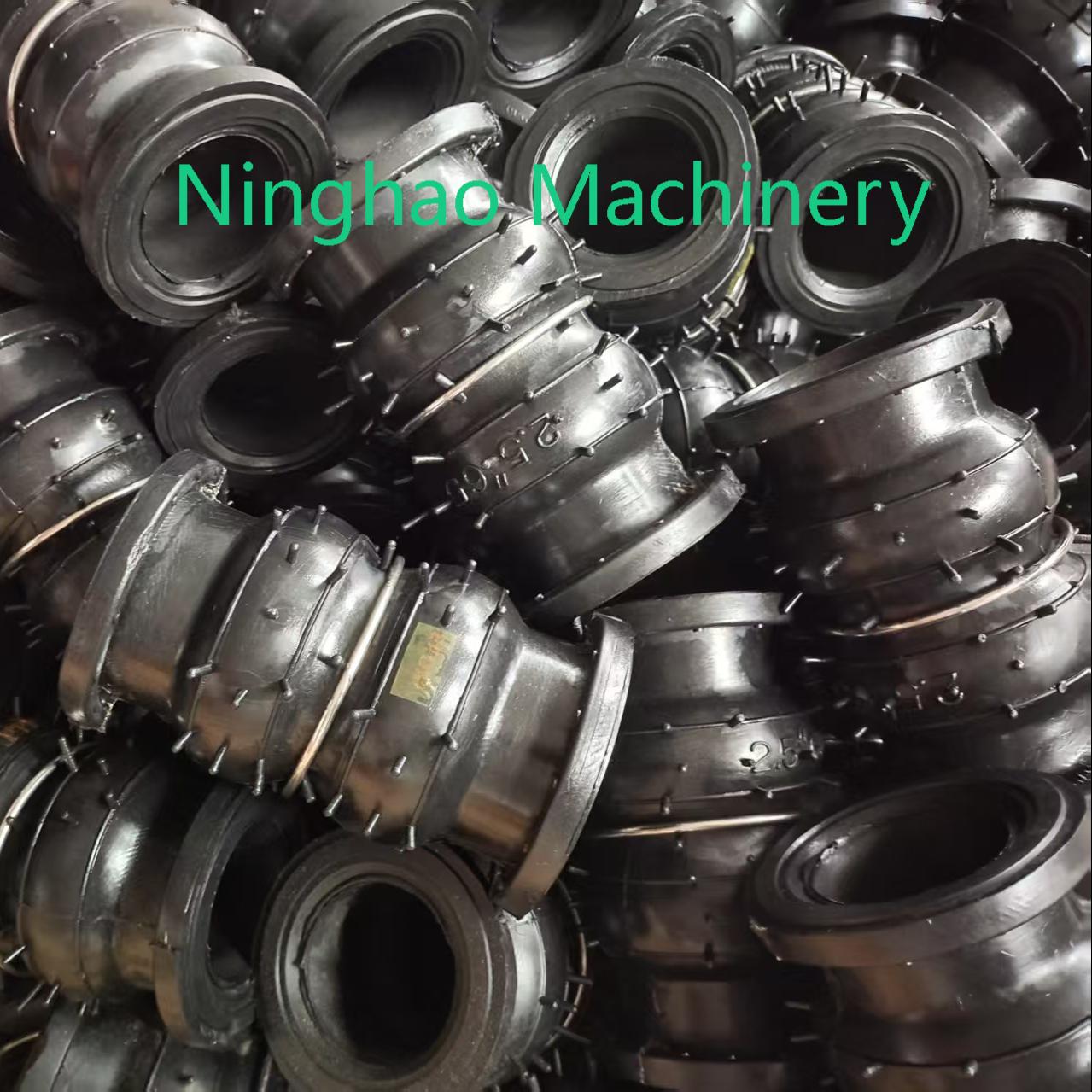

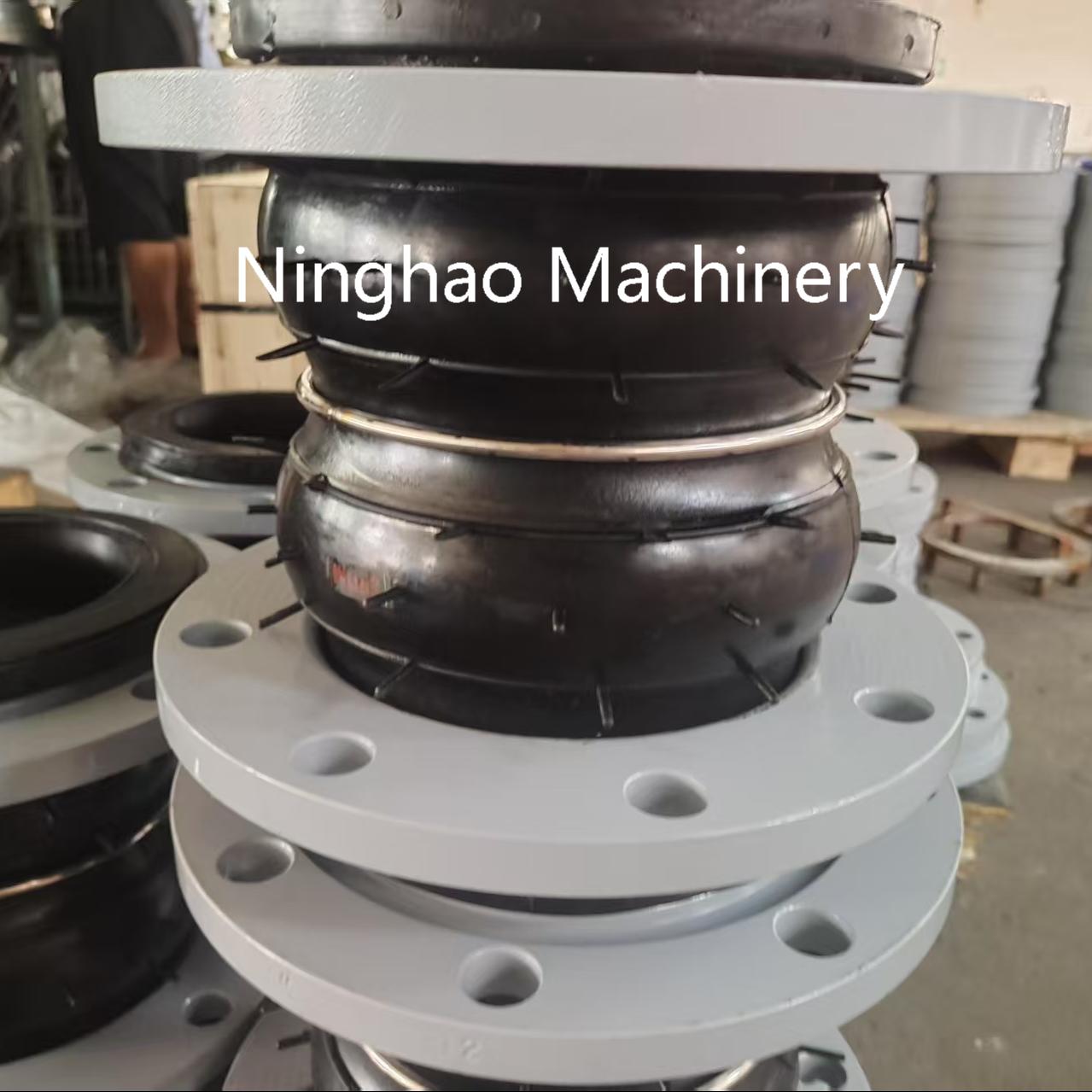

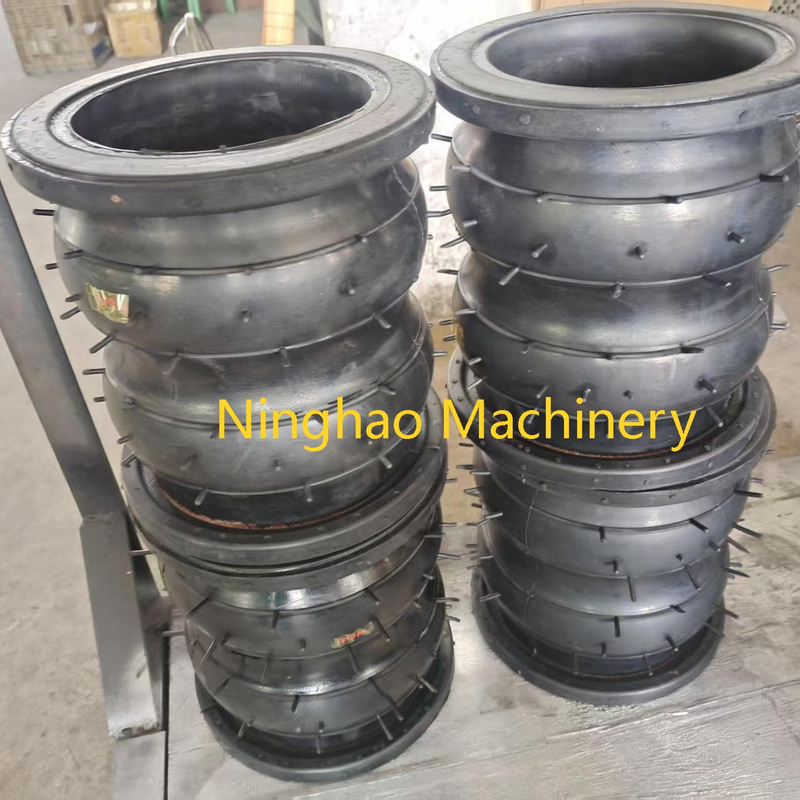

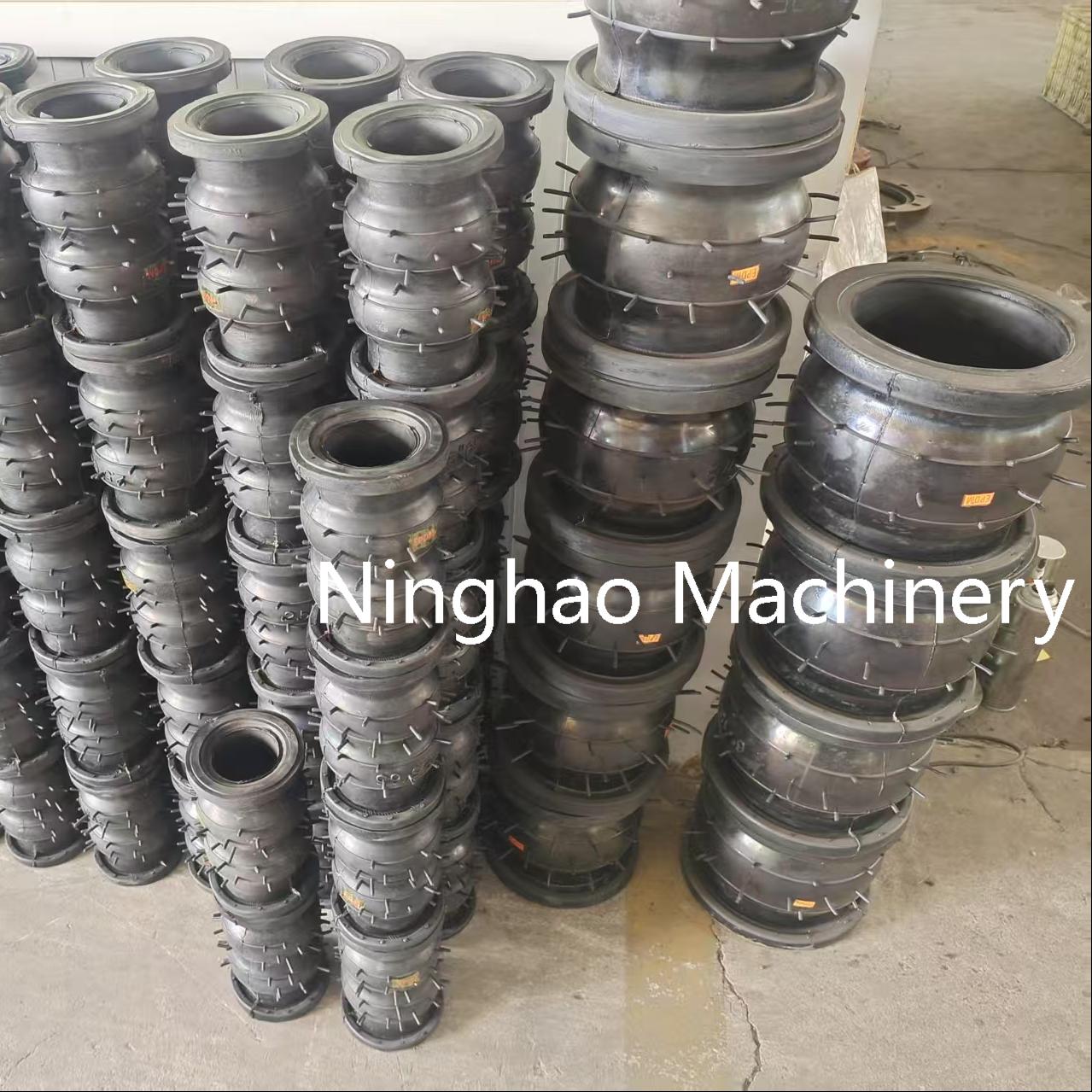

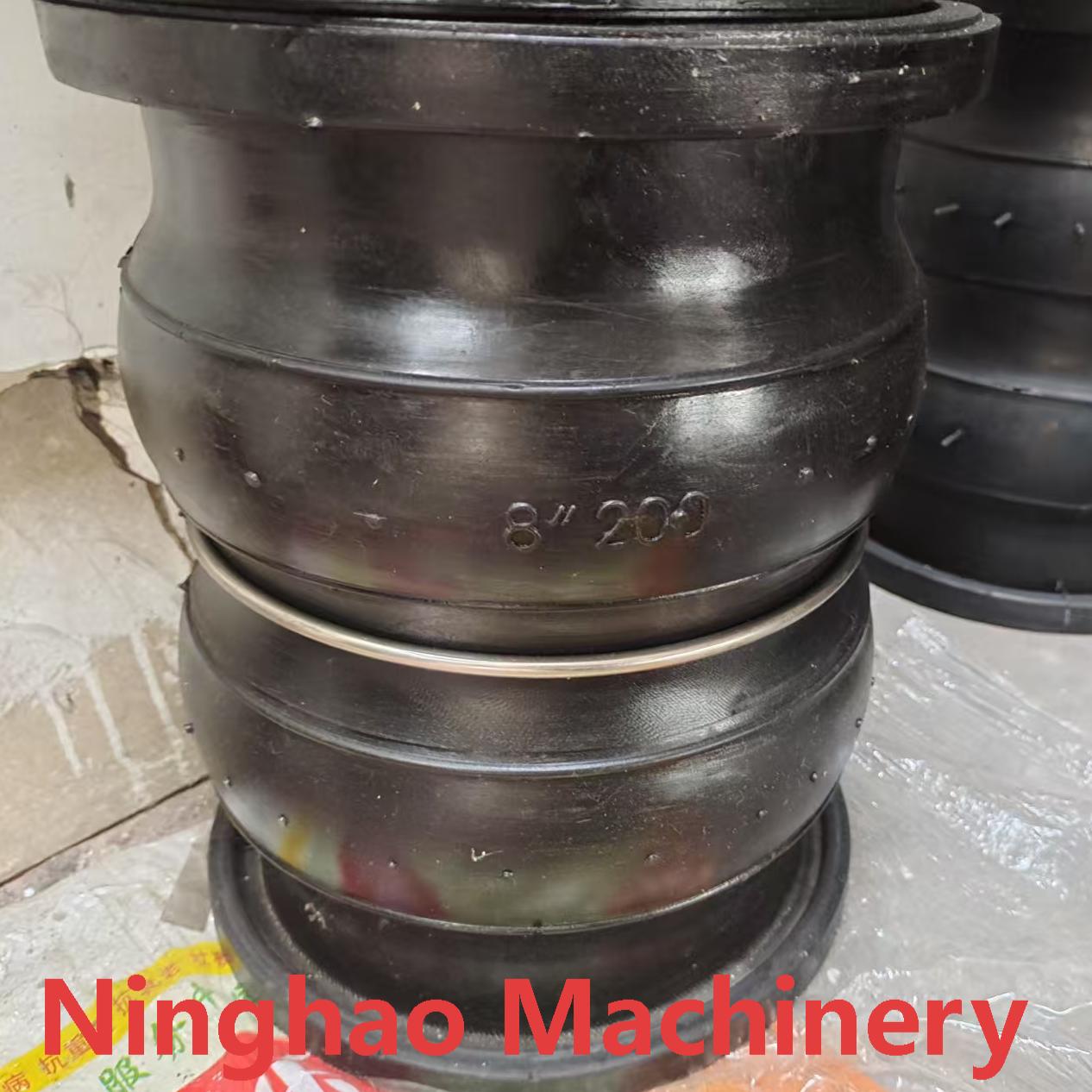

NHFLEX-B TYPE Flanged Double Sphere Flexible Rubber Expansion Joints Pipe Connector Rubber Compensator

Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber
Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber
Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber

The NHFLEX-B Type Double Sphere Rubber Expansion Joint is a highly reliable and versatile pipeline component engineered specifically for modern piping networks, including HVAC chilled water systems. As a critical fluid transmission connector, its primary function is to absorb thermal expansion, compensate for pipe misalignment, and significantly reduce mechanical vibration. Constructed from carefully selected elastomeric materials, this rubber compensator ensures long-term operational stability and minimizes the risk of pipeline fatigue, offering a dependable solution for complex industrial and commercial engineering projects.

The unique double-sphere configuration provides enhanced flexibility compared to standard single-sphere alternatives. This advanced structural design allows the joint to accommodate greater axial compression, extension, lateral deflection, and angular movement with ease. By distributing mechanical stress more evenly across the dual spheres, the expansion joint effectively prevents localized wear and tear, thereby extending the service life of the entire piping system while maintaining optimal fluid flow and system integrity.

Core Characteristics & Procurement Benefits

  • Exceptional Corrosion Resistance: Crafted from premium rubber compounds, the inner and outer layers deliver strong resistance against water, mild chemicals, and various industrial media. This material integrity ensures safe operation and prevents premature degradation in demanding environments.

  • Superior Flexibility for System Protection: The inherent elasticity of the double-sphere body allows it to absorb dynamic stresses caused by temperature fluctuations, pump operations, and ground settling. This dynamic compensation safeguards rigid pipes and adjacent equipment from structural damage.

  • Vibration Dampening and Noise Reduction: By acting as a flexible barrier between metal pipes, the rubber expansion joint interrupts the transmission of structural noise and mechanical vibrations generated by pumps or chillers, contributing to a quieter and more stable operating facility.

  • Streamlined Installation and Minimal Maintenance: Designed with standard flanged connections, these joints facilitate straightforward alignment and bolting. Their durable construction requires little ongoing servicing, directly reducing labor costs and system downtime for facility managers and procurement teams.

Product Parameters

Standard Specification

Max.Working Pressure

2.5Mpa

Operating Temperature

-20ºC-100ºC

Vacuum KPa (mmHg)

44.9(350)

Applicable Media

Sea Water, Drinking Water, etc.

Flange Standard

DIN, JIS, GOST, ANSI, etc.

Component Parts

Item

Part

Material

1

Body Outer Layer

NR, EPDM, NBR, FKM

2

Body lnner Layer

NR, EPDM, NBR, FKM

3

Reinforced Fabric

Nylon

4

Wire

Steel

5

Flange

Zinc Plated/Sprayed CS, SS304, SS316, Cast Steel

NHFLEX-B TYPE Rubber Joint Size Chart

  SIZE

LENGTH

Movemont Capablllty

DN

F/F

Comp.

Ext.

Lateral

Angular

  (mm)

(mm)

(mm)

(mm)

(mm)

(degree)

  40

175

10

20

20

30

  50

175

10

20

20

30

  65

175

10

20

20

30

  80

175

10

20

20

30

  100

225

15

30

25

30

  125

225

15

30

25

30

  150

225

15

30

25

30

  200

325

20

40

30

30

  250

325

20

40

30

30

  300

325

20

40

30

30

  350

350

20

40

30

30

  400

350

20

40

30

30

  450

350

25

45

30

30

  500

350

25

45

30

30

  600

350

25

45

30

30

* Control units must be used when piping is not properly anchored.
* The rated pressure can be above 2.5MPa, but products will only be sold with control units.
* Pressure rating is based on 30ºC operating temperature. The pressure rating is reduced at higher temperatures.
* Rated pressure in the above table is the maximum "working pressure". Test pressure is 1.5 times "working pressure", Burst pressure is 4 times "work pressure".

Main Products

Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber

Engineering Applications and Value in Pipeline Systems

The stable operation of HVAC chilled water systems and industrial pipeline networks relies heavily on effective stress management. Double sphere rubber expansion joints are engineered to address critical engineering pain points, offering a reliable solution for protecting rigid piping infrastructure. By mitigating mechanical stress and accommodating environmental changes, these joints support the service life of the entire pipeline system and reduce the risk of unexpected maintenance.

1. Compensating for Thermal Expansion and Contraction

Pipeline systems frequently encounter temperature variations due to seasonal environmental changes or fluctuations in the temperature of the conveyed fluids, such as chilled or heated water. These temperature shifts naturally cause the pipe materials to expand or contract. Without proper compensation, this thermal movement generates excessive axial stress, which can lead to pipe buckling, flange damage, or structural failure. Rubber expansion joints act as flexible buffers. They effectively compensate for thermal expansion and contraction caused by temperature variations in the pipeline. They prevent excessive stress on the pipeline system due to temperature changes, thereby protecting the pipes from damage and supporting long-term operational stability.

2. Absorbing Vibrations and Impacts

In commercial HVAC setups and industrial plants, equipment such as water pumps, chillers, and compressors generate continuous mechanical vibrations. If transmitted through rigid piping, these vibrations can cause metal fatigue, loosen connections, and create disruptive noise levels throughout the facility. Double sphere rubber expansion joints are strategically installed adjacent to these vibration sources to act as dynamic dampeners. The inherent elasticity of the rubber material helps absorb stresses caused by vibrations and impacts in the pipeline system, significantly reducing the transmission of vibrations and noise. This function helps protect the pipeline and related equipment from fatigue-related damage, contributing to a quieter and safer working environment.

3. Compensating for Pipe Movements

During the initial installation phase and throughout the operational lifespan of a facility, pipeline systems may experience certain degrees of pipe movement. This can be caused by ground settlement, structural shifts of the building, or slight misalignments during assembly. Rigid pipes cannot easily accommodate these shifts without risking joint failure. Rubber expansion joints provide the necessary flexibility to compensate for these movements, including axial compression, axial extension, lateral deflection, and angular movement. By forgiving these inevitable structural shifts and installation tolerances, the expansion joints compensate for these movements, ensuring the proper functioning of the pipeline system and reducing the need for costly pipe modifications.

4. Leak Prevention and System Safety

Maintaining a secure, leak-free environment is paramount for the efficiency and safety of HVAC chilled water systems. Fluid loss not only reduces cooling efficiency but can also cause water damage to surrounding infrastructure. Rubber expansion joints provide dependable sealing performance in pipeline systems. The precision-engineered flange connections and the resilient nature of the rubber body ensure a tight, secure seal even under fluctuating pressure conditions. By maintaining this reliable barrier, the joints reduce the risk of leaks and ensure the safe operation of the pipelines. This leak prevention minimizes maintenance downtime, conserves resources, and provides facility managers with confidence regarding system reliability.

Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber

Company Profile

About Ningjin NINGHAO Machinery Co.,Ltd.

Established on November 19, 2010, Ningjin NINGHAO Machinery Co.,Ltd. operates as a dedicated manufacturer of pipeline expansion solutions. Located strategically at No.2 Taishan Road, Economic and Technological Development Zone, Ningjin County, Dezhou City, Shandong Province, our facility spans an extensive area of 120 acres. Supported by a skilled workforce of over 80 employees, we maintain a complete production line equipped with advanced manufacturing machinery and rigorous inspection equipment. This infrastructure allows us to control every stage of production, ensuring consistent output and reliable delivery schedules for large-scale procurement needs.

Manufacturing Capabilities & Product Range

We specialize in the engineering and production of various flexible pipe connectors designed for demanding industrial environments. Our core product portfolio includes single ball flexible rubber expansion joints, double sphere rubber expansion joints, rubber-metal pipe connectors, thread-connection rubber expansion joints, and dedicated tie rod sets.

To meet diverse project specifications, we process a wide range of premium materials. Our primary rubber compounds include EPDM, NBR, NR, and FR, allowing for tailored chemical and temperature resistance. Furthermore, we manufacture flanges complying with major international standards such as ANSI150, DIN, and JIS10K. Flange material options encompass carbon steel, stainless steel, and casting steel, providing the necessary structural integrity for different pressure ratings.

Global Export & Trade Experience

With years of dedicated export experience, Ningjin NINGHAO Machinery Co.,Ltd. has established stable supply chain relationships worldwide. We currently serve a broad network of international markets, with primary export destinations including Spain, Italy, the Netherlands, Austria, France, Vietnam, and India. Our commitment to reliable manufacturing and consistent communication has earned the trust of clients across multiple continents. We are fully equipped to handle international orders and look forward to establishing long-term, mutually beneficial cooperation with global procurement teams.

Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber
Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber

Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber
Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber

Packaging & Shipping

Proper packaging is critical to maintaining the structural integrity of rubber expansion joints during international transit. We implement standard export packaging protocols to protect flanges from mechanical damage and shield rubber components from environmental exposure. Each shipment is carefully secured in durable wooden cases or pallets, depending on order volume and transportation requirements. Our logistics team coordinates efficiently with freight forwarders to ensure timely dispatch and secure delivery to your designated port or facility.

Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber

Certifications

Quality assurance forms the foundation of our manufacturing process. Our facility operates under strict quality management systems, ensuring that every double sphere rubber expansion joint meets specified dimensional tolerances and performance criteria before leaving the factory. The accompanying certifications reflect our ongoing commitment to standardized production, material traceability, and consistent compliance with international pipeline safety requirements.

Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber
