High Duty EPDM Rubber Metal Pipe Connector

Product Overview

As a leading manufacturer and supplier of industrial pipeline solutions, we present the High Duty EPDM Rubber Metal Pipe Connector. Engineered for rigorous fluid control systems, this compacted joint delivers exceptional reliability for large-scale procurement needs.

• Directly sourced from the manufacturer, ensuring optimized project cost-efficiency.
• Vulcanized self-sealing design completely eliminates the need for extra gaskets.
• Premium EPDM elastomer guarantees maximum longevity in demanding environments.
• Perfectly suited for bulk sourcing and critical infrastructure developments.

Product Description

The High Duty EPDM Rubber Metal Pipe Connector, frequently identified as a compacted rubber expansion joint, is meticulously engineered to serve as the silent guardian of your fluid transmission systems. When managing heavy-duty industrial pipelines, engineering teams often face the destructive, compounding forces of mechanical vibration and aggressive thermal expansion. This connector resolves these critical structural issues by acting as a highly responsive, robust shock absorber. Upon physical inspection, the dense, vulcanized EPDM rubber body feels incredibly resilient to the touch, featuring a smooth, precision-molded surface that speaks directly to its high-grade manufacturing process. The integrated solid cast steel flanges provide a reassuringly heavy, unyielding structural foundation, ensuring a flawless, secure mate with your existing pipework.

Once installed in close proximity to pumps, heavy compressors, or regulatory valves, the immediate operational difference is auditory; the deafening hum and structural rattle of high-velocity fluid turbulence are instantly dampened into a quiet, manageable hum. By absorbing these micro-vibrations and intelligently compensating for axial forces, the connector actively prevents premature metal fatigue and catastrophic pipeline fractures. Furthermore, the self-sealing nature of the rubber—which slightly protrudes at the flange interface—means maintenance crews save valuable hours during installation, as no additional sealing rings are required. It stands as an indispensable asset for modern facilities prioritizing operational safety, strict acoustic control, and long-term capital asset protection.

Product Specifications

Standard Specification

Component Parts

NHFLEX-C TYPE Rubber Joint Size Chart

*Stable pipeline fixed points and proper pipeline are required to absorb axial forces.

*The rubber metal pipes are installed free of tension.

*The mounting length should be 70mm, do not load on train, twist or bend position.

*The installation should be in an easily accessible location where maintenance and inspection of the system is easy to do.

*Additional seals are not required, since rubber protrudes at the sealing surface.

*Keep the joint away from heat sources such as welding machines or sun light.

*Do not assemble the joint directly in touch with rubber surface or other fitting.

Key Features & Highlights

Upgrading your pipeline infrastructure requires components that deliver measurable operational improvements. This compacted rubber flexible connector is designed with distinct engineering advantages that reduce downtime and lower maintenance overhead for large-scale industrial operators.

• Inherent Corrosion Resistance: Manufactured from superior-grade elastomers, the thick rubber wall acts as an impenetrable barrier against aggressive media, preventing internal degradation.
• Advanced Elastic Deformation: The vulcanized cylindrical body effortlessly absorbs multi-directional stresses, accommodating pipe movements caused by extreme temperature fluctuations.
• Acoustic and Kinetic Dampening: By interrupting the metal-to-metal contact path, it drastically minimizes the transfer of mechanical shocks and operational noise from heavy machinery.
• Streamlined Maintenance: The integrated self-sealing flange design means fewer components to manage during installation, reducing labor time and eliminating the recurring cost of replacing worn gaskets.

Material & Media Compatibility

Selecting the right elastomer is absolutely critical for the longevity of fluid handling systems. Our connectors are formulated utilizing premium rubber compounds tailored to withstand harsh internal and external environments, ensuring seamless integration into diverse industrial applications.

• Versatile Elastomer Options: Available in precise formulations of EPDM, NBR, and NR, allowing procurement teams to match the exact chemical resistance required for specific project parameters.
• Broad Temperature Tolerance: Engineered to maintain structural integrity and elasticity in environments ranging from a freezing -20 ºC up to a blistering 100 ºC, preventing embrittlement or thermal degradation.
• Multi-Fluid Adaptability: Highly compatible with a vast array of media, including highly corrosive sea water, purified drinking water, industrial oils, and compressed gases.
• Contamination Prevention: The non-toxic nature of the selected EPDM compounds ensures that potable water systems remain entirely uncontaminated, strictly meeting municipal safety guidelines.
• Oxidation Resistance: The outer rubber layer is specifically treated to resist environmental weathering and ozone cracking, ensuring a long service life even in semi-exposed facility areas.

Vibration Isolation & Noise Reduction

Heavy industrial equipment generates relentless kinetic energy that can slowly tear a rigid pipeline apart. This vibration dumping mount is specifically constructed to isolate these destructive forces at the source, protecting your high-value mechanical assets from premature failure.

• Pump and Compressor Shielding: Installed directly adjacent to heavy oscillating machinery, the connector acts as a highly flexible buffer, absorbing the violent vibrations before they travel down the pipe network.
• Water Hammer Mitigation: The inherent elasticity of the rubber body cushions the sudden, violent pressure spikes associated with water hammer, preventing ruptured valves and blown seals.
• Acoustic Decoupling: By breaking the continuous metallic transmission path, it significantly dampens the acoustic resonance, creating a safer and much more comfortable environment for plant personnel.

Movement Compensation & Pressure Rating

Pipeline networks are dynamic systems subject to constant shifting from thermal changes and ground settlement. This rubber-metal pipe connector provides the critical flexibility needed to maintain system integrity under continuous physical stress and high internal pressures.

• Thermal Expansion Management: Effectively absorbs the axial compression and elongation caused by seasonal or operational temperature variations, completely eliminating the risk of pipe buckling.
• Settlement Accommodation: Intelligently compensates for minor misalignments and foundation settling that occur naturally over time in large-scale industrial facilities.
• High-Pressure Reliability: Strictly rated for a maximum working pressure of 1.0Mpa, the reinforced structural design ensures leak-free performance even under highly demanding flow conditions.
• Absolute Leak Prevention: The continuous, vulcanized rubber lining extends over the flange face, creating an airtight, watertight seal that prevents hazardous fluid loss and environmental contamination.
• Stress Relief: Distributes concentrated mechanical loads evenly across the cylindrical body, preventing stress fractures at critical pipe junctions.

Structural Design & Installation

Time is a critical factor for engineering contractors during plant shutdowns or new construction phases. We engineered this compacted joint to be exceptionally user-friendly, minimizing complex assembly procedures and drastically reducing overall labor expenditures.

• Compact Footprint: With a precise mounting length ranging strictly from 70mm to 90mm, this space-saving design is perfect for tight utility corridors and congested equipment rooms.
• Self-Sealing Flange Face: The rubber naturally protrudes at the sealing surface, acting as its own integrated gasket. This eliminates the need to source, align, and install separate sealing rings.
• Vulcanized Flanged Inserts: The cylindrical body features two pieces of flanged inserts permanently vulcanized into the EPDM elastomer, ensuring a robust, fail-safe connection that will not pull apart under tension.
• Tension-Free Mounting: Designed to be installed free of tension, twisting, or bending, ensuring the joint operates exactly within its optimal performance parameters without experiencing premature wear.

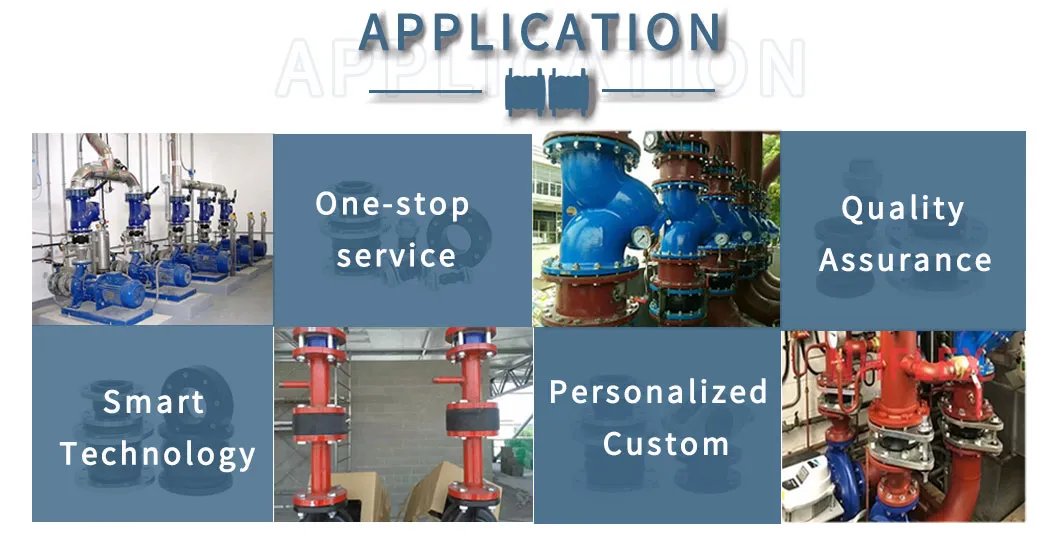

Applications & Industry Standards

Compliance and versatility are paramount for global procurement specialists. This rubber flexible connector is manufactured to meet stringent international specifications, making it a universal solution for a multitude of heavy-duty industrial sectors.

• Standardized Flange Compatibility: Manufactured strictly in accordance with DIN PN10 and PN16 standards, guaranteeing a seamless, bolt-on fit with existing European and international pipework infrastructure.
• HVAC and Climate Control: Widely utilized in commercial cooling towers and large chiller lines to absorb the constant hum and vibration of high-capacity circulation pumps.
• Marine and Shipbuilding: The exceptional resistance to seawater corrosion makes it an ideal choice for ballast systems, engine cooling lines, and desalination plants on commercial vessels.
• Water Treatment Facilities: Trusted by municipal engineering projects to handle the rigorous demands of raw water intake, filtration processing, and chemical dosing lines.
• Chemical and Petrochemical: The availability of NBR and EPDM variants allows for safe, reliable integration into facilities handling volatile gases, industrial oils, and harsh liquid compounds.
• Power Generation: Deployed in power plant cooling water systems where uninterrupted flow and vibration dampening are critical to turbine efficiency.

Quality Control & Customization

Supply chain reliability is the backbone of successful project execution. As a dedicated manufacturer, we implement rigorous testing protocols and offer deep customization capabilities to meet the exact specifications of your engineering blueprints.

• Strict Pressure Testing: Every single batch undergoes comprehensive hydrostatic pressure testing before leaving the facility, ensuring absolute compliance with the 1.0Mpa rating and zero-defect performance.
• Flexible Customization Services: We cater to specialized project demands by offering custom molding, specific length adjustments, and alternative flange drilling standards to match proprietary equipment.
• Scalable Production Capacity: Backed by an expansive manufacturing workshop, we ensure stable, on-time delivery for high-volume orders, keeping your construction schedules strictly on track.

Why Choose Us

Partnering with the right supplier is about more than just purchasing a component; it is about securing a reliable extension of your own operations. Our facility is dedicated to delivering excellence at every stage of the procurement cycle, from initial technical consultation to final global delivery.

• Decades of Manufacturing Expertise: Leveraging over 15 years of specialized experience in fluid control technology, we bring unparalleled technical knowledge to every project we undertake.
• Comprehensive Quality Assurance: From raw material inspection to final dispatch, our stringent quality control framework guarantees that every connector performs flawlessly under pressure.
• End-to-End Engineering Support: Our dedicated technical staff of over 100 professionals is readily available to assist with complex pipeline calculations, material selection, and installation guidance.
• Robust Supply Chain Infrastructure: With an 8000+ square meter facility, we maintain substantial inventory levels and streamlined logistics, ensuring rapid fulfillment and highly secure packaging.

Frequently Asked Questions (FAQ)

Q1: Do I need to purchase additional gaskets for installation?

A: No, additional seals are not required for this product. The structural design features a self-sealing mechanism where the vulcanized rubber naturally protrudes at the sealing surface. This creates a secure, leak-proof barrier directly against the mating flange, saving both time and material costs during assembly.

Q2: What precautions should be taken regarding heat exposure during installation?

A: It is absolutely critical to keep the rubber joint away from direct heat sources. This includes shielding it from welding sparks, open flames, and prolonged exposure to intense, direct sunlight. Excessive heat can prematurely degrade the elastomer, compromising its elasticity and pressure rating.

Q3: Can this connector absorb axial forces on its own?

A: While the joint is designed to compensate for minor movements and vibrations, stable pipeline fixed points and proper pipeline anchoring are strictly required to absorb major axial forces. The rubber metal pipes must be installed free of tension to function correctly and safely.

Q4: Is it acceptable to bend or twist the joint to fit misaligned pipes?

A: Absolutely not. The mounting length should be strictly adhered to (e.g., exactly 70mm or 90mm depending on the specific DN size). You must not load the joint on a train, forcibly twist it, or bend it into position during assembly, as this will cause immediate structural stress and potential failure.

Q5: What are the primary materials used in the flange construction?

A: The standard flanges provided with these connectors are manufactured from high-strength cast steel. This ensures exceptional durability, pressure resistance, and a secure, rigid connection to your existing DIN PN10 or PN16 standard piping systems.

Q6: Are there specific installation location requirements for these joints?

A: Yes, the installation should always be situated in an easily accessible location. This ensures that routine maintenance, visual inspections, and system checks can be performed safely and efficiently by your engineering team without requiring extensive dismantling of surrounding infrastructure.
