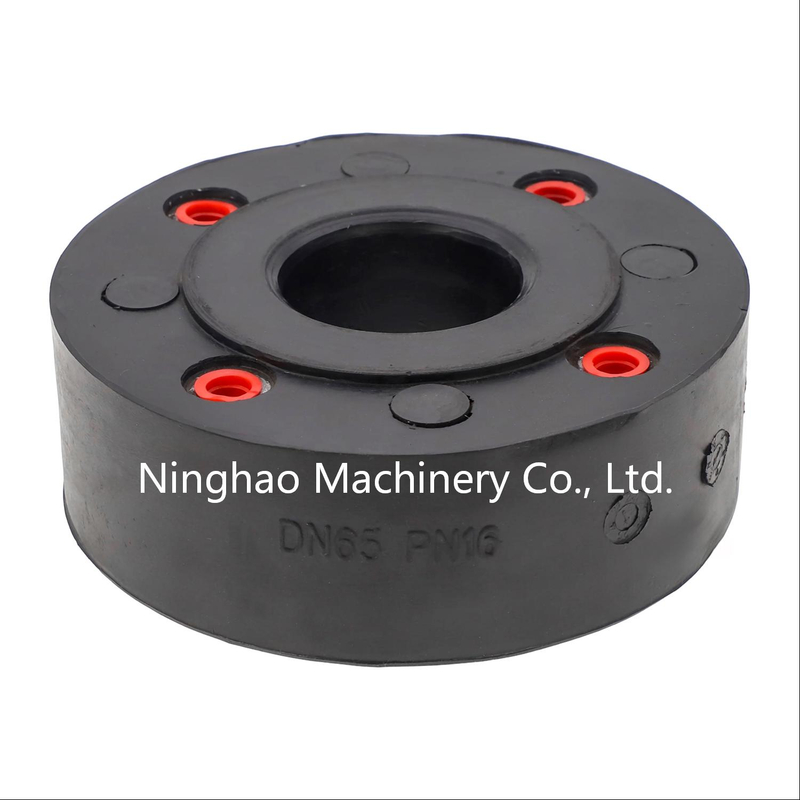

DIN EPDM Rubber Metal Pipe Connector for Misalignment

Product Overview

• Engineered by a leading industrial manufacturer and direct supplier for high-demand fluid control systems.
• Designed specifically for volume procurement and large-scale facility integrations.
• Constructed with a premium EPDM elastomer core and heavy-duty cast steel inserts.
• Features a self-sealing cylindrical body, eliminating the need for secondary gaskets.
• Effectively absorbs mechanical vibrations and corrects pipeline misalignment in confined spaces.

Product Description

When engineering high-pressure fluid dynamics systems, the physical integrity of your pipeline is paramount. The DIN EPDM Rubber Metal Pipe Connector for Misalignment serves as the critical, flexible buffer between rigid mechanical equipment and your extensive piping infrastructure. Touching the surface of the vulcanized EPDM elastomer reveals a dense, matte finish that speaks to its industrial-grade curing process. This specialized texture is not merely aesthetic; it is designed to resist the harsh, degrading effects of ozone, UV light, and abrasive flowing media. Unlike rigid metal alternatives that transmit every mechanical hum and shudder, this compacted joint absorbs kinetic energy, transforming a loud, vibrating pump room into a stabilized, quiet operational environment. You can almost hear the difference as the dull thud of water hammer is instantly neutralized within the thick rubber walls.

The heavy-duty cast steel flanges are precision-machined, offering a cold, robust metallic weight that guarantees a flush, secure fit against mating surfaces. By integrating a self-sealing cylindrical rubber body with these two-piece flanged inserts, the connector creates a flawless, leak-proof barrier. This engineered synergy corrects axial and angular misalignment caused by thermal expansion or ground settling, while effortlessly handling sea water, oils, and compressed gases. The sharp, clean threads of the inserts ensure that installation is swift and secure. It is a definitive safeguard for compressors, regulators, valves, and motors, actively extending the lifespan of your entire system by preventing fatigue stress from tearing at your rigid connections.

Product Specifications

Key Features & Highlights

Unmatched Elastic Deformation

The inherent elasticity of this connector is its greatest defense mechanism. When thermal fluctuations cause rigid pipes to expand or contract, this joint acts as a breathing lung for your system.

• Absorbs severe stresses caused by sudden temperature drops or spikes.
• Compensates for mechanical vibrations that would otherwise shatter rigid welds.
• Prevents pipeline damage by accommodating multi-directional pipe movements seamlessly.

Acoustic and Kinetic Shock Absorption

Industrial environments are notoriously loud and mechanically aggressive. This product actively dampens the kinetic transfer of energy, resulting in a drastically improved workspace.

• Minimizes the transfer of high-frequency noise from pumps and compressors.
• Acts as a shock absorber against sudden pressure surges and water hammer.
• Ensures a significantly quieter, more stable operating environment for personnel and sensitive adjacent machinery.

Streamlined Installation Process

Time is a critical asset during facility upgrades or maintenance. The structural design of this connector prioritizes rapid deployment without sacrificing sealing integrity.

• Self-sealing rubber protrusion eliminates the frustrating need for aligning external gaskets.
• Compact 70mm to 90mm mounting lengths fit perfectly into tight, space-restricted pipeline corridors.
• Straightforward bolt-hole alignment ensures maintenance crews can install the unit swiftly, keeping labor costs low.

Advanced Engineering Dimensions

1. Material & Corrosion Resistance

Procurement professionals demand longevity in complex working conditions. This connector is engineered from high-grade elastomers tailored for specific industrial threats.

• Premium EPDM: Offers exceptional resistance to weathering, ozone, and aging in outdoor or marine environments.
• NBR Compatibility: Available in Nitrile rubber for systems processing oils, fuels, and petroleum-based fluids.
• Cast Steel Flanges: Provides an unyielding, corrosion-resistant backbone that withstands aggressive chemical atmospheres and high humidity without degrading.

2. Vibration Damping & Noise Reduction

Addressing the pain points of pump rooms and heavy machinery operations, this joint acts as an acoustic and kinetic firewall.

• Effectively isolates high-frequency vibrations generated by motors and rotary equipment.
• Interrupts the transmission path of mechanical noise, preventing it from echoing through the entire piping network.
• Protects downstream valves and delicate instrumentation from fatigue stress, ensuring long-term operational stability.

3. Movement Compensation & Flexibility

Rigid systems are prone to catastrophic failure when subjected to external forces. The high elastic deformation capability of this unit provides necessary flexibility.

• Perfectly compensates for axial compression and elongation caused by thermal expansion.
• Absorbs lateral and angular deflection resulting from ground settling or slight installation misalignments.
• Relieves concentrated stress points on flanges, preventing catastrophic pull-outs or pipe fractures.

4. Structural Design & Sealing Performance

Innovation in structural geometry ensures that fluid containment is absolute and maintenance is minimized.

• Self-Sealing Architecture: The rubber body extends over the sealing face, creating a flawless, gasket-free seal upon bolting.
• Compact Footprint: The cylindrical body with vulcanized flanged inserts offers maximum performance in a minimal spatial envelope.
• Smooth Internal Bore: Reduces fluid turbulence, prevents the accumulation of sediment, and maintains optimal flow rates.

5. Specifications & Compatibility

System integration must be flawless. This product line is dimensionally calibrated to match global industrial standards.

• Fully compatible with DIN PN10 and PN16 flange standards for seamless European and international integration.
• Available in a comprehensive size range from DN20 up to DN200 to accommodate diverse flow requirements.
• Easily replaces legacy metal compensators in municipal water, HVAC, and petrochemical pipeline systems.

6. Certifications & Quality Control

Trust is built on verifiable performance. Every connector undergoes rigorous testing to guarantee safety and compliance.

• Manufactured under strict quality control protocols, ensuring the burst pressure significantly exceeds the 1.0 Mpa working pressure.
• Vulcanization processes are monitored via advanced testing instruments to guarantee rubber density and adhesion strength.
• Designed to meet the stringent safety requirements of marine, drinking water, and industrial fluid transport sectors.

7. Easy Installation & Low Maintenance

Reducing the Total Cost of Ownership (TCO) is a primary objective for facility managers. This product is designed for efficiency from day one.

• Lightweight yet durable construction allows for easier handling by installation crews compared to heavy metal bellows.
• Requires zero routine lubrication or tension adjustments once properly installed between stable anchor points.
• Visual inspections are straightforward, and the durable rubber compound ensures years of maintenance-free operation.

Why Choose Us

Selecting the right manufacturing partner is as critical as selecting the right component. We bring decades of specialized expertise to your supply chain, ensuring that every batch meets exact engineering tolerances.

• 15+ Years of Proven Experience: Deep industry knowledge in formulating and vulcanizing high-performance elastomers.
• Robust Technical Workforce: Over 100 dedicated technical staff and engineers focused on continuous product refinement and custom solutions.
• Massive Production Capacity: Operating out of an 8000+ square meter facility, ensuring we can meet aggressive volume sourcing deadlines.
• Comprehensive OEM & ODM Services: We tailor structural dimensions, rubber compounds, and flange materials to meet your specific project blueprints.
• End-to-End Quality Assurance: From raw material inspection to final pressure testing, our independent factories guarantee consistent, top-tier delivery.

FAQ

To assist your engineering and procurement teams, we have compiled the most critical technical questions regarding the installation and performance of our rubber-metal connectors.

• Are additional sealing gaskets required during the installation of this connector?
  No. The structural design features a self-sealing mechanism where the vulcanized rubber protrudes slightly at the sealing surface. When bolted to the mating flange, this rubber acts as its own high-performance gasket, ensuring a leak-proof seal without extra components.
• How does the EPDM material react to petroleum-based fluids or oils?
  Standard EPDM is highly resistant to water, weather, and ozone, but it is not recommended for petroleum-based oils. If your pipeline transports oils or fuels, we supply the exact same structural connector manufactured with NBR (Nitrile Rubber), which offers exceptional oil resistance.
• What are the critical installation guidelines to prevent premature failure?
  The connector must be installed free of tension at the exact mounting length (e.g., 70mm for DN20-DN150). It should never be twisted, bent, or loaded with the weight of the pipeline. Furthermore, stable pipeline anchor points and proper guides are absolutely required to absorb axial forces.
• Can this joint be installed near high-heat sources or welding zones?
  It is crucial to keep the rubber joint away from direct heat sources. During installation, protect the joint from welding sparks, open flames, and prolonged exposure to intense, direct sunlight to prevent the elastomer from degrading or hardening prematurely.
• How does this product handle the vacuum conditions often found near pump suctions?
  While the connector is rated for a maximum working pressure of 1.0 Mpa, applications involving strong negative pressure or vacuum conditions require specific structural reinforcements. Please consult with our technical team to ensure the internal geometry is optimized with vacuum rings if your system operates below atmospheric pressure.
