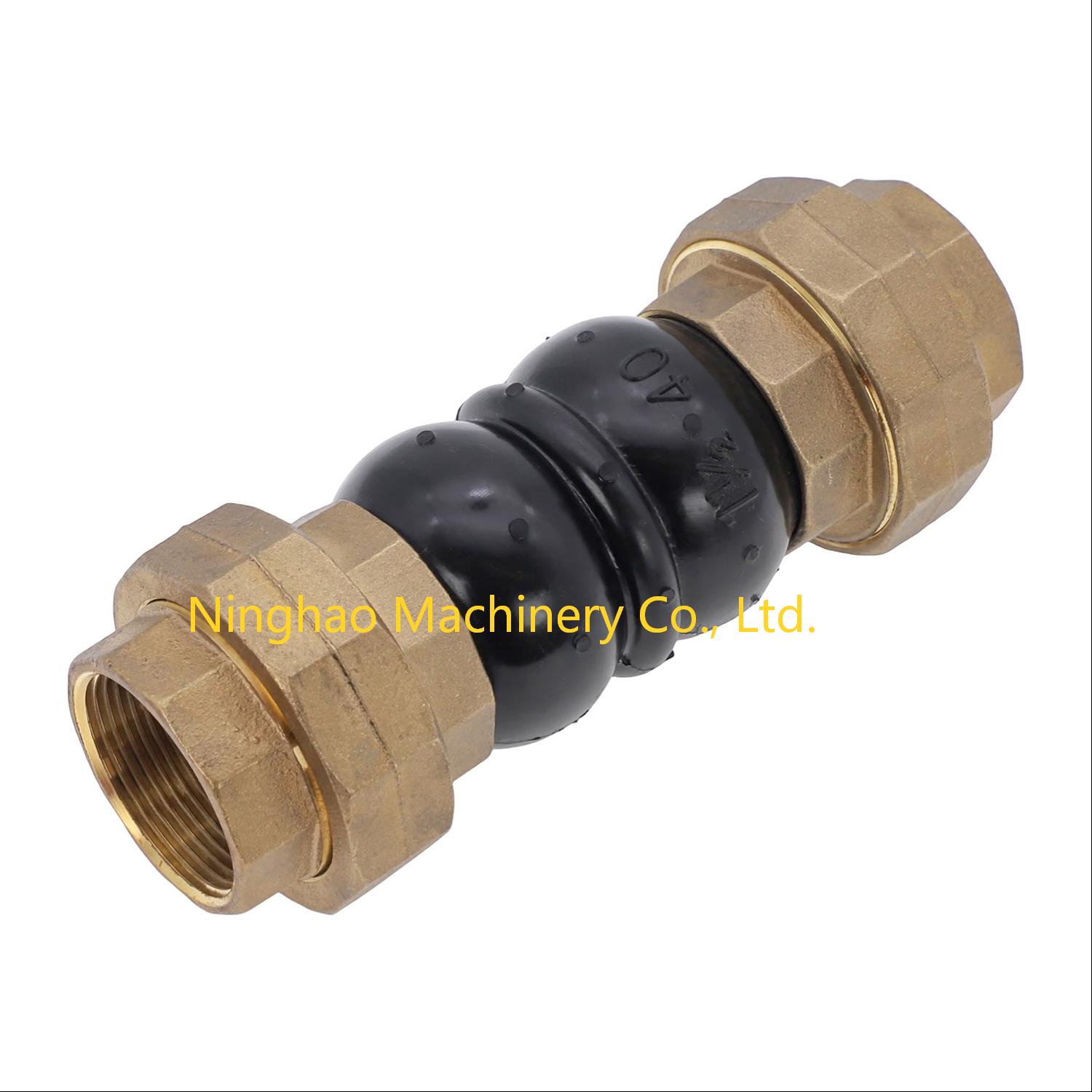

EPDM Thread Connection Rubber Joint for superior noise reduction and vibration absorption in piping systems, featuring corrosion resistance and high flexibility for seamless thermal expansion handling.
| Quantity: | |
|---|---|
Type-D
Ninghao
As a premier manufacturer and supplier of industrial pipeline solutions, we offer high-performance EPDM thread connection rubber joints designed for bulk procurement. These components are meticulously engineered to resolve critical pipeline stress and acoustic challenges in complex systems.
Engineered for superior noise reduction and high-frequency vibration isolation.
Manufactured with premium elastomeric compounds ensuring extended operational longevity.
Ideal for large-scale industrial fluid transmission and commercial plumbing projects.
Customizable union standards to seamlessly meet diverse regional engineering requirements.
The EPDM thread connection rubber joint stands as a vital safeguarding component for modern fluid handling systems. When you run your hands along the outer surface, you can immediately feel the dense, resilient texture of the premium vulcanized rubber, a clear indicator of its robust manufacturing process. This connector is purposefully crafted to absorb the relentless, high-frequency vibrations generated by heavy-duty pumps and compressors, transforming a chaotic, loud mechanical room into a significantly quieter and more stable environment. By neutralizing harsh metallic hums and aggressive water hammer shocks, it protects adjacent rigid pipes from catastrophic fatigue and fracturing.
Beyond its exceptional acoustic dampening capabilities, this expansion joint acts as a forgiving mechanical buffer. Industrial pipelines constantly battle the invisible forces of thermal expansion and contraction, which can slowly tear a system apart from the inside. The smooth, seamless inner bore offers minimal flow resistance, ensuring that whether your system is moving icy chilled water or hot, abrasive fluids, the flow remains uninterrupted and pure. The heavy-duty threaded unions, featuring a precise, clean-cut metallic finish, ensure a tight, leak-proof seal that project engineers can rely on. Integrating this component into your infrastructure means investing in operational peace of mind, drastically reducing emergency maintenance calls, and extending the overall lifecycle of your valuable mechanical assets.
To ensure precise integration into your engineering projects, please review the comprehensive technical parameters of our NHFLEX-D TYPE Union Thread Connection Flexible Rubber Expansion Joint below. These specifications dictate the operational limits and material compositions guaranteed by our production facility.
Parameter | Specification Details |
|---|---|
Product Name | NHFLEX-D TYPE Union Thread Connection Flexible Rubber Expansion Joint |
Size Range | DN20 - DN80 (20mm - 80mm) |
Max. Working Pressure | 2.0 Mpa |
Test Pressure | 3.0 Mpa (1.5 times Max. Working Pressure) |
Burst Pressure | 8.0 Mpa (4 times Max. Working Pressure) |
Operating Temperature | -20 ºC to 100 ºC |
Vacuum Rating | 101.3 KPa (760 mmHg) |
Applicable Media | Sea Water, Drinking Water, Oils, Gases, etc. |
Union Standard | BSPT, NPT (others upon request) |
Body Outer/Inner Layer | NR, EPDM, NBR, FKM |
Reinforced Fabric | Nylon |
Union Material | Zinc Plated/Sprayed Carbon Steel, Cast Iron, Bronze, Stainless Steel |
Axial Compression | 22mm - 24mm |
Axial Extension | 6mm |
Lateral Movement | 22mm - 24mm |
Angular Movement | 45° |
Our engineering team has meticulously refined this expansion joint to deliver uncompromising reliability. By addressing the most common failure points in commercial fluid routing, this component elevates the safety and efficiency of your entire infrastructure.
Exceptional Acoustic Dampening: The dense elastomeric body inherently absorbs sound waves, turning the deafening roar of industrial pumps into a muted, manageable hum, significantly improving workplace safety.
Superior Stress Relief: Acting as a flexible bridge, it effortlessly yields to the pushing and pulling forces of thermal expansion, preventing rigid metal pipes from cracking under immense pressure.
Seamless Media Flow: The meticulously molded inner bore presents a frictionless surface, preventing sediment buildup and ensuring the fluid maintains its intended velocity and purity.
Galvanic Corrosion Prevention: By separating adjoining metal pipes with an insulating rubber barrier, it effectively stops the destructive process of electrolysis, preserving the integrity of expensive metallic valves and fittings.
Compact and Adaptive Design: The lightweight architecture and threaded union ends allow for swift integration into tight spatial constraints, easily compensating for minor misalignments during the assembly process.
To fully understand the value this component brings to complex fluid networks, we must examine its multi-dimensional engineering advantages. Each aspect is tailored to minimize downtime and maximize operational output for large-scale installations.
Constructed from premium elastomeric compounds like EPDM, NBR, and FKM, and fortified with a high-tensile nylon reinforced fabric, this joint offers formidable defense against harsh environments. The seamless inner wall resists the corrosive bite of acidic, alkaline, or oily media, drastically extending the service life of the connection.
Pipeline networks are dynamic, constantly shifting due to temperature changes and foundation settling. This joint provides exceptional elasticity, absorbing 22-24mm of axial compression, 6mm of extension, 22-24mm of lateral shift, and up to 45 degrees of angular movement, effectively neutralizing stress before it reaches critical junctions.
Designed specifically to interrupt the transmission of mechanical noise, it acts as an acoustic barricade. When installed near compressors or HVAC chillers, it swallows high-frequency vibrations and the violent shockwaves of water hammer, protecting adjacent equipment from premature metal fatigue.
Built to endure extreme operational demands, the joint comfortably handles a maximum working pressure of 2.0 Mpa. It has been rigorously tested at 3.0 Mpa and boasts a burst threshold of 8.0 Mpa. Operating flawlessly between -20 ºC and 100 ºC, it guarantees absolute sealing under severe thermal and pressure fluctuations.
Versatility is key for global project compatibility. Available with BSPT and NPT union standards in materials ranging from carbon steel to bronze, it fits seamlessly into diverse systems. Furthermore, the rubber core eliminates direct metal-to-metal contact, eradicating the hidden threat of galvanic corrosion across the network.
From the corrosive nature of seawater desalination to the strict hygiene requirements of drinking water lines, this joint is highly adaptable. Its superior gas-tightness and chemical resistance make it an indispensable asset across HVAC, fire protection, and heavy industrial fluid transport applications.
Time is a critical resource in project execution. The lightweight profile and threaded union mechanism allow technicians to bypass minor pipe misalignments, ensuring a swift, hassle-free installation. Once operational, the joint demands virtually no maintenance, driving down total ownership costs for procurement managers and facility operators.
