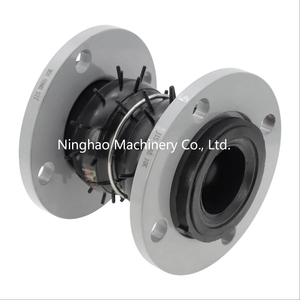

High Duty Rubber Metal Pipe Joint for Movement Compensator

Product Overview

As a premier manufacturer and supplier of advanced industrial piping solutions, we present the NHFLEX-C TYPE High Duty Rubber Metal Pipe Joint. Engineered specifically for high-load environments, this movement compensator acts as a critical safeguard for your infrastructure, ensuring seamless operational flow and protecting expensive machinery from stress.

• Self-sealing vulcanized construction eliminates the need for extra gaskets.
• Engineered to absorb multi-directional movement and thermal expansion.
• Premium integration of high-performance elastomers and robust metal.
• Direct-from-factory precision ensuring long-term system reliability.

Product Description

The High Duty Rubber Metal Pipe Joint stands as an indispensable safeguard for complex, high-pressure industrial piping networks. When you run your hand along the exterior, you immediately feel the dense, resilient texture of the premium vulcanized elastomer, meticulously crafted to withstand relentless mechanical stress and harsh environmental exposure. This is not merely a connector; it is a heavy-duty movement compensator designed to silently absorb the violent vibrations, sudden impacts, and gradual thermal expansions that constantly threaten the structural integrity of expensive machinery and rigid pipelines. By seamlessly integrating a high-performance rubber body with high-strength metal flange inserts, this joint achieves exceptional structural stability while maintaining the flexibility required for dynamic fluid systems.

In demanding operational environments where industrial pumps roar and massive compressors generate intense kinetic energy, this compensator acts as an unparalleled acoustic and mechanical dampener. It transforms a chaotic, vibrating pipeline into a stable, quiet, and highly efficient fluid transit system. The precise, self-sealing craftsmanship ensures a flawless fit upon installation, effectively preventing catastrophic leaks and minimizing costly maintenance downtime. Whether your system is managing the harsh, corrosive bite of seawater or the steady, high-pressure flow of industrial fluids, this rubber-metal connector delivers unwavering, long-term reliability. It is engineered to protect your capital investments, reduce structural fatigue, and ensure that your critical operations continue without interruption.

Product Specifications

Key Features & Highlights

Our engineering team has developed this movement compensator to address the most pressing challenges faced by procurement managers and system engineers. By focusing on structural integrity and operational safety, this product delivers measurable improvements to your facility.

Heavy-Duty Structural Design

• Reinforced elastomer body combined with high-strength metal components ensures superior burst resistance and mechanical stability under high loads.
• The vulcanized integration prevents the separation of materials, extending the lifecycle of the joint even in fluctuating pressure environments.
• Maintains shape and performance integrity, preventing pipeline sagging or misalignment over time.

Advanced Self-Sealing Mechanism

• The unique self-sealing rubber-metal interface completely eliminates the need for secondary gaskets or sealing rings.
• Dramatically reduces installation time and labor costs for your maintenance crews.
• Provides a leak-proof guarantee, minimizing the risk of hazardous fluid spills and ensuring a safe working environment.

Materials & Durability

The foundation of any reliable piping component lies in the uncompromising quality of its raw materials. We source only premium-grade polymers and industrial-strength metals to ensure that every compensator performs flawlessly under the most punishing conditions. This dedication to material excellence translates directly into reduced replacement cycles and lower total cost of ownership for your facility.

• Premium Elastomers: Utilizing top-tier EPDM, NBR, and NR, the rubber body exhibits exceptional resistance to ozone aging, UV degradation, and chemical corrosion. Whether exposed to harsh sunlight or aggressive industrial fluids, the rubber maintains its supple yet strong tactile properties.
• High-Strength Metals: The flange inserts are crafted from robust Carbon Steel, Stainless Steel (such as 304/316), or Casting Steel. These metals provide an unyielding backbone, resisting rust and mechanical deformation even under maximum working pressures of 1.0 Mpa.
• Wear Resistance: The internal bore is engineered to be exceptionally smooth, reducing fluid friction and resisting the abrasive wear caused by particulate-heavy media like seawater or untreated industrial water.
• Longevity Guarantee: The synergistic combination of vulcanized rubber and solid metal creates a barrier against premature wear, ensuring the joint outlasts standard market alternatives in high-stress applications.

Compensation & Isolation Technology

Protecting your rigid pipeline infrastructure requires intelligent flexibility. This compensator is a marvel of mechanical engineering, designed to act as a dynamic buffer between rigid systems. It absorbs the destructive forces that cause metal fatigue, cracked welds, and catastrophic equipment failure, thereby safeguarding your entire operational network.

• Multi-Directional Absorption: Expertly engineered to accommodate axial compression and extension, lateral deflection, and angular bending simultaneously. It forgives installation misalignments and ground settlement.
• Thermal Expansion Management: As temperatures fluctuate between -20 ºC and 100 ºC, pipes expand and contract. This joint breathes with your system, absorbing thermal stresses before they can warp connected equipment.
• Vibration Dampening: Acts as a critical acoustic and kinetic barrier, isolating the high-frequency vibrations generated by heavy-duty pumps, compressors, and rotating machinery.
• Noise Reduction: By interrupting the transmission of sound waves through the metal piping, it significantly lowers the ambient noise level in your facility, contributing to a safer and more comfortable environment for personnel.

Specifications & Compatibility

Seamless integration into existing infrastructure is a primary concern for any procurement or engineering team. We have designed this rubber-metal pipe connector to meet the most stringent international standards, ensuring it acts as a universal solution for diverse piping networks across the globe.

• Global Flange Standards: Fully compliant with DIN PN10 and PN16 standards, while offering seamless compatibility with ANSI150 and JIS10K configurations. This universal design eliminates the headache of mismatched connections.
• Broad Temperature Range: Functioning reliably from a freezing -20 ºC up to a boiling 100 ºC, making it suitable for both chilled water systems and hot fluid processing lines.
• Versatile Media Handling: The chemical composition of the internal rubber lining can be tailored to safely transport drinking water, corrosive seawater, and complex industrial chemicals without degrading.
• Standardized Pressure Ratings: Engineered to comfortably sustain a maximum working pressure of 1.0 Mpa, providing a wide safety margin for standard industrial applications.

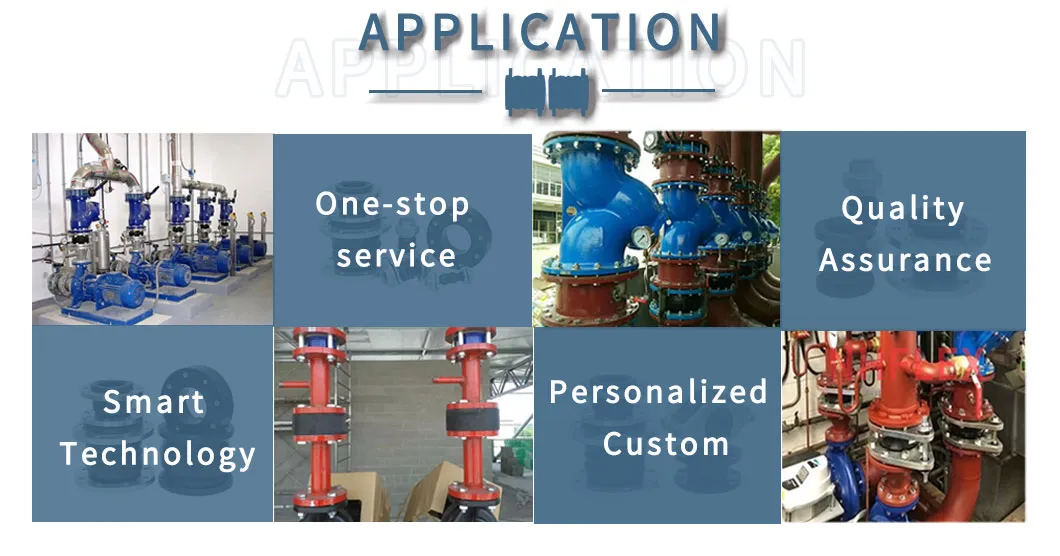

Industry Applications & Scenarios

Our movement compensators are trusted by industry leaders across a multitude of heavy-duty sectors. Wherever there is a need to transport fluids safely under high stress, our products provide the critical link that keeps operations running smoothly.

• Power Generation & Energy: Installed in cooling water lines and turbine connections to absorb the immense vibrations inherent in power plant operations.
• Petrochemical & Chemical Processing: Utilized to safely manage the transit of aggressive fluids, where leak prevention and chemical resistance are non-negotiable.
• Marine & Shipbuilding: Perfect for offshore platforms and vessel engine rooms, where the compensator must withstand the corrosive nature of seawater and the constant rolling motion of the ocean.
• HVAC & Chilled Water Systems: Ensures quiet operation in commercial buildings by isolating the hum of large-scale air conditioning compressors and water pumps.
• Heavy Industrial Facilities: Deployed in mining, metallurgy, and paper mills to handle abrasive slurries and high-impact fluid shocks.

Quality Control & Certifications

We understand that when you source critical infrastructure components, trust is paramount. Our manufacturing facility operates under an uncompromising quality control regimen, ensuring that every single joint that leaves our floor is ready to perform under pressure.

• Rigorous Testing Protocols: Every compensator undergoes strict hydrostatic pressure testing prior to dispatch, ensuring it can comfortably handle its 1.0 Mpa rating without weeping or deformation.
• Advanced Inspection Equipment: Our 120-acre facility is equipped with state-of-the-art vulcanization monitors and material tensile testers to guarantee the structural integrity of the rubber-metal bond.
• 100% Quality Assurance: We do not rely on batch sampling; we implement a 100% full-inspection policy on all finished goods to ensure zero defects.
• Global Standards Compliance: Our production processes align with strict international quality management systems, providing peace of mind to buyers in Spain, Italy, the Netherlands, and beyond.

Customization & Supply Chain Services

As a direct manufacturer, we offer unparalleled flexibility to meet the specific demands of your large-scale projects. We do not just sell off-the-shelf products; we provide comprehensive supply chain solutions tailored to your operational timelines and technical requirements.

• OEM & ODM Capabilities: Our engineering team can work directly from your technical drawings to produce custom sizes, specific flange drillings, and specialized rubber compounds.
• Scalable Production: With over 80 skilled employees and advanced automated machinery, we can seamlessly scale production to meet both small specialized orders and massive project demands.
• Responsive Technical Support: Our dedicated service team provides rapid responses to technical inquiries, assisting your procurement department with accurate product selection and system matching.
• Optimized Lead Times: By controlling the entire manufacturing process in-house, we eliminate third-party delays, ensuring your critical components arrive on site exactly when needed.

Why Choose Us

Selecting the right manufacturing partner is just as important as selecting the right product. Ningjin NINGHAO Machinery Co., Ltd., founded in 2010, has built a formidable reputation over years of dedicated export experience. We are committed to fostering long-term, mutually beneficial relationships with our global clientele.

• Decades of Expertise: Deep-rooted knowledge in the vulcanization and machining of rubber-metal composites.
• Global Footprint: A proven track record of successful deliveries to demanding markets including Europe (Spain, Italy, France, Austria) and Asia (Vietnam, India).
• One-Stop Solution: From single ball flexible joints to complex tie-rod sets, we offer a comprehensive catalog to fulfill all your piping connection needs.
• Secure Packaging & Logistics: We utilize robust, export-grade wooden crating to ensure your heavy-duty components arrive in pristine condition, ready for immediate installation.

Frequently Asked Questions (FAQ)

To assist your engineering and procurement teams in making an informed decision, we have compiled answers to the most critical technical questions regarding our movement compensators.

• How does the self-sealing design improve installation efficiency?
  The vulcanized rubber extends over the face of the metal flange insert, creating an integrated, resilient sealing surface. This eliminates the need to source, align, and install separate gaskets, significantly reducing labor time and the risk of installation errors.
• Can this compensator handle highly corrosive industrial fluids?
  Yes. While the standard EPDM is excellent for water and mild chemicals, we can customize the internal elastomer lining using NBR or FR rubber to provide superior resistance against oils, aggressive chemicals, and abrasive slurries based on your specific media.
• What happens if my piping system experiences sudden pressure surges?
  The High Duty Rubber Metal Pipe Joint is engineered with a reinforced structural body that safely accommodates a maximum working pressure of 1.0 Mpa. The robust metal inserts prevent the rubber from ballooning or rupturing during unexpected pressure spikes.
• Do you provide custom flange drillings for legacy piping systems?
  Absolutely. As a source manufacturer, our CNC machining capabilities allow us to drill flanges to match non-standard, legacy, or highly specific project requirements, ensuring a perfect fit without modifying your existing pipes.
• How do your quality control procedures ensure zero-leakage performance?
  We implement a rigorous 100% full-inspection protocol. Every single compensator is subjected to hydrostatic pressure testing that exceeds normal operating conditions before it is approved for packaging, guaranteeing that no defective unit leaves our facility.
