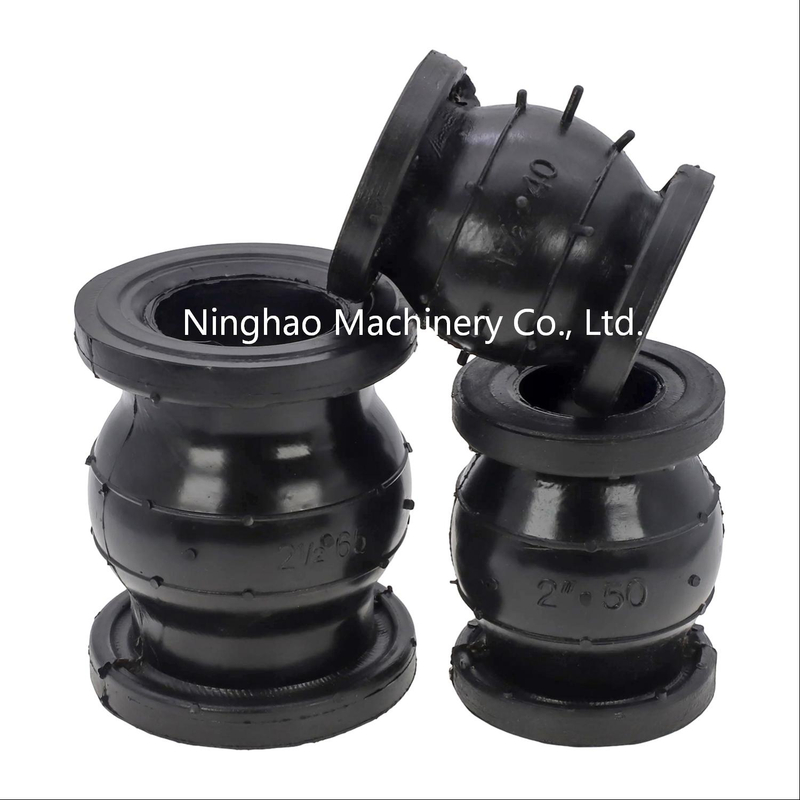

HVAC High-Temperature Rubber Expansion Joint for Thermal Movement & Vibration Control
Engineered for demanding HVAC systems, our rubber expansion joints absorb thermal expansion, vibration, and mechanical movement while providing superior heat resistance and noise reduction. Ideal for high-temperature applications, they outperform metal compensators with easier installation, lower maintenance, and quieter operation.
| Quantity: | |
|---|---|
NHFLEX-A
Ninghao
As a leading manufacturer and supplier of industrial fluid control solutions, we present the HVAC High-Temperature Rubber Expansion Joint. Engineered for demanding thermal environments, this premium component ensures seamless, uninterrupted pipeline operation across complex infrastructures.
Absorbs thermal expansion, contraction, and mechanical movement
Significantly reduces vibration and acoustic noise transmission
Constructed from advanced heat-resistant elastomers
Ideal for integrating with pumps, valves, and heavy firefighting equipment
The HVAC High-Temperature Rubber Expansion Joint is meticulously crafted to serve as the ultimate safeguarding component within complex heating, ventilation, and air-conditioning infrastructures. Running your hands along its robust exterior, you can immediately feel the dense, vulcanized elastomer that speaks volumes about its structural integrity and resilience. Designed to combat the relentless stress of elevated temperatures, this connector acts as a flexible buffer, seamlessly absorbing the silent but destructive forces of thermal expansion and mechanical vibration. When installed, it dramatically alters the acoustic environment, turning the aggressive hum and rattle of heavy-duty pumps and chillers into a subdued, manageable whisper. The smooth internal finish ensures an unobstructed flow of fluids, preventing turbulence and minimizing pressure drops across the network. By integrating this premium joint into your fluid handling systems, you are not merely replacing a part; you are upgrading the entire operational lifespan of your pipelines, protecting expensive adjacent machinery from premature wear, and ensuring a leak-free, stable environment even under the most punishing thermal cycles.
When sourcing critical pipeline components, verifying exact technical specifications is paramount to ensure system compatibility and operational safety. The following table outlines the precise engineering parameters of our expansion joint. Designed to operate flawlessly under rigorous conditions, this unit handles a broad temperature spectrum, making it highly versatile for fluctuating thermal cycles. It also boasts excellent vacuum resistance, preventing collapse under negative pressure conditions. Review the complete technical profile below to confirm alignment with your specific project requirements.
Parameter | Specification |
|---|---|
Product Name | HVAC High-Temperature Rubber Expansion Joint |
Model | NHFLEX-A TYPE |
Max. Working Pressure | 2.5 Mpa |
Operating Temperature | -20 ºC to 100 ºC |
Vacuum | 44.9 KPa (350 mmHg) |
Applicable Media | Water, Sea Water, Fresh Water, Warm Water, Weak Acid Fluid, Soda Fluid, Drinking Water, etc. |
Flange Standard | DIN, JIS, GOST, ANSI, etc. |
Connection Type | Standard flanged connections |
Application Equipment | Pumps, valves, firefighting equipment, and related pipeline systems |
Core Functions | Thermal expansion compensation, shock absorption & noise reduction, pipe movement compensation, leak prevention |
These specifications highlight the robust engineering behind our joints, ensuring they meet the rigorous demands of modern fluid handling networks while providing a secure, leak-proof seal across diverse media types.
Engineered for excellence, our expansion joints deliver unparalleled protection and efficiency for complex fluid networks. Every curve and reinforcement layer is designed to solve specific operational challenges and enhance overall system longevity.
Exceptional Thermal Expansion Compensation: As temperatures fluctuate, pipelines naturally expand and contract. This joint acts as a dynamic cushion, absorbing these dimensional changes and preventing excessive stress from fracturing rigid pipes.
Superior Shock Absorption and Noise Reduction: Feel the difference in your facility's acoustics. By isolating vibrations at the source, this coupling significantly dampens the mechanical noise generated by pumps and compressors, creating a safer, quieter working atmosphere.
Reliable Leak Prevention: The precision-molded sealing faces provide a watertight fit against mating flanges. This eliminates the need for additional gaskets in many standard scenarios, ensuring a secure connection that protects your facility from hazardous spills.
Multi-Axial Movement Accommodation: Whether your system experiences axial compression, lateral deflection, or angular bending due to ground settling or installation misalignment, this flexible connector compensates flawlessly.
Our high-temperature flexible connectors are engineered to exceed standard operational demands, offering specialized solutions for complex fluid management scenarios across various demanding industries.
The tactile resilience of our connectors stems from a meticulous material selection process. The thick, weather-resistant outer layer feels rugged to the touch, specifically formulated to repel environmental degradation and extend operational life.
Available in premium high-performance elastomers including EPDM, Neoprene, Nitrile, Viton, and PTFE composites to match exact fluid chemistry.
Exhibits outstanding resistance to ultraviolet (UV) radiation, ozone exposure, and aggressive chemical corrosion.
Guarantees a safe, extended service life of over 7 to 10 years, even when installed in harsh outdoor rooftop environments or highly corrosive industrial atmospheres.
Thermal volatility is a primary cause of pipeline failure. Our joints are forged to withstand extreme shifts without losing their structural integrity, elasticity, or sealing capabilities.
Specifically engineered for high-temperature and high-pressure environments, easily managing the harsh transition from chilled water circulation to scalding heating lines.
Demonstrates exceptional anti-vacuum properties and surge resistance, preventing inward collapse during pump shutdowns.
Safeguards the stability and hermetic seal of HVAC and industrial pipelines during extreme operational limits and sudden pressure spikes.
Rigid systems are highly prone to mechanical fatigue. Introducing our flexible elastomer joints transforms a brittle network into a dynamic, shock-absorbing system capable of handling continuous kinetic stress.
Highly efficient at absorbing axial, lateral, and angular displacements caused by thermal expansion, heavy equipment vibration, and unavoidable foundation settlement.
Serves as a critical flexible link, effectively blocking the transmission of mechanical vibrations and harsh acoustic noise from chillers, blowers, and water pumps.
Dramatically enhances the acoustic profile of commercial buildings while actively preventing fatigue-induced fractures in rigid steel or copper piping.
No two facilities are identical. The visual diversity of our product line reflects our commitment to universal adaptability, ensuring a perfect fit for any architectural or engineering constraint.

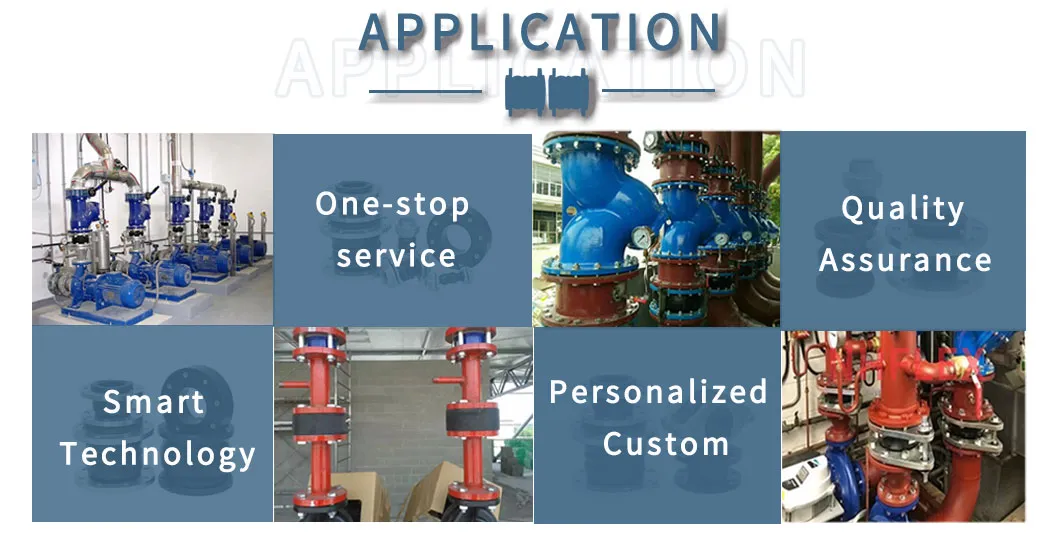

Universally applicable across HVAC ducting, chilled water networks, power generation plants, marine vessels, and chemical fluid transport lines.
Available in a multitude of structural forms: single or multiple spheres, concentric or eccentric reducers, allowing for precise flow management.
Offers diverse connection methods, including standard flanged and grooved ends, perfectly accommodating varying pipe diameters, flow velocities, and confined installation spaces.
Time is a critical asset during facility upgrades. The streamlined architecture of our joints ensures that installation is swift and straightforward, requiring minimal specialized tooling or extended labor hours.
The lightweight profile combined with standardized flange interfaces drastically reduces on-site installation complexity and costly operational downtime.
Constructed from premium elastomeric materials that inherently resist rust, corrosion, and mechanical seizing, unlike traditional metal bellows.
Features a completely maintenance-free design that eliminates the need for routine lubrication or adjustments, significantly lowering the total cost of ownership (TCO) over the product's lifespan.

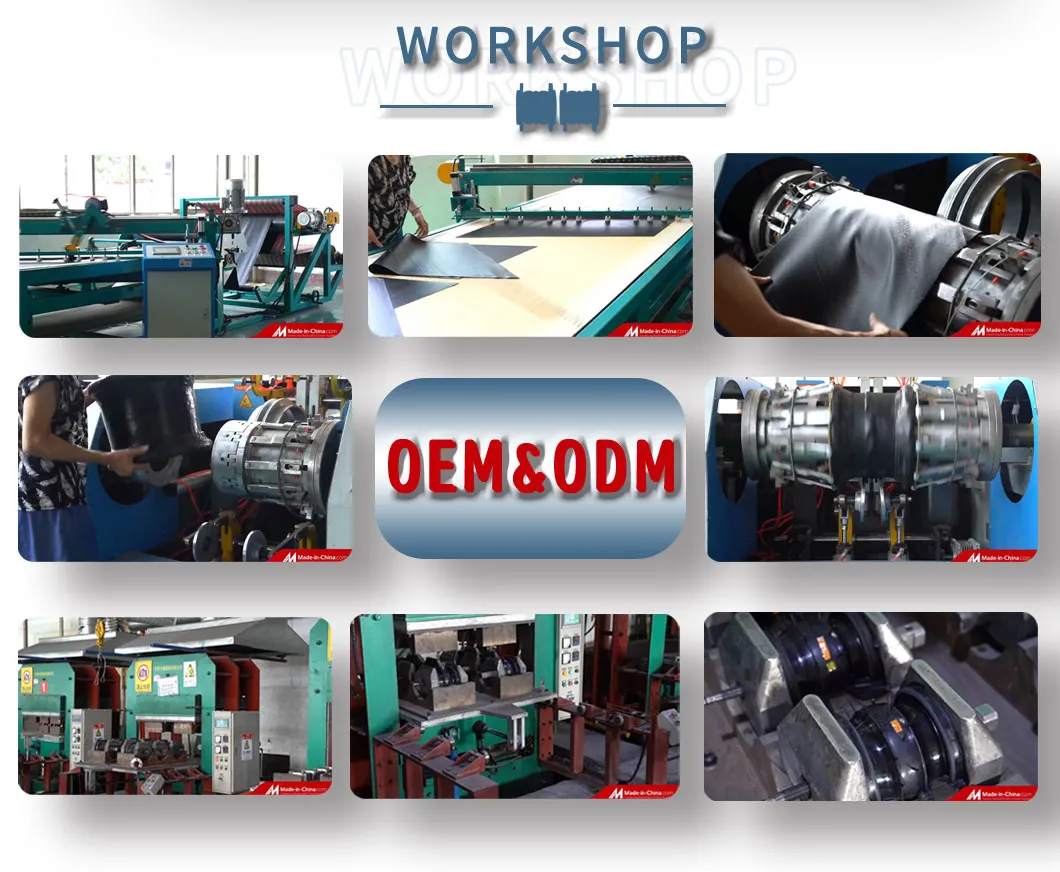

Trust is built on verifiable quality. The smooth, flawless finish of every joint we produce is the direct result of rigorous, uncompromising quality assurance protocols implemented at every stage of manufacturing.
Manufactured in strict compliance with globally recognized industry standards, including EJMA and ASTM guidelines.
Fully certified under the ISO quality management system, with type approvals from major maritime classification societies such as DNV-GL, Lloyd's Register, and Bureau Veritas.
Subjected to exhaustive pre-dispatch testing, including high-pressure burst tests, thermal conductivity analysis, and rigorous fatigue life assessments to guarantee zero-defect delivery.
Beyond off-the-shelf products, we provide comprehensive engineering solutions tailored to your specific fluid dynamic challenges, ensuring optimal performance in non-standard environments.
Delivers end-to-end engineering support, encompassing thermal stress calculations, flow analysis, and expert on-site installation guidance.
Offers a wide array of optional accessories to manage extreme pressures or abnormal displacements, including precision-machined Control Rods and limit tie rods.
Can be customized with internal Flow Liners to reduce turbulence for abrasive media, or external fire protection covers for enhanced safety in high-risk environments.
