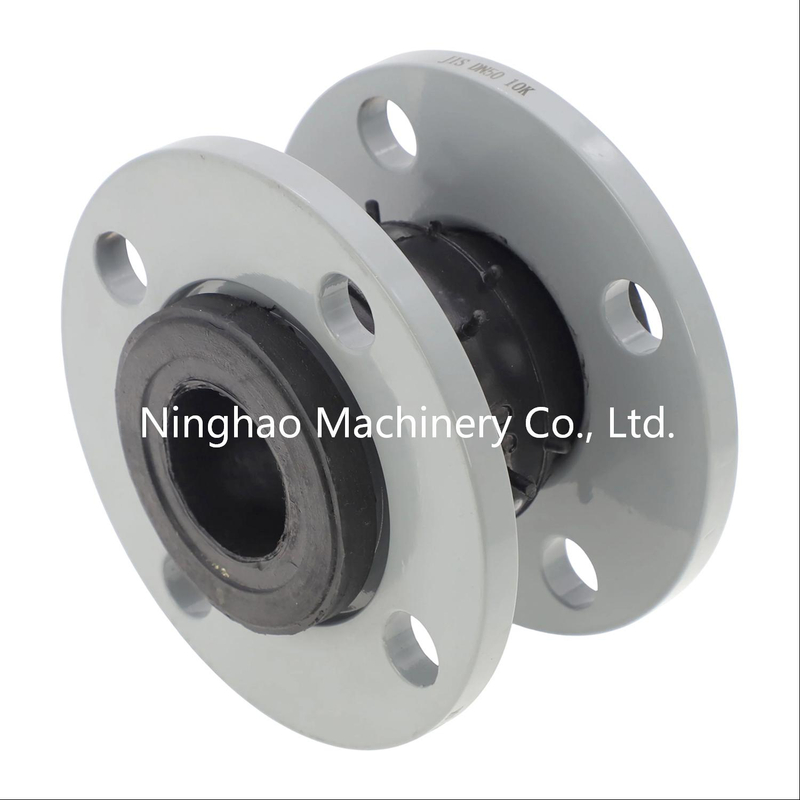

The NHFLEX-A Type 6-inch EPDM Rubber Expansion Joint is a high-performance flexible compensator designed to absorb vibrations, reduce noise, and accommodate thermal expansion in pipeline systems. Its corrosion-resistant EPDM construction ensures durability in harsh environments while maintaining excellent elasticity for stress absorption.
| Quantity: | |
|---|---|
NHFLEX-A
Ninghao
As a premier manufacturer and supplier of industrial pipeline solutions, we present the 6-inch EPDM flexible rubber compensator. Engineered for demanding fluid control systems, this component absorbs vibration and accommodates pipeline movement with exceptional reliability.
Premium EPDM, NBR, and NR construction for superior fluid compatibility
Robust nylon fabric and steel wire reinforcement
Versatile flange options including carbon and stainless steel
Engineered to mitigate thermal expansion and mechanical stress
The 6-inch EPDM flexible rubber compensator is meticulously crafted to serve as the critical shock-absorbing nexus within complex piping architectures. When running your hands along the smooth, vulcanized outer layer, the robust density of the premium elastomer immediately conveys a sense of industrial-grade durability. This component acts as a vital safeguard, effectively neutralizing the intense kinetic energy and disruptive acoustic signatures generated by heavy-duty pumps and valves. By accommodating axial, lateral, and angular deflections, it relieves the immense mechanical stress that would otherwise fracture rigid pipe connections or loosen critical flange bolts over time.
The vulcanization process seamlessly binds the inner synthetic rubber with the high-tensile nylon cord and rigid steel wire, resulting in a composite structure that feels exceptionally resilient yet remarkably pliable under targeted force. Whether deployed in municipal water treatment facilities or caustic chemical processing plants, this compensator stabilizes the entire fluid transit network. It transforms a volatile, vibrating pipeline into a silent, harmonious, and leak-free operation, ensuring that your infrastructure remains intact and fully operational even under the most demanding environmental fluctuations.
The following table details the precise engineering parameters and material compositions of our flexible compensator.
Specification Category | Details |
|---|---|
Product Name | 6inch EPDM Rubber Expansion Joint Flexible Rubber Compensator |
Product Model | NHFLEX-A TYPE |
Product Size | 6 inch (DN150) |
Size Supply Range | Up to DN3000 |
Body Material (Inner/Outer Layer) | NR, EPDM, NBR |
Reinforced Fabric | Nylon |
Wire | Steel |
Flange Material | Zinc Plated/Sprayed CS, SS304, SS316, Cast Steel |
Flange Standard | ANSI150, DIN, JIS10K |
Rated Working Pressure | Up to 2.5MPa (Control units must be used for high pressure) |
Test Pressure | 1.5 times working pressure |
Burst Pressure | 4 times working pressure |
Operating Temperature | Based on 30 ºC (Pressure rating is reduced at higher temperatures) |
Applicable Media | Water, Sea Water, Fresh Water, Warm Water, Weak Acid Fluid, Soda Fluid, etc. |
Integrating this flexible compensator into your infrastructure brings immediate operational improvements. It is designed not just to connect pipes, but to actively extend the lifespan of your entire fluid handling system by addressing the root causes of mechanical wear and tear.
Eliminates structural fatigue by absorbing thermal expansion during extreme temperature fluctuations.
Drastically reduces acoustic pollution, creating a safer and quieter environment for facility operators.
Prevents catastrophic pipeline misalignment by compensating for ground settlement and installation inaccuracies.
Maintains a hermetic seal under dynamic load, eradicating the risk of costly and hazardous fluid leaks.
Streamlines the installation process with its lightweight profile, requiring fewer personnel and less heavy lifting equipment.
Protects sensitive downstream instrumentation from hydraulic shock and water hammer effects.
The foundational strength of our piping connectors lies in the uncompromising quality of the elastomers utilized. By offering a tailored selection of inner and outer layers, the product adapts seamlessly to the specific chemical profile of your transported media.
Engineered with top-tier EPDM, NBR, or NR to repel the degrading effects of weak acids and alkaline solutions.
Reinforced with a tightly woven nylon fabric that prevents ballooning under intense internal fluid dynamics.
Embedded steel wire skeleton maintains the structural integrity of the arch, preventing collapse during vacuum conditions.
Resists the abrasive nature of raw seawater and particulate-heavy fluids, ensuring long-term structural viability.
Global infrastructure requires components that integrate flawlessly with existing international frameworks. This compensator is precision-molded and machined to meet the exact tolerances demanded by cross-border engineering projects.
Available in a massive dimensional range, spanning from standard 6-inch profiles up to custom DN3000 configurations.
Flanges are rigorously drilled and faced to align perfectly with ANSI150, DIN, and JIS10K standards.
Offers versatile flange metallurgy, including zinc-plated carbon steel for general use, and SS304/SS316 for highly corrosive environments.
Ensures zero-guesswork during installation, as the bolt holes and face-to-face dimensions are universally compatible.
High-velocity fluid transit demands absolute containment security. This joint is subjected to punishing diagnostic evaluations to guarantee it will not yield during unexpected system surges.
Sustains a formidable rated working pressure of up to 2.5MPa, ideal for heavy municipal and industrial pumping stations.
Subjected to a rigorous test pressure of 1.5 times the working limit to verify the integrity of the vulcanized bonds.
Engineered with a massive safety margin, featuring a burst pressure threshold that is 4 times the standard operating load.
Mandatory integration with control units for unanchored pipelines ensures the bellows will never over-extend or pull apart under extreme hydraulic thrust.
The kinetic violence generated by industrial pumps can systematically destroy rigid piping. This elastomer joint acts as a highly responsive kinetic sponge, isolating destructive forces before they propagate.
Effortlessly absorbs multi-directional movement, including axial compression, axial extension, lateral deflection, and angular bending.
Decouples the vibration frequencies of heavy machinery from the main pipeline, preventing resonance-induced fractures.
Acts as an acoustic barrier, dampening the transmission of fluid-borne noise through the metallic pipe walls.
Safeguards the threading and torque of adjacent flange bolts, which would otherwise vibrate loose over time.
Facility downtime is a massive expense. The architectural geometry of this flexible connector is specifically optimized to accelerate both initial deployment and long-term lifecycle management.
Features a surprisingly lightweight footprint compared to traditional metallic expansion bellows, reducing the need for heavy rigging.
The floating and loose flange design allows for rapid bolt-hole alignment, eliminating the struggle of rotating heavy pipe sections.
Requires zero lubrication or periodic packing adjustments, establishing a true install-and-forget operational paradigm.
The smooth inner bore prevents the accumulation of scale and sediment, maintaining optimal flow rates without manual cleaning.
Partnering with a proven production entity guarantees a stable, predictable supply chain. Our expansive manufacturing campus is dedicated to the precise fabrication of advanced elastomeric solutions.
Produced within a sprawling 120-acre facility equipped with state-of-the-art vulcanization presses and diagnostic laboratories.
Backed by a dedicated workforce of over 80 specialists who enforce strict quality control protocols at every manufacturing stage.
Proven track record of fulfilling large-scale, complex orders for major infrastructure projects across Europe and Asia.
Capable of executing highly customized OEM and ODM specifications to meet the unique architectural demands of specialized fluid networks.
