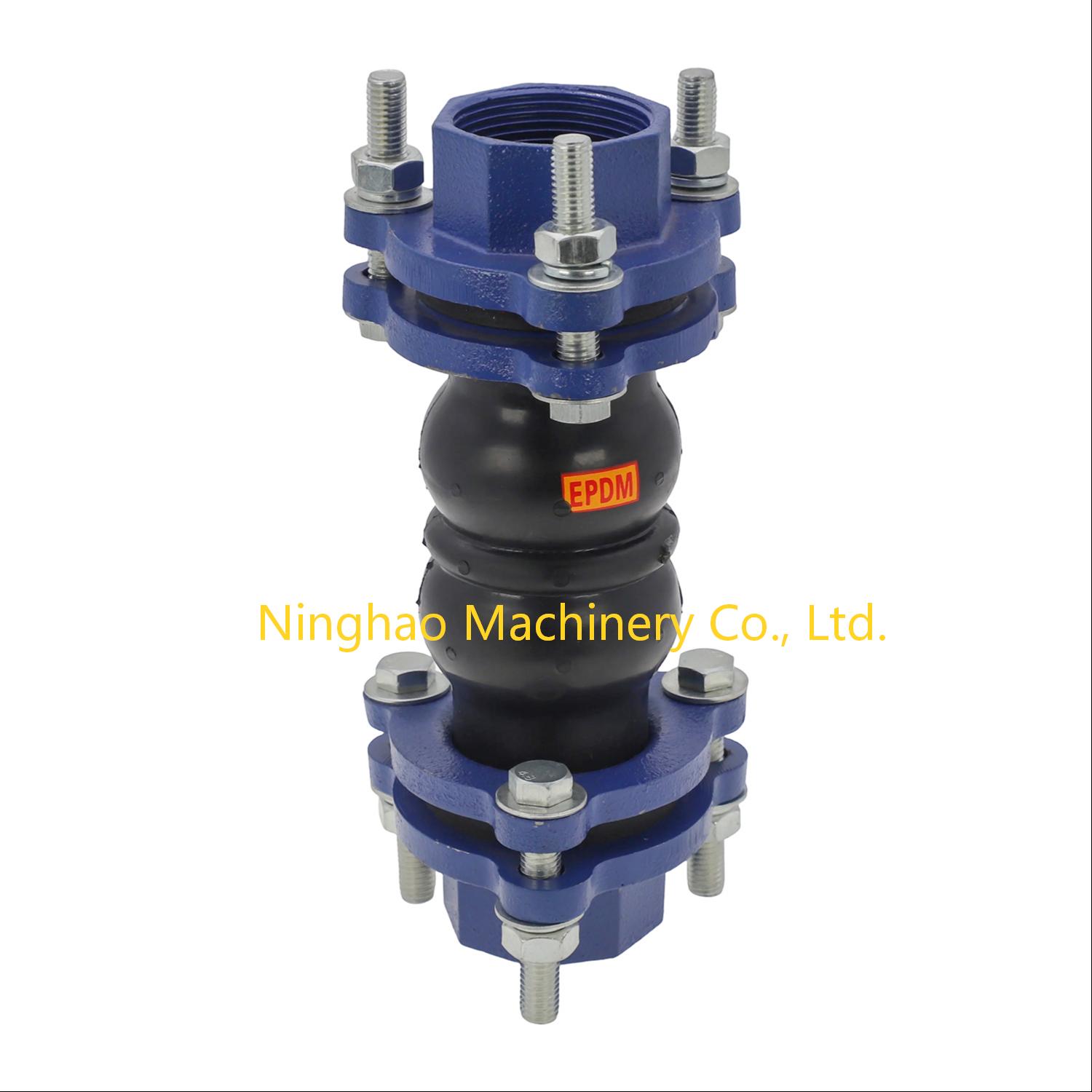

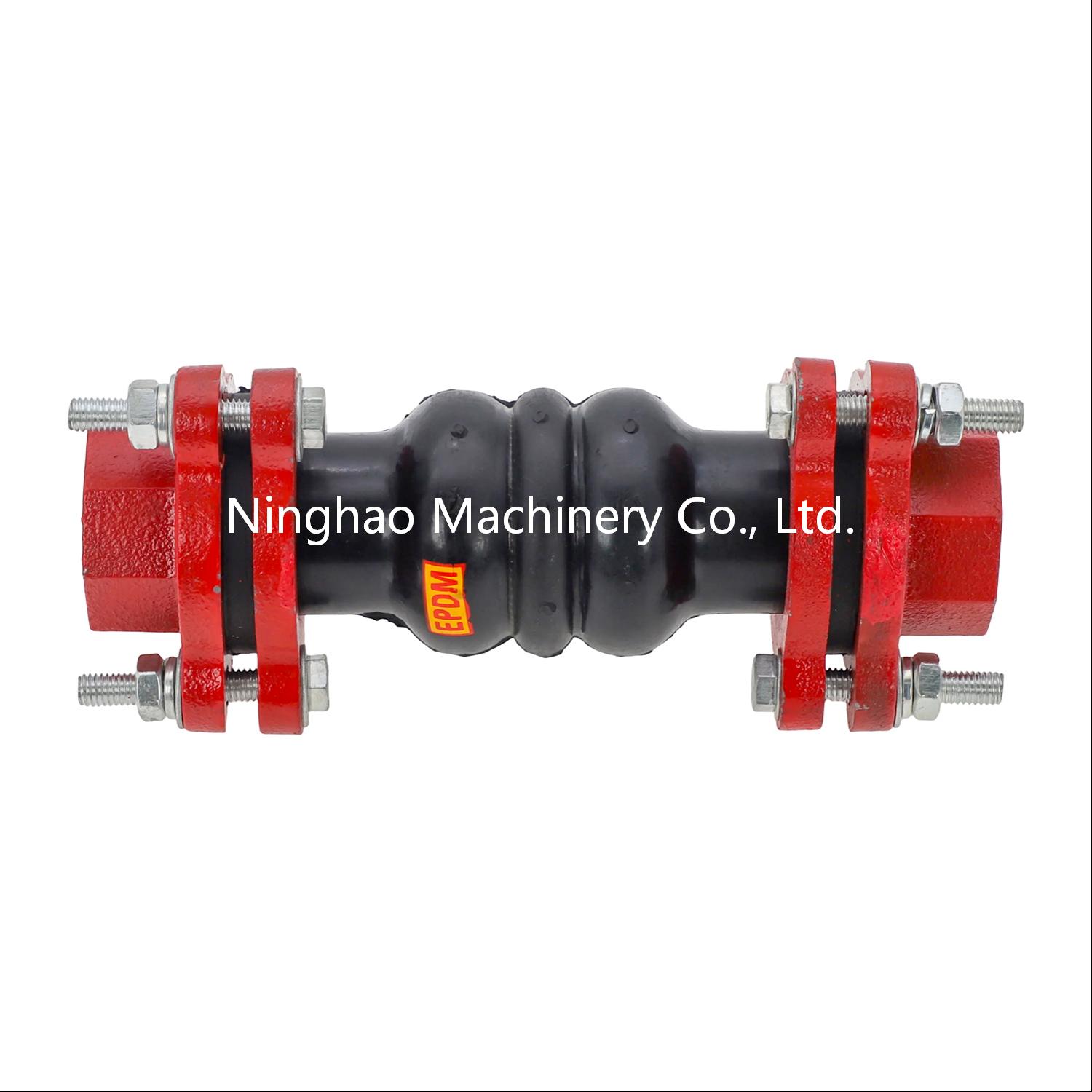

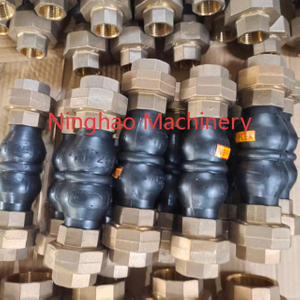

NHFLEX-D Type Threaded Rubber Pipe Joint Expansion Connector for Noise Reduction
This high-performance threaded rubber pipe joint compensator excels in vibration absorption, noise reduction, and stress relief for industrial piping systems. Its reinforced nylon fabric construction ensures durability while handling thermal expansion, pipe movement, and corrosive media.
Standard sizes DN20-DN80 available with OEM customization options.
| Quantity: | |
|---|---|
NHFLEX-D
Ninghao

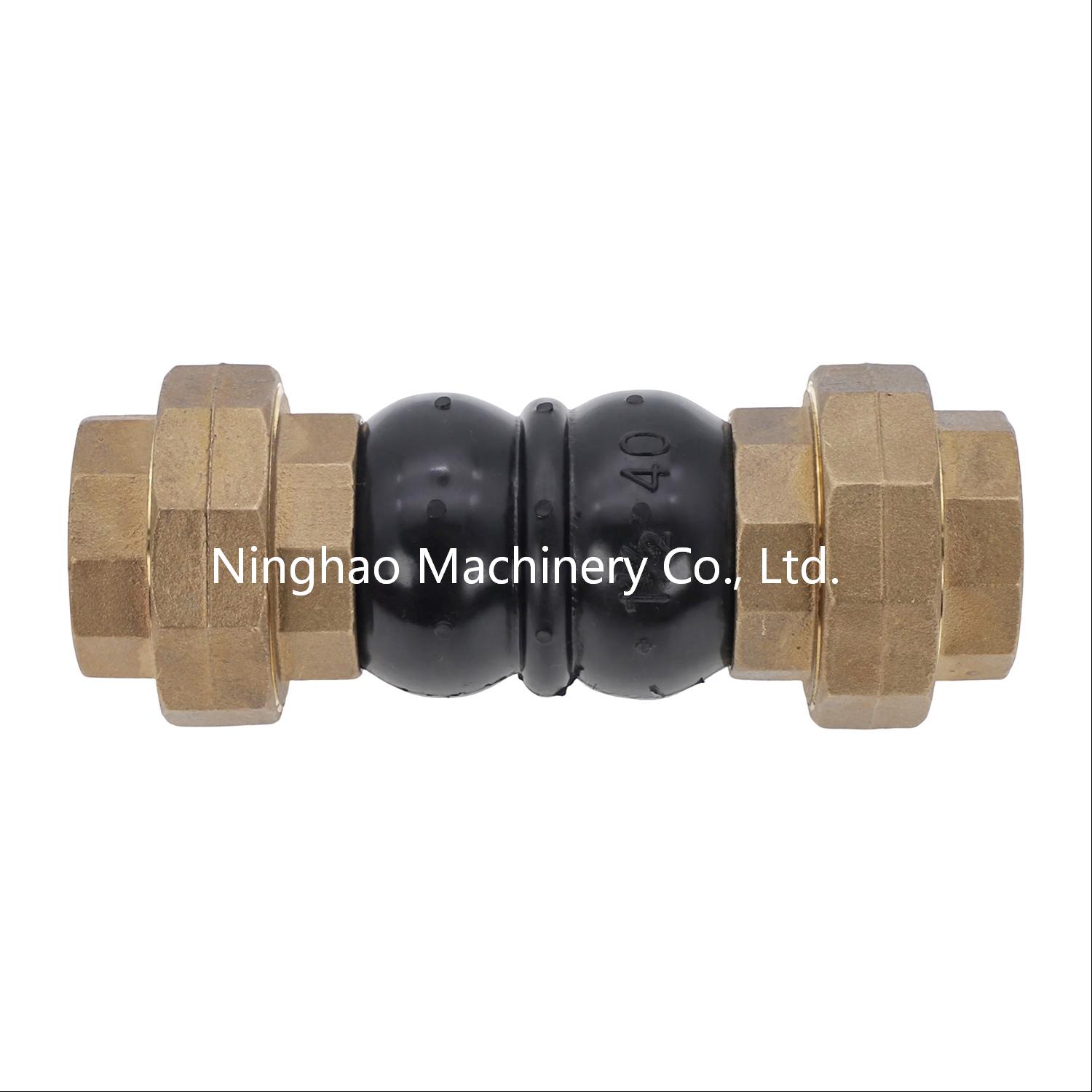

As a premier manufacturer and supplier of industrial piping solutions, we present the Threaded Rubber Pipe Joint Expansion Connector. Engineered for optimal noise reduction and stress relief in commercial fluid networks, this connector ensures seamless operational continuity and structural safety.
Premium elastomeric construction designed for severe environmental conditions
Exceptional vibration isolation and acoustic dampening capabilities
Compact threaded union design enabling rapid, tool-efficient deployment
Available in diverse material grades to suit specific fluid media requirements
The Threaded Rubber Pipe Joint Expansion Connector serves as the vital shock absorber within high-demand fluid handling networks. When heavy-duty pumps activate, the sudden surge of kinetic energy often translates into aggressive mechanical vibrations and a disruptive acoustic hum that can compromise structural integrity over time. This engineered compensator actively swallows those harsh tremors, transforming a turbulent, rattling pipeline into a smooth, whisper-quiet conduit. The tactile resilience of the reinforced rubber body allows it to flex and yield under immense pressure, yet it instantly recovers its precise dimensional form, ensuring continuous, uninterrupted flow.
Beyond mere acoustic control, this flexible connector acts as a crucial safeguard against the unpredictable forces of thermal expansion and structural settling. As ambient and fluid temperatures fluctuate, rigid pipes expand and contract, generating immense stress at connection points. The dense, multi-layered elastomeric core of this joint gracefully absorbs these multi-directional shifts—whether axial compression, lateral deflection, or angular bending. By mitigating these physical strains, the connector drastically extends the lifespan of adjacent valves, pumps, and metal piping, ultimately preventing catastrophic ruptures and costly unscheduled downtime in critical operational facilities.
Specification Parameter | Detail / Value |
|---|---|
Product Name | NHFLEX-D TYPE Union Thread Connection Flexible Rubber Expansion Joint |
Size Range | DN20 - DN80 |
Max. Working Pressure | 2.0 Mpa |
Test Pressure | 1.5 times working pressure |
Burst Pressure | 4 times working pressure |
Operating Temperature | -20 ºC to 100 ºC |
Vacuum Rating | 101.3 KPa (760 mmHg) |
Applicable Media | Sea Water, Drinking Water, Oils, Gases, etc. |
Union Standard | BSPT, NPT (Other standards available upon request) |

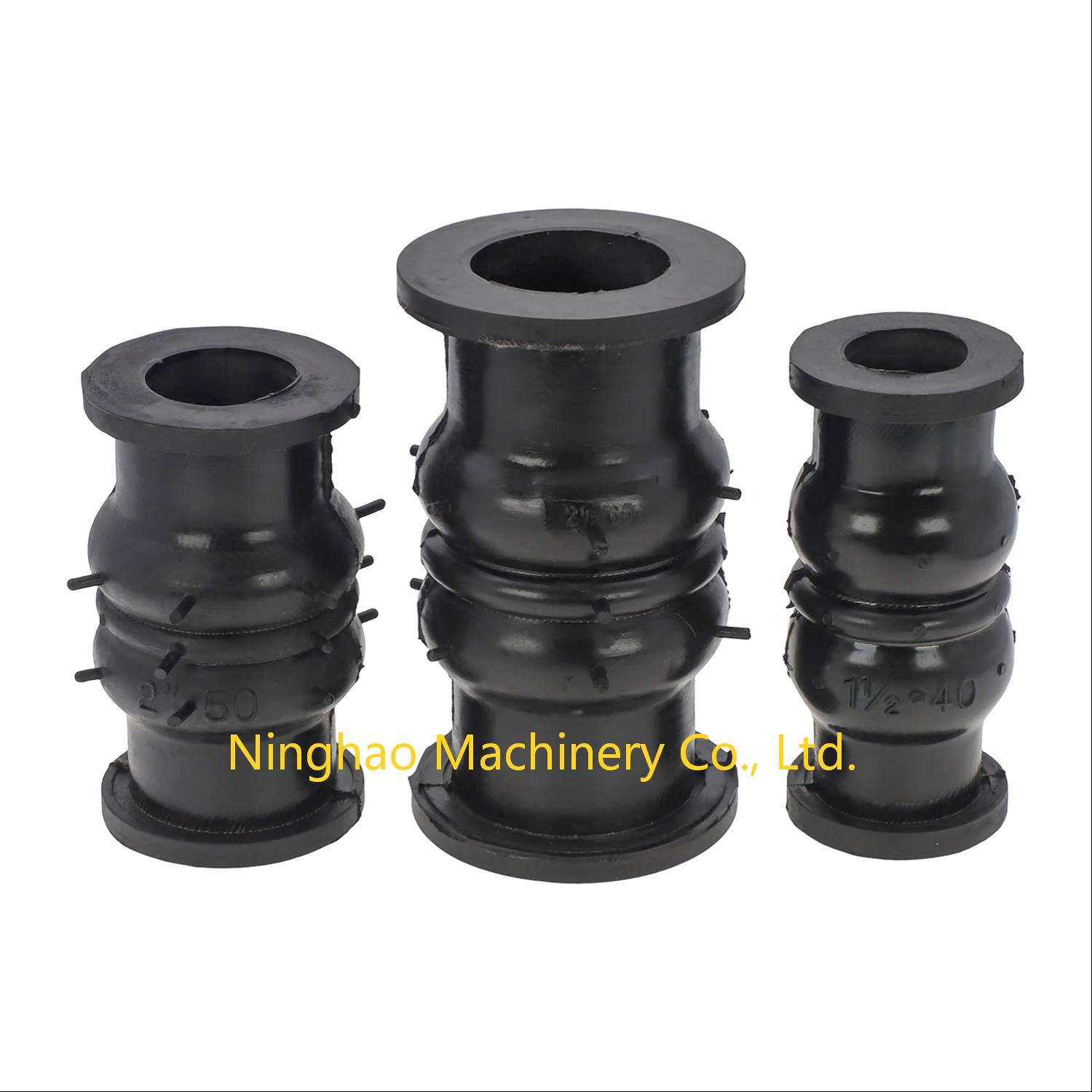

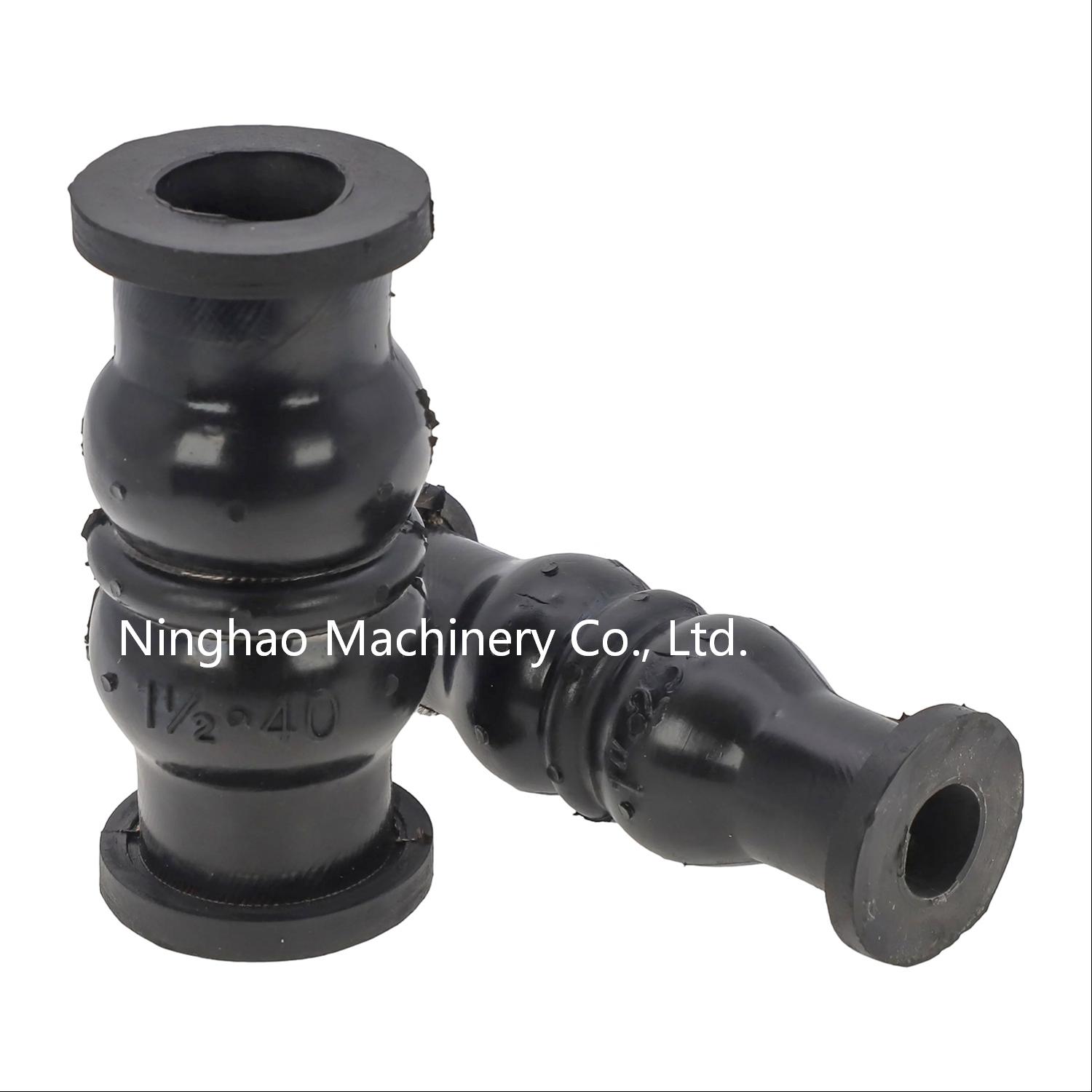

Body Inner/Outer Layer Material | NR, EPDM, NBR, FKM |
Reinforced Fabric Material | Nylon |
Union Material | Zinc Plated/Sprayed Carbon Steel, Cast Iron, Bronze, Stainless Steel |
Modern piping infrastructure demands components that do more than just connect; they must actively protect and enhance the entire system. Our threaded rubber expansion joints are meticulously engineered to deliver superior mechanical protection, fluid integrity, and operational silence. By integrating advanced polymer science with robust metallurgical union fittings, these connectors provide a comprehensive defense against the most common causes of pipeline failure.
Acoustic and Kinetic Isolation: The specialized rubber matrix acts as a dense acoustic barrier, actively dampening the sharp, metallic clatter of pump startups and continuous flow resonance, resulting in a safer, quieter facility.
Dynamic Stress Relief: Designed to breathe with your system, the flexible core effortlessly accommodates thermal elongation and contraction, relieving dangerous tension from rigid anchor points.
Unyielding Leak Prevention: A precision-molded internal profile ensures a flawless, tight seal against the union fittings, eliminating the risk of hazardous media weeping even under fluctuating pressure cycles.
Galvanic Corrosion Defense: By introducing a non-conductive elastomeric break in the metal piping run, these joints effectively halt the destructive progression of galvanic corrosion between dissimilar metals.
Understanding the rigorous demands of industrial fluid management requires a deep dive into the technical capabilities of our expansion connectors. Every aspect of this product has been optimized to solve complex engineering challenges, ensuring your fluid transport systems operate at peak efficiency.
Material & Corrosion Resistance: Formulated from a selection of premium elastomers including EPDM, NBR, NR, and FKM, these joints exhibit formidable resistance to chemical attack, abrasion, and atmospheric aging. They confidently manage a diverse array of media, from aggressive sea water and potable drinking water to abrasive oils and volatile gases.
Vibration & Noise Reduction: Leveraging exceptional elastic deformation capabilities, the core structure isolates and absorbs the aggressive mechanical vibrations generated by heavy machinery. This effectively breaks the transmission path of structural noise, guaranteeing a smoother, quieter operational footprint.
Movement Compensation: The connector provides high-efficiency compensation for multi-dimensional displacements. It effortlessly absorbs axial, lateral, and angular shifts caused by severe thermal fluctuations, violent equipment tremors, or gradual foundation settling, shielding the broader network from stress fractures.
Specifications & Adaptability: Available in a versatile size range from DN20 to DN80, these units feature internationally recognized BSPT and NPT threaded union connections. Engineered to withstand a maximum working pressure of 2.0Mpa, they are perfectly scaled for the rigorous demands of small to medium-sized commercial networks.
Installation & Maintenance: The compact threaded union architecture guarantees exceptional inherent sealing without the need for cumbersome flange alignment or hazardous hot welding. This plug-and-play methodology enables rapid installation and extraction, drastically cutting down labor costs and facility downtime.
Quality Control & Safety: Safety is embedded in the manufacturing DNA. Each unit features a high-tensile nylon fabric reinforcement layer and undergoes punishing pressure validations—routinely tested at 1.5 times the working pressure, with a verified burst threshold of 4 times the operational load, ensuring absolute reliability in high-vacuum and high-pressure scenarios.
Application Scenarios: Highly adaptable and universally trusted, these connectors are the component of choice for demanding environments such as HVAC climate control, municipal water distribution, marine vessel construction, chemical processing plants, fire suppression networks, and heavy fluid transport systems.
