PN16 Anti Vibration Rubber Metal Pipe Connectors

Standard Specification:
Max.Working Pressure:   1.0Mpa
Operating Temperature:   -20ºC-100ºC
Applicable Media:   Sea Water, Drinking Water, etc.
Flange Standard:   DIN PN10 PN16
Component Parts:
Item Part Material
1 Body:   NR, EPDM, NBR
2 Flange:   Cast Steel
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • NHFLEX-C

  • Ninghao

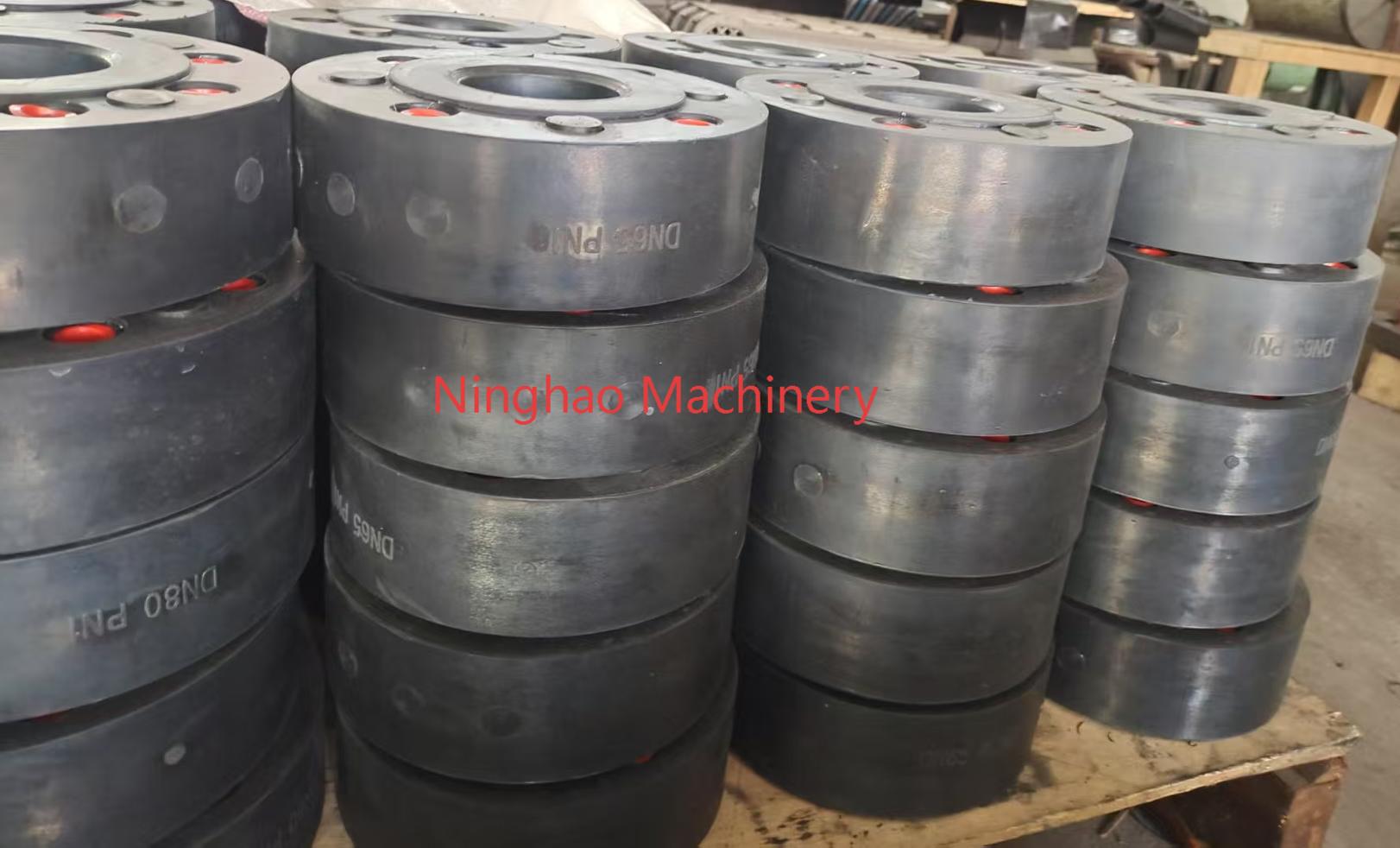

NHFLEX-C TYPE Rubber Metal Pipe Connector: Compacted Joint and Vibration Damping Mount

The NHFLEX-C type rubber-metal pipe connector, often referred to as a compacted rubber expansion joint, is engineered for industrial fluid systems. These connectors are typically installed in proximity to pumps, compressors, regulators, valves, motors, and various mechanical equipment. Their primary function is to mitigate the transmission of mechanical noise and absorb localized vibrations within pipeline configurations.

High Duty Rubber Metal Pipe Joint for Movement Compensator
High Duty Rubber Metal Pipe Joint for Movement Compensator

Structural Design

High Duty Rubber Metal Pipe Joint for Movement Compensator



The connector features a cylindrical rubber body with vulcanized flanges integrated into the flange holes. The body construction consists of an EPDM elastomer core combined with two flanged inserts. This design enables a self-sealing capability, eliminating the need for additional gaskets or external seals during installation.

Operational Characteristics

  • Corrosion Resistance: Fabricated from high-grade elastomers, these connectors demonstrate inherent chemical resistance, making them compatible with various media, including water, oil, and specific industrial gases.

  • Elastic Deformation: The rubber body is designed to absorb mechanical stresses resulting from temperature fluctuations, equipment vibration, or minor pipeline misalignments, thereby protecting the integrity of the connected piping system.

  • Vibration and Noise Dampening: These units act as effective barriers, minimizing the propagation of structural-borne noise and vibrations, contributing to a more stable operational environment.

  • Simplified Installation: The streamlined construction ensures straightforward integration into existing pipe runs, promoting ease of maintenance and reducing labor requirements.

Product Parameters

Standard Specification:

Max.Working Pressure

1.0Mpa

Operating Temperature

-20ºC-100ºC

Applicable Media

Sea Water, Drinking Water, etc.

Flange Standard

DIN PN10 PN16

Component Parts:

Item

Part

Material

1

Body

NR, EPDM, NBR

2

Flange

Cast Steel

NHFLEX-C TYPE Rubber Joint Size Chart:

SIZE

LENGTH

DIN PN10

L1

DN

F/F

D

D1

n-M

(mm)

(mm)

(mm)

(mm)

(mm)

20

70

109

75

4 X M12

12

25

70

119

85

4 X M12

16

32

70

145

100

4 X M16

16

40

70

156

110

4 X M16

16

50

70

171

125

4 X M16

16

65

70

192

145

4 X M16

16

80

70

207

160

8 X M16

18

100

70

227

180

8 X M16

18

125

70

257

210

8 X M16

18

150

70

294

240

8 X M20

18

200

90

343

295

8 X M20

20

Installation Guidelines

  • Ensure the pipeline system incorporates fixed anchor points and proper alignment to effectively absorb axial forces.

  • Connectors must be installed in a tension-free state.

  • Maintain a standard mounting length of 70mm; avoid inducing stress via twisting, bending, or excessive tensile loading during assembly.

  • Position the unit in an accessible location to facilitate routine inspection and maintenance.

  • No additional gaskets are necessary, as the integrated rubber protrusion provides a reliable seal at the interface.

  • Protect the joint from direct exposure to heat sources, such as welding equipment or prolonged UV/sunlight.

  • Avoid direct contact between the rubber surface and sharp fitting edges during assembly.

Main Products

High Duty Rubber Metal Pipe Joint for Movement Compensator

The PN16 Anti Vibration Rubber Metal Pipe Connectors are critical protective components designed for modern industrial fluid transport systems. By addressing common engineering challenges such as mechanical stress, equipment vibration, and structural shifts, these connectors ensure the long-term stability and safety of your piping infrastructure. They are widely utilized in HVAC networks, water treatment facilities, chemical processing lines, and power generation plants to optimize system performance and reduce maintenance costs.

High Duty Rubber Metal Pipe Joint for Movement Compensator

Core Functions in Pipeline Systems

1. Compensating for Thermal Expansion and Contraction

Industrial pipelines frequently transport fluids at varying temperatures or operate in environments subject to significant climate fluctuations. This naturally leads to the thermal expansion and contraction of metal pipes. Without proper compensation, these dimensional changes generate severe internal stress, potentially causing pipe buckling, flange distortion, or catastrophic structural failure. Our rubber expansion joints act as essential flexible links, safely absorbing these thermal movements. By accommodating axial compression and extension, they relieve thermal stress, thereby protecting the pipes from damage and extending the service life of the entire network.

2. Absorbing Vibrations and Impacts

Pumps, compressors, and other rotating machinery constantly generate mechanical vibrations and hydraulic shocks during operation. If left unchecked, these vibrations transmit through rigid pipework, leading to metal fatigue, loosened fittings, and excessive ambient noise. The elastomeric body of these anti-vibration connectors provides excellent dampening characteristics. They effectively isolate and absorb stresses caused by vibrations and impacts in the pipeline system, significantly reducing the transmission of vibrations and noise. This vital function helps protect sensitive downstream equipment and instrumentation from vibration-induced damage, creating a safer and more stable operational environment.

3. Compensating for Pipe Movements and Misalignment

Achieving perfect alignment during pipeline installation is often challenging. Furthermore, during ongoing operation, pipeline systems may experience certain degrees of pipe movement due to ground settlement, structural shifts, or the sheer weight of the equipment. These rubber expansion joints are engineered to compensate for these movements, including lateral deflection and angular rotation. This flexibility not only simplifies the installation process by allowing for slight initial misalignments but also continuously adapts to structural shifts over time, ensuring the proper and uninterrupted functioning of the pipeline system.

4. Reliable Leak Prevention and Sealing

Maintaining a secure, leak-free system is paramount in fluid handling, especially in pressurized environments. Rigid metal-to-metal connections are prone to developing micro-leaks under continuous dynamic stress or vibration. Rubber expansion joints provide superior sealing performance in pipeline systems. The resilient rubber construction maintains a tight, reliable seal even under fluctuating load conditions, effectively reducing the risk of leaks. By preventing fluid loss and potential environmental contamination, these connectors play a crucial role in ensuring the safe, efficient, and compliant operation of the pipelines.

About Us

Founded on November 19, 2010, Ningjin NINGHAO Machinery Co.,Ltd. has established itself as a reliable manufacturer and supplier of pipeline connection solutions. Strategically located at No.2 Taishan Road, Economic and Technological Development Zone, Ningjin County, Dezhou City, Shandong Province, our facility spans an impressive area of 120 acres.

With a dedicated workforce of over 80 skilled employees, we are equipped with advanced production machinery and comprehensive inspection equipment. This robust infrastructure allows us to maintain strict quality control throughout the manufacturing process, ensuring that every product meets the demanding requirements of modern industrial applications. Our commitment to manufacturing excellence helps procurement teams reduce sourcing risks and secure dependable components for their projects.

High Duty Rubber Metal Pipe Joint for Movement Compensator

Our Products & Manufacturing Capabilities

We specialize in the production and supply of a comprehensive range of rubber expansion joints designed to accommodate thermal expansion, reduce vibration, and compensate for pipeline misalignment. Our core product portfolio includes:

  • Single ball flexible rubber expansion joints

  • Double sphere rubber expansion joints

  • Rubber-metal pipe connectors

  • Thread-connection rubber expansion joints

  • Tie rods sets for rubber expansion joints

To ensure optimal compatibility with various fluid media and operating environments, our rubber expansion joints are manufactured using premium main materials, including EPDM, NBR, NR, and FR. Furthermore, we provide versatile connection options to match international pipeline specifications. Our flange standards cover ANSI150, DIN, and JIS10K, with flange materials available in carbon steel, stainless steel, and casting steel. This extensive material and standard selection ensures that engineers and purchasing managers can find the exact specifications required for their specific fluid handling systems.

High Duty Rubber Metal Pipe Joint for Movement Compensator

Global Market & Export Experience

Over the years, Ningjin NINGHAO Machinery Co.,Ltd. has accumulated extensive experience in international trade, building a strong reputation across the global market. We have successfully established wide and stable business relations with clients worldwide. Currently, our main supply countries include Spain, Italy, the Netherlands, Austria, France, Vietnam, India, and many other regions.

Our deep understanding of international export standards and our dedication to consistent product quality have earned us high praise from our global customers. We continuously strive to be a trusted partner in your supply chain, offering reliable communication, timely order processing, and long-term value for your procurement needs. We sincerely look forward to cooperating with you.

High Duty Rubber Metal Pipe Joint for Movement Compensator
High Duty Rubber Metal Pipe Joint for Movement Compensator

Packaging & Shipping

We understand that proper packaging is crucial for maintaining product integrity during long-distance transportation. Our rubber-metal pipe connectors and expansion joints are carefully packed using industry-standard protective materials to prevent physical damage, moisture ingress, or deformation during transit.

Whether your orders are shipped via sea freight or air cargo, our professional logistics team ensures that all goods are securely loaded and dispatched efficiently. We are committed to delivering your pipeline components safely and on schedule, minimizing project downtime and streamlining your inventory management.

High Duty Rubber Metal Pipe Joint for Movement Compensator
