Metal vs. Rubber Expansion Joints: What Is the Difference?

Comparing Metal and Rubber Expansion Joints

Explore key differences between metal and rubber expansion joints.

Why do so many industries need the right expansion joint? Power plants, chemical factories, and marine systems all want exact solutions. Picking metal or Rubber Expansion Joints changes a lot. It affects how well things work, how long they last, and how safe they are. The pipeline expansion joint market keeps getting bigger. There are thousands of new installations every year in petrochemical, power generation, and water treatment.

I want to help you look at these choices side by side. I will show you how each expansion joint type fits different industrial needs. This way, you can pick the best one for your project.

Key Takeaways

• Metal expansion joints can take a lot of heat and pressure. They are good for hard jobs in places like power plants and chemical factories.

• Rubber expansion joints bend easily and help lower noise and shaking. They are great for systems that move or shake a lot.

• Picking the right joint depends on heat, pressure, movement, and chemicals in your system.

• You need to install and care for joints the right way. This means lining them up and giving them support. Doing this helps them last longer and stay safe.

• Rubber joints cost less at first and help save on repairs. Metal joints cost more at first but last longer in really tough places.

Definitions

Metal Expansion Joints

Metal expansion joints are flexible connectors made from stainless steel or other metals. These joints help pipes move without breaking. The ISO 15348:2002 standard explains how to use these joints. The bellows are the flexible part that lets the joint bend. Sometimes, people call the bellows the arch. Steel rings or other metal parts make the joint stronger. The carcass is the main body of the expansion joint.

• Metal expansion joints can:

• Handle pipes getting bigger or smaller from heat

• Let pipes move in different directions

• Work with high pressure and high heat

People use metal expansion joints when they need something strong. These joints are good for tough jobs like power plants and factories. They last a long time and can stand up to fire, rubbing, and many chemicals.

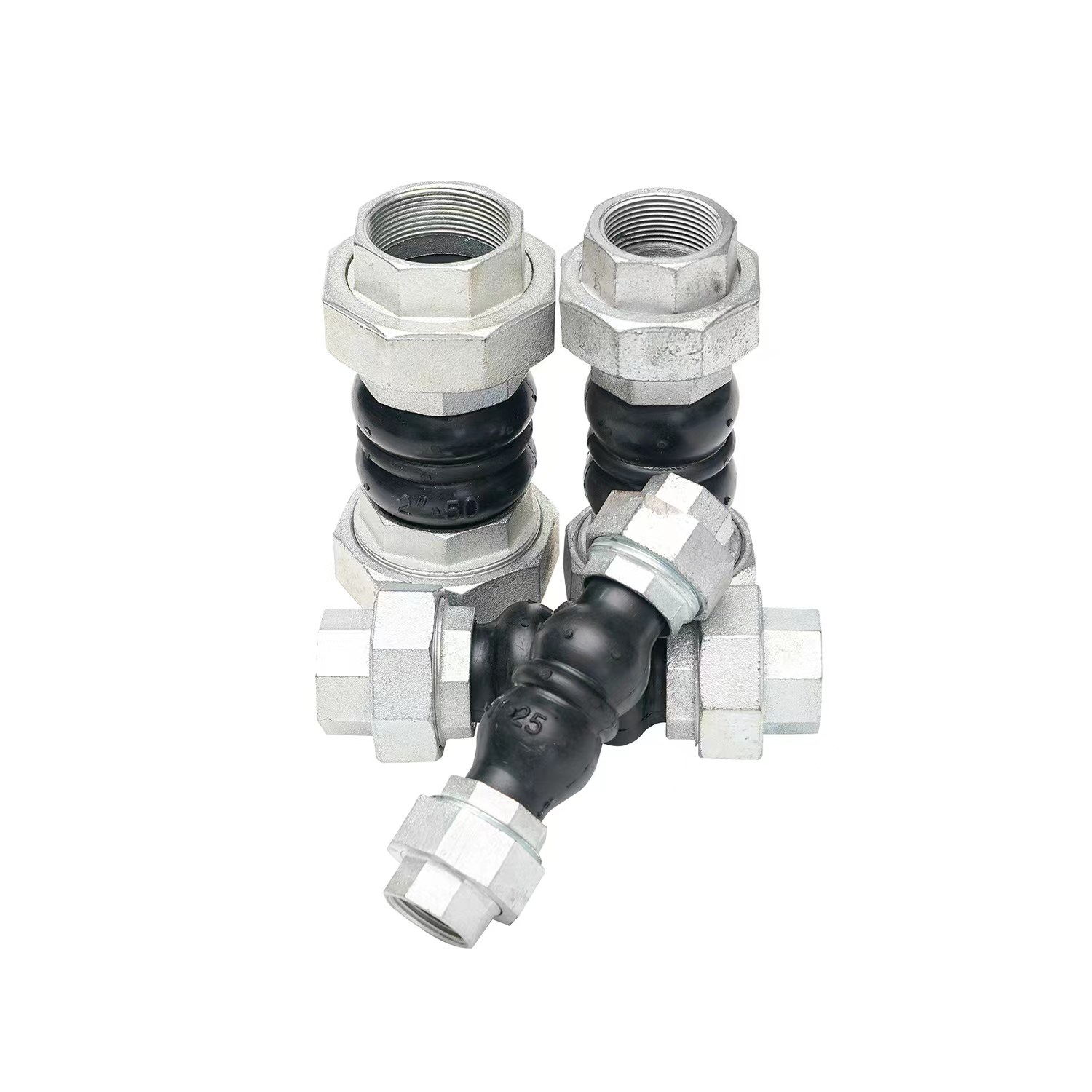

Rubber Expansion Joints

Rubber expansion joints are also called elastomeric expansion joints. They use special rubber materials like EPDM or NBR. These joints are very flexible and help stop shaking and noise in pipes. They can take in shocks and make systems quieter. Rubber expansion joints come in many shapes and sizes. This helps them fit lots of different jobs, like water treatment or HVAC systems.

Here are some important rules for rubber expansion joints:

I pick elastomeric expansion joints when I need to control shaking, movement, or noise. They work best in places without very high heat or pressure. These joints also help keep pipes safe from stress and being out of line. You can find them in many areas, like building sites, water systems, and transportation.

Key Differences

Material and Construction

When I compare metal and rubber expansion joints, I look at what they are made of first. Metal expansion joints use strong metals like stainless steel, nickel alloys, or titanium. These metals help the joint stay strong and work in hard jobs. Stainless steel types such as SS304, SS316, and SS321 are used a lot. They do not rust easily and can handle high heat. Some joints use special alloys like Inconel or Hastelloy for extra safety.

Rubber expansion joints use elastomeric materials. I often see EPDM, NBR, neoprene, and sometimes PTFE linings. These elastomers make the joint bend and resist chemicals. Inside, nylon or polyester fabric makes them stronger. Some types use steel hoops or Kevlar to handle more pressure. The flanges are usually made from carbon steel or stainless steel.

Flexibility and Movement

Rubber expansion joints bend and stretch more than metal ones. They can move in all directions. This makes them good for systems that shake or move a lot. Metal expansion joints can move too, but not as much. They are best for handling heat changes or small misalignment.

I pick a flexible connector made from elastomeric materials when I need the most movement and vibration control.

Temperature and Pressure Limits

Metal expansion joints can handle very high heat and pressure. Some work from -330°F up to 1800°F. Most stainless steel bellows work from -20°F to 650°F and up to 300 psi. Special alloys can go even higher.

Rubber expansion joints work best at lower heat and pressure. Most elastomeric joints handle up to 250°F and less than 250 psi. EPDM can go up to 210°F. NBR and neoprene stay around 170°F. For higher heat or pressure, I always use metal expansion joints.

Noise and Vibration Control

Rubber expansion joints are best for stopping noise and vibration. I use them to make a system quieter. The elastomeric material soaks up sound and stops vibration from moving through pipes. This helps protect pumps and other equipment. Metal expansion joints also help with vibration, but not as much. Their bellows help a little, but rubber joints do a better job.

For the best noise and vibration control, I always suggest rubber expansion joints.

Corrosion and Chemical Resistance

Rubber expansion joints resist many chemicals, acids, and bases. EPDM, NBR, and PTFE linings can handle harsh fluids and gases. The thick elastomeric walls protect against damage from chemicals. Metal expansion joints, even stainless steel ones, can rust over time. This happens if they touch strong chemicals. Special alloys help, but rubber joints often last longer in tough chemical places.

Installation and Maintenance

Rubber expansion joints are easier and faster to install. One or two people can put them in without special tools. They seal fluids and gases well and do not need extra gaskets. Maintenance is easy. I just check for wear or cracks during checks.

Metal expansion joints take more time to install. They are heavier and need special care. Sometimes, I need a team and lifting tools. Maintenance means checking for metal fatigue, cleaning, and making sure the bellows are safe. Both types need to be lined up right to avoid problems.

I always choose the right expansion joint for the job. The differences between metal and rubber expansion joints change how I design and take care of piping systems. Rubber expansion joints give me more flexibility, noise control, and chemical resistance. Metal expansion joints let me handle more pressure, heat, and tough conditions.

Advantages and Disadvantages

Metal Expansion Joints: Pros and Cons

When I work on industrial piping, I pick metal expansion joints for their strength. These joints are very reliable in tough jobs. Here are the main good and bad points I notice:

Advantages:

• I get great performance made for each job. Metal expansion joints work better than many regular options.

• These joints save money over time. They stop machines from breaking and keep work going.

• Safety gets better because metal expansion joints stop leaks. They fit the system just right.

• I can fit them to match how the system moves. This protects the pipes without big changes.

• Metal expansion joints take in axial, lateral, and angular movements.

• They can handle high heat and pressure changes.

• I hear less vibration and noise in the pipes.

• They last a long time in rough places. I use them in power plants, steel mills, oil and gas, and chemical factories.

Disadvantages:

• Metal expansion joints do not like too much stress or movement. They can be the weakest part of the pipes.

• Problems happen when people use them to fix pipe alignment. This makes them move too much and not last as long.

• They can fail if you do not check and care for them. Bad supports change how stress works in the pipes.

• Changes in pressure can make them break early.

• Sometimes, pipe software does not show how expansion joints work. This can cause too much stress and twisting.

Rubber Expansion Joints: Pros and Cons

I often pick rubber expansion joints for systems that need to bend and stop shaking. Here are the good things about rubber expansion joints and some things to watch out for:

Advantages:

• Rubber expansion joints take in axial, lateral, and angular movements. This keeps other parts from breaking.

• They lower noise and vibration. I saw a wastewater plant get 30% quieter after using rubber bellows.

• These joints handle heat and cold changes well. Systems stay safe when temperatures go up or down.

• They save money. They cost less at first and need less fixing. Studies show up to 25% less yearly maintenance cost.

• Rubber bellows do not rust and resist chemicals. I use them in chemical plants and on ships.

• They help systems last longer by taking in stress and stopping wear.

• I see them in HVAC, chemical, power, water treatment, and marine jobs.

Disadvantages:

• Rubber expansion joints cannot take as much heat or pressure as metal ones.

• They may need to be changed sooner in very tough places.

Tip: I always pick the right expansion joint for the system’s needs to get the best results.

Applications

Where to Use Metal Expansion Joints

I pick metal expansion joints when I need strong parts. Power plants use them because they handle high heat and pressure. They work in turbines, boilers, and steam pipes. Chemical plants use them to protect equipment from harsh chemicals. These joints also help with sudden temperature changes. HVAC systems use metal expansion joints in ducts. They stop leaks and help with heat changes. Metal expansion joints absorb vibration and fix small pipe misalignments. I trust them where heat, pressure, or chemicals are too much for other joints.

Tip: I always check the ratings for heat and pressure before I put in a metal expansion joint. This keeps the system safe and working well.

Here are places where I use metal expansion joints most:

• Power plants: turbines, boilers, steam and gas pipes

• Chemical plants: reactors, heat exchangers, chemical pipes

• HVAC: air ducts, AC units, heating systems

• Industrial pipes: high-pressure and high-heat lines

Where to Use Rubber Expansion Joints

I use rubber expansion joints when I need more bending and less shaking. Water treatment plants use them to take in movement and lower stress in pipes. I put them in buildings like hotels, schools, and offices. They keep pumps and compressors from shaking the pipes. Ships also use rubber expansion joints in their pipes, air vents, and water lines. These joints help with ground shifts, heat changes, and shaking from machines.

I always pick the right rubber, like EPDM or PTFE-lined, for each job. I check these joints often to find leaks or damage early. This helps the system work well for a long time.

Differences Between Metal and Rubber Expansion Joints

Performance Comparison

Metal expansion joints work best in places with lots of heat and pressure. I use them in power plants and chemical factories. They can handle very hot temperatures and strong shaking. The metal bellows let the pipes move a little, but not as much as rubber joints. Rubber expansion joints are more flexible. I use them when I need to stop vibration and noise. They work well in water plants, HVAC systems, and places where pipes move a lot. The rubber joint soaks up shocks and keeps pipes from breaking. I have seen these joints stop leaks and protect against chemical damage. They help systems run better and cut down on repairs.

Here is a quick comparison:

Note: I always pick the expansion joint that fits the system’s needs best.

Cost and Longevity

I always think about cost and how long the joint will last. Rubber expansion joints cost less at first. They also save money on repairs. In water plants, I have seen repair costs drop by 40% after using rubber joints. These joints last a long time, even in tough places. If I pick the right rubber joint and put it in right, it can last over a year in harsh spots.

Metal expansion joints cost more to buy and put in. They need more care and checks. But they last longer in places with lots of heat or pressure. I use them when rubber joints cannot do the job. Sometimes, I see metal joints made special for certain systems.

• Rubber expansion joints:

• Cost less at first

• Need less fixing

• Cut down on repairs

• Help pipes last longer

• Metal expansion joints:

• Cost more at first

• Last longer in tough places

• Can be made special for some jobs

New materials, like millable polyurethane liners, help rubber joints last even longer. I have seen them last two or three times longer than regular rubber. I always look at the total cost, not just the price, when I pick an expansion joint.

How to Choose

Selection Factors

When I select an expansion joint, I always start by looking at the system’s pressure and temperature. I match the joint’s ratings to the job. If I work in a high-pressure plant, I know the difference in using metal and rubber joints matters. Metal expansion joints handle up to 1000 psi and extreme heat. Rubber joints work well up to 250 psi and moderate temperatures. I check the movement needs. If the pipes move a lot or shake, I pick a joint that can bend and absorb vibration.

Here’s a table I use to compare:

I also think about chemical exposure. In chemical plants, I check if the joint material resists acids or oils. I use PTFE-lined or EPDM rubber for harsh chemicals. I always plan for the right size and shape, so the joint fits the system.

Practical Tips

I follow a checklist every time I install rubber joints or metal ones:

1. I support all pipes so the expansion joint does not carry the load.

2. I anchor pipes near the joint to absorb thrust.

3. I align pipes before installation. I keep misalignment under 1/8 inch.

4. I install the joint at its neutral length.

5. I use control rods for high-pressure jobs to stop overextension.

6. I tighten bolts in a cross pattern for a good seal.

7. I check for leaks after the first run and retighten bolts if needed.

Tip: I never use an expansion joint to fix pipe misalignment. That mistake can cause leaks or early failure.

In my experience, easy installation saves time and money. I always consult with manufacturers when I face special chemicals or high movement. I avoid common mistakes like skipping chemical checks or ignoring maintenance needs. When I follow these steps, I get a safe and long-lasting system.

I notice big differences between metal and rubber joints. Metal joints are best for places with lots of heat and pressure. Rubber joints help stop shaking and noise. This makes them good for tough places. I always pick the joint that fits what the system needs. Here is my checklist:

• Look at the temperature and pressure limits.

• Make sure everything lines up and is held in place.

• Check if the materials work well together.

• Do what the maker says to do.

I ask experts for help with hard projects.

FAQ

What is the main difference between a metal expansion joint and a rubber joint?

The biggest difference is what they are made of. Metal expansion joints work with higher heat and pressure. Rubber joints bend more and stop shaking better. I pick the one that fits my system’s needs.

Can I use a Rubber Expansion Joint for high-temperature applications?

I do not use rubber joints for very hot places. Most rubber expansion joints work best under 230°F. If it gets hotter, I always use a metal expansion joint to stay safe.

How do I know which expansion joint to choose for my project?

I check the heat, pressure, movement, and chemicals in my system. If I need more bending and less noise, I use a rubber joint. For very hot or high-pressure jobs, I use a metal expansion joint.

Are rubber joints good for chemical plants?

Yes, I use rubber expansion joints in chemical plants a lot. EPDM or PTFE-lined rubber joints can handle many chemicals. I always look at a chart to make sure the rubber works with the chemicals.

How long does a Rubber Expansion Joint last?

A good rubber expansion joint can last for years if used right. If I put it in the right way and check it often, it keeps my system safe and needs little fixing.
