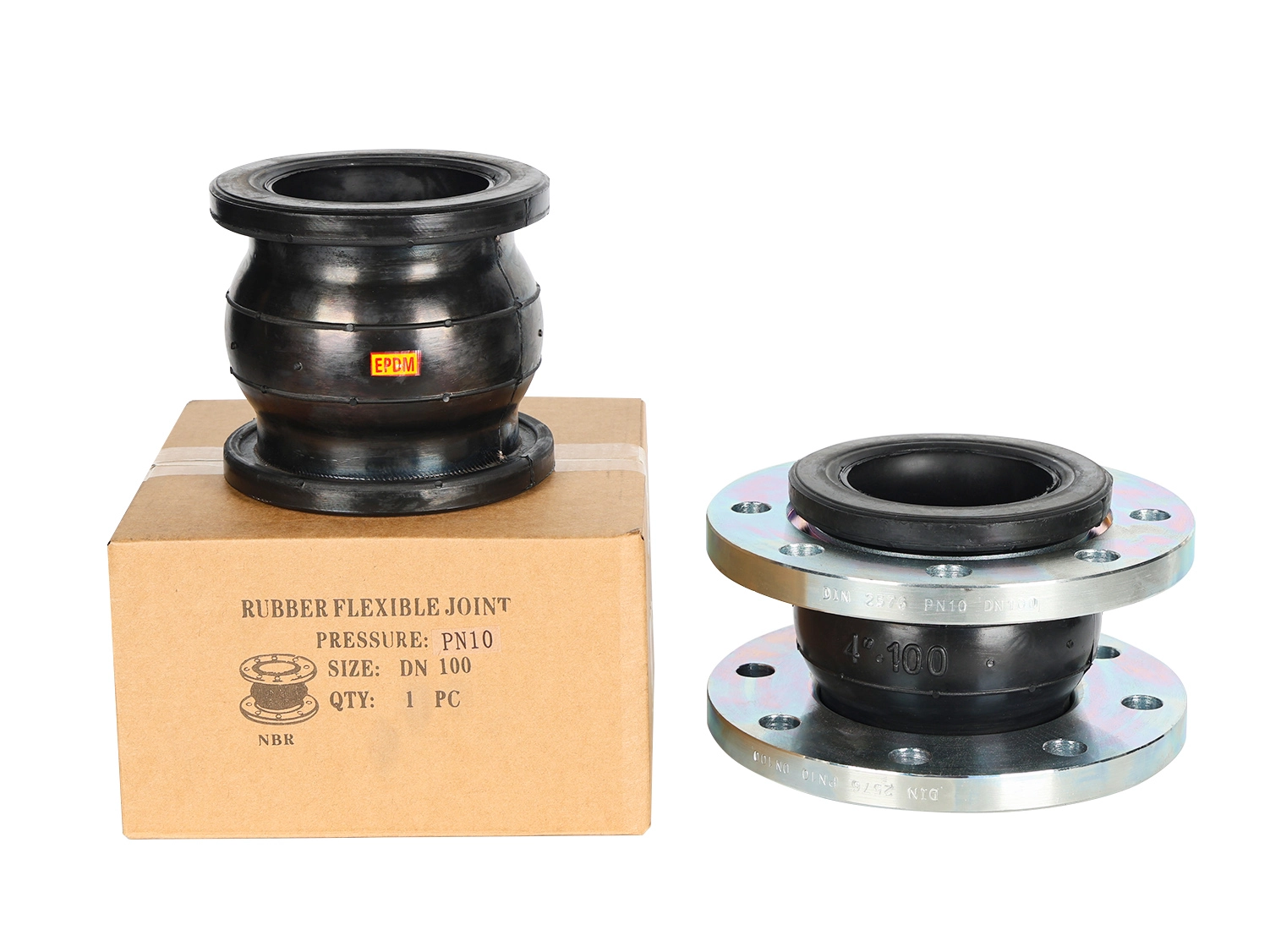

NBR Rubber Flexible Joint SS304 Flanged Water Pipe Joint

NHFLEX-A TYPE Flanged Single Ball Flexible Rubber Expansion Joints/Shock Absorber/Noise Absorber/Vibration Dumper

Rubber joint features:
Small size, light weight, good elasticity, easy installation and maintenance

     Rubber joints consist of inner and outer rubber, cord layer and traveler, which are vulcanized and then combined with metal flanges or loose sleeves of parallel joints, are mainly used in pipelines with large vibration and frequent changes of heat and cold, which can absorb the vibration generated by the work of the pump, thus reducing the noise and avoiding the loosening of the screws, and thus are also called shock absorbers or vibration dampers.

Rubber flexible joint is a kind of pipeline connection parts, can connect two different materials, different straight through or different axis of the pipeline. Rubber flexible joint can relieve the pipeline system due to thermal expansion and contraction, frequent vibration and other reasons caused by pipeline deformation, displacement and other problems, so as to protect the safety operation of the pipeline.

     When working, it can reduce the noise transmitted by the structure, with strong shock-absorbing ability. Rubber joints have good comprehensive performance and are widely used in marine industry, chemical industry, construction, plumbing, fire fighting, electric power and other basic projects.

Application:
     Water, Sea Water, Fresh Water, Warm Water, Weak Acid Fluid, Soda Fluid, etc. Pipeline
     Connected with pumps, valves, firefighting equipment, etc.
Selected High Quality Rubber Material
  Resistant to oil, oxidation, ozone and corrosion
  Natural synthetic elastic rubber with internal reinforcement
  Logo can be customized
  No scratches, wear resistant, and smooth appearance

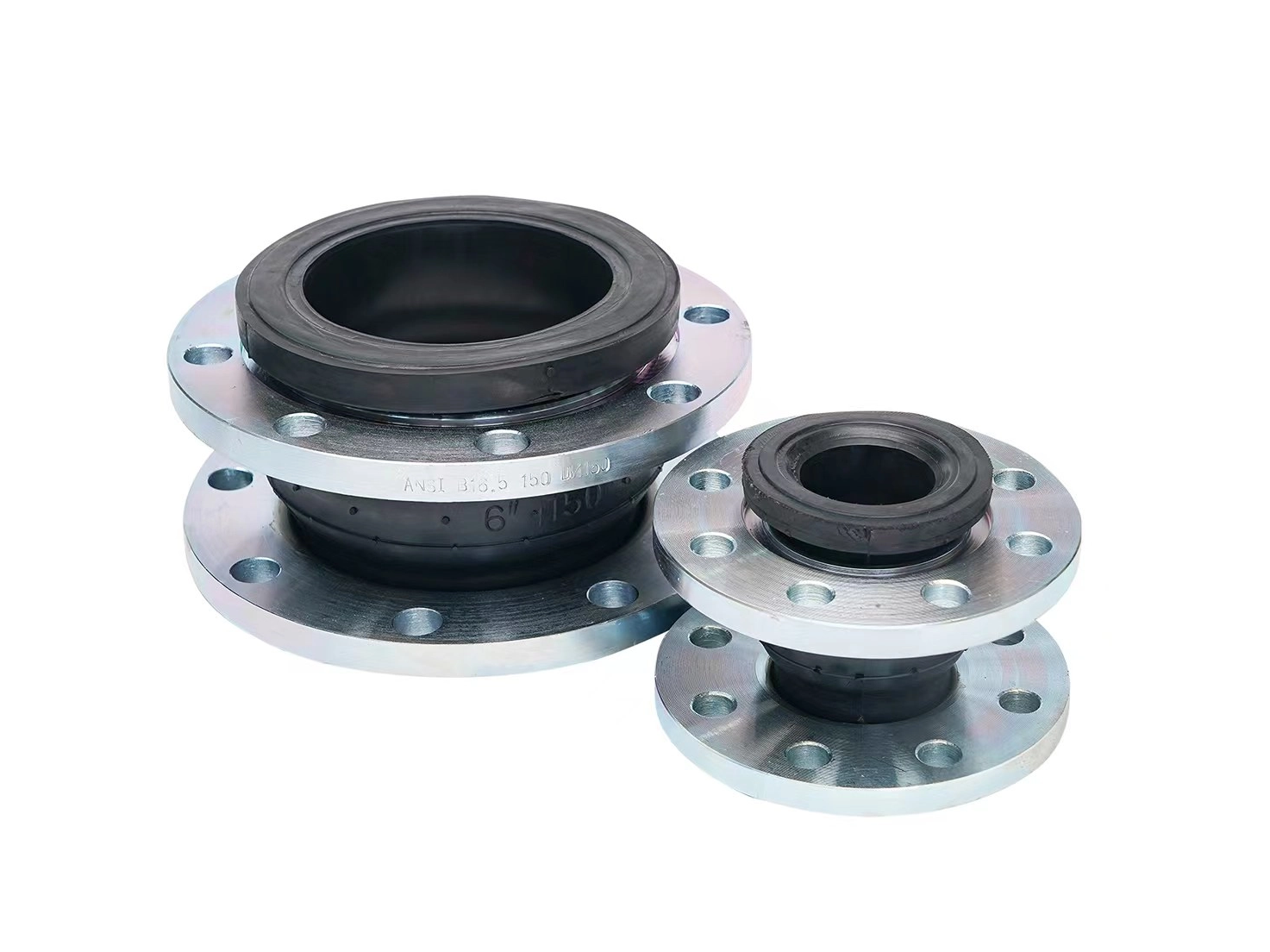

Thickened Flange
  Hot Dip Galvanized
  DIN PN10, PN16, PN25
  ANSI 150LB, 300LB
  JIS 10K Standard

Flange Optional
  Surface spraying high quality finishing flange
  Flange color can be customized
  Flange material optional







Characteristics:

1. Corrosion Resistance: Rubber expansion joints are made from high-quality rubber materials that exhibit excellent resistance to corrosion. They can be used with various media such as water, oil, and gases.

 2. Elastic Deformation: Rubber expansion joints can absorb stresses and vibrations caused by temperature changes, vibrations, or pipe movements in pipeline systems through their elastic deformation. This helps protect the pipeline system from damage.

 3. Shock Absorption and Noise Reduction: Rubber expansion joints effectively reduce the transmission of vibrations and noise in pipeline systems, providing a quieter and more stable working environment.

 4. Easy Installation and Maintenance: Rubber expansion joints have a simple structure, making them easy to install and maintain. They also have low maintenance costs.

Standard Specification:

Component Parts:
