Views: 0 Author: Site Editor Publish Time: 2025-07-16 Origin: Site
Rubber expansion joints are critical components in various industrial piping systems. They serve the essential function of absorbing movements and vibrations, accommodating misalignments, and reducing system stress. Understanding the pressure dynamics at these joints is vital for ensuring system integrity and longevity. In this comprehensive analysis, we delve into the factors affecting the pressure at rubber expansion joints, exploring their design, applications, and the principles governing their operation.
The pressure experienced by a rubber expansion joint is influenced by several variables, including the medium transported, temperature fluctuations, and the mechanical forces at play. Professionals in the field must consider these factors when selecting and installing Rubber Expansion Joint solutions suitable for their specific applications.

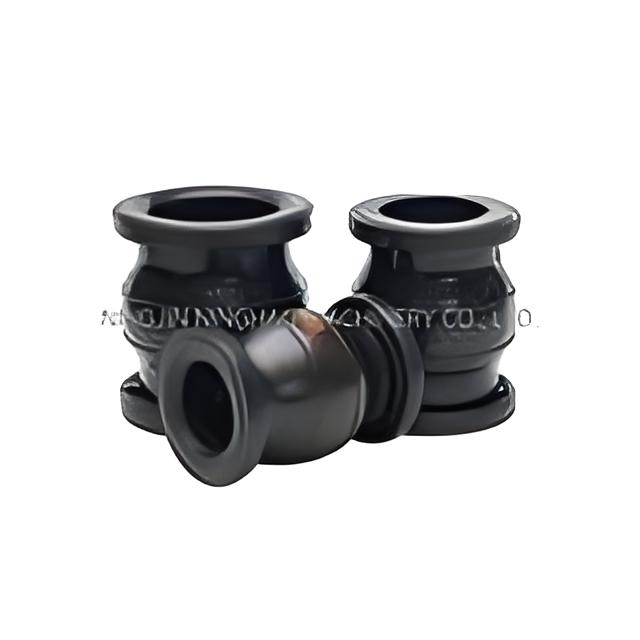

Rubber expansion joints are flexible connectors fabricated from natural or synthetic elastomers and fabrics. They are designed to absorb dimensional changes such as those caused by thermal expansion or contraction in piping systems, ducts, and vessels. These joints are also adept at isolating vibration, reducing noise, and compensating for misalignment.
The construction of rubber expansion joints typically involves a combination of rubber materials reinforced with fabric and sometimes metal. The rubber provides flexibility and resilience, while the reinforcement materials add strength and durability. The joints may include components such as flanges, tie rods, and arch profiles to enhance their performance under various pressure conditions.
For instance, a flanged rubber expansion joint incorporates flanges for easy connection to existing piping systems. The design must ensure that the joint can withstand the internal pressure of the system while maintaining flexibility.
Selecting appropriate materials is crucial for the joint's performance. The rubber compound must be compatible with the medium inside the piping system and withstand the operating temperature and pressure. Common rubber materials used include EPDM, Neoprene, Nitrile, and Natural rubber, each offering different resistance to chemicals, temperature, and abrasion.
Understanding the pressure at rubber expansion joints involves analyzing both internal and external forces acting upon them. The internal pressure is due to the fluid or gas moving through the system, while external factors include thermal expansion, mechanical movements, and environmental conditions.
The internal pressure that a rubber expansion joint must withstand is determined by the system's operating pressure. It is essential to select a joint with a pressure rating that exceeds the maximum operating pressure to ensure safety and durability. Manufacturers provide pressure ratings based on standard tests, but real-world conditions may vary, necessitating a margin of safety.
External pressures result from environmental factors and mechanical forces. Thermal expansion causes pipes to lengthen or shorten, exerting pressure on the joints. Vibration from pumps and compressors can also impose dynamic loads. Proper design must account for these factors to prevent joint failure.
Accurate calculation of pressure at rubber expansion joints requires an understanding of fluid mechanics and material properties. Engineers use formulas to estimate the forces exerted on the joints, considering factors such as fluid velocity, pipe diameter, and temperature changes.
The basic formula for calculating internal pressure is derived from the hoop stress equation:
Hoop Stress (σ) = (Pressure (P) × Diameter (D)) / (2 × Thickness (t))
This equation helps determine the stress on the joint's material, ensuring it remains within safe limits. Engineers also perform finite element analysis (FEA) to simulate stress distribution and identify potential failure points.
Including a safety factor in the design compensates for uncertainties in material properties and operating conditions. Typically, a safety factor of 4:1 is used for rubber expansion joints, meaning the joint can handle four times the maximum operating pressure before failure.
Rubber expansion joints are used across various industries, including power generation, chemical processing, water treatment, and HVAC systems. Analyzing specific applications provides insights into how pressure considerations influence joint selection and performance.
In power plants, rubber expansion joints must withstand high temperatures and pressures. They are used in condenser connections, cooling water systems, and turbine inlets. Proper pressure ratings and material selection are crucial to prevent catastrophic failures that could lead to downtime and costly repairs.
Chemical plants require joints that resist aggressive chemicals and high pressures. The pressure at the joints can fluctuate due to reactions and process changes. Engineers must select rubber materials compatible with the chemicals and design joints to handle pressure variations safely.
Proper installation and maintenance of rubber expansion joints are essential for their performance and longevity. Incorrect installation can lead to excessive pressure on the joint, causing premature failure. Regular inspections help identify signs of wear, enabling timely replacements.
During installation, it's important to align the joints correctly and avoid pre-stressing them. Flange bolts should be tightened gradually and evenly to prevent uneven pressure distribution. Incorporating control units can limit excessive movements and pressure-induced elongation.
Regular maintenance involves visual inspections for signs of cracking, blistering, or deformation. Monitoring the system's operating conditions ensures that pressure levels remain within the joint's rated capacity. Replacing joints at the first sign of significant wear prevents system failures.
Advancements in materials science have led to the development of rubber expansion joints with enhanced capabilities. Innovations include improved elastomer compounds, hybrid materials, and smart monitoring systems that provide real-time data on joint performance.
New elastomer formulations offer superior resistance to temperature extremes, chemicals, and pressure. These materials extend the service life of joints and allow for use in more demanding applications. For example, fluoroelastomers can handle higher temperatures and aggressive media.
Hybrid joints combine rubber with other materials like metal or PTFE to enhance performance. These joints can handle higher pressures while maintaining flexibility. A double ball rubber bellows pipe joint with carbon steel flanges exemplifies such innovation, providing greater movement absorption and pressure handling.
Compliance with industry standards and regulations ensures the safety and reliability of rubber expansion joints. Organizations like the Rubber Expansion Joint Division of the Fluid Sealing Association provide guidelines on manufacturing, testing, and installation.
Standards like the ASTM F1123 outline methods for pressure testing rubber joints. These tests verify that joints can withstand specified pressures without leakage or failure. Adherence to such standards is critical for quality assurance.
Manufacturers often obtain certifications such as ISO 9001 to demonstrate their commitment to quality management. Quality control processes include material inspections, dimensional checks, and pressure testing to ensure each joint meets the required specifications.
The cost of rubber expansion joints and their maintenance impacts the overall economics of a piping system. Selecting the right joint involves balancing upfront costs with long-term performance and maintenance expenses.
Evaluating the life cycle cost includes initial purchase price, installation costs, maintenance, and expected service life. Investing in higher-quality joints may result in lower total costs due to reduced downtime and maintenance requirements.
Calculating the return on investment involves assessing how the joint's performance contributes to operational efficiency. Efficient joints reduce energy consumption by minimizing flow resistance and preventing leaks, leading to cost savings over time.
Rubber expansion joints also play a role in environmental protection and safety. Properly functioning joints prevent leaks of hazardous materials, contributing to environmental conservation and workplace safety.
Leaks can lead to environmental contamination and health hazards. Expansion joints designed to handle the appropriate pressure reduce the risk of leaks. Regular monitoring and maintenance are essential to ensure joints remain secure.
Industries are subject to regulations that govern emissions and waste. High-quality expansion joints help companies comply with these regulations by preventing unintended releases of pollutants. Failure to comply can result in fines and reputational damage.
The field of rubber expansion joints is evolving with technological advancements. Future developments may include smart materials, improved monitoring systems, and more sustainable manufacturing processes.
Integrating sensors into expansion joints allows for real-time monitoring of pressure, temperature, and strain. This data enables predictive maintenance, reducing the likelihood of unexpected failures. The use of the Internet of Things (IoT) can facilitate remote monitoring and data analysis.
There's a growing interest in developing rubber materials that are more environmentally friendly. Using recycled materials or biobased elastomers reduces the environmental footprint of expansion joints. Research into these materials aims to maintain performance while enhancing sustainability.
The pressure at rubber expansion joints is a critical factor that influences their design, selection, and operation. Thorough understanding of pressure dynamics ensures that these components perform effectively, maintaining system integrity and safety. Advances in technology and materials continue to improve the capabilities of rubber expansion joints, offering better performance and reliability.
Professionals must stay informed about the latest developments and standards to select the appropriate Rubber Expansion Joint solutions for their systems. Proper installation, regular maintenance, and adherence to best practices are essential for maximizing the lifespan and effectiveness of these critical components.
Temperature changes can cause the fluid within the system to expand or contract, altering the internal pressure. Additionally, thermal expansion of the piping material itself can exert external pressure on the joints. Selecting an expansion joint that accommodates temperature fluctuations is crucial for maintaining system integrity.
Tie rods are used to control the axial movement of expansion joints, preventing excessive elongation due to internal pressure. They absorb the thrust forces generated by the pressure, protecting the joint and the connected equipment from damage.
Standard rubber expansion joints are typically designed for moderate pressure levels. For high-pressure applications, it's necessary to use specially designed joints that can handle the increased stress. Consulting with manufacturers to select appropriate flanged rubber expansion joint options is recommended.
Inspections should be conducted regularly, with the frequency depending on the operating conditions and the manufacturer's recommendations. High-pressure systems may require more frequent inspections to detect signs of wear or damage early.
Overpressurizing can lead to catastrophic failure of the joint, resulting in leaks, equipment damage, or even safety hazards. It compromises the joint's structural integrity, emphasizing the importance of selecting a joint with an appropriate pressure rating and including safety margins.
Yes, industry standards such as those from the ASTM and the Fluid Sealing Association provide guidelines on pressure ratings, testing methods, and safety factors for rubber expansion joints. Compliance with these standards ensures reliability and safety.
Advanced materials, including high-performance elastomers and composite reinforcements, enhance the joint's ability to withstand higher pressures. They offer improved mechanical properties, such as increased tensile strength and flexibility, allowing for better performance under demanding conditions.
