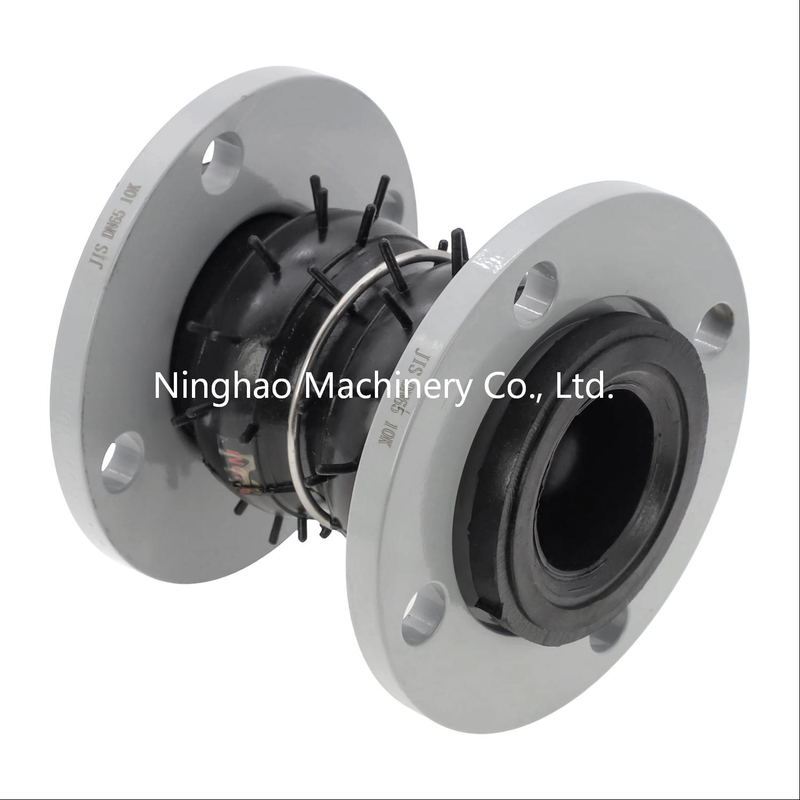

Flanged Pipeline Expansion Joint NBR Rubber Compensator

Standard Specification:
Max.Working Pressure 2.5Mpa
Operating Temperature -20ºC-100ºC
Vacuum KPa (mmHg) 44.9(350)
Applicable Media Sea Water, Drinking Water, etc.
Flange Standard DIN, JIS, GOST, ANSI, etc.
Component Parts:
Item Part Material
1 Body Outer Layer NR, EPDM, NBR, FKM
2 Body lnner Layer NR, EPDM, NBR, FKM
3 Reinforced Fabric Nylon
4 Wire Steel
5 Flange Zinc Plated/Sprayed CS, SS304, SS316, Cast Steel
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • NHFLEX-B

  • Ninghao

NHFLEX-B TYPE  Flanged Pipeline Expansion Joint  NBR Rubber Compensator
Double Sphere Rubber Compensator Pipeline Expansion Joint for Vibration Absorber

1. Product Overview

    The Flanged Pipeline Expansion Joint NBR Rubber Compensator is a flexible pipeline component designed to absorb movement, vibration, and noise in piping systems. It protects pipelines and connected equipment from stress caused by thermal expansion, pressure variation, and mechanical misalignment.

2. Material Performance


Made from NBR (Nitrile Butadiene Rubber), the compensator offers:

  • Excellent resistance to oil, fuel, grease, and hydrocarbons

  • Good mechanical strength and elasticity

  • Reliable performance under continuous operation
    This makes it particularly suitable for oil-related and industrial fluid systems

3. Functional Capabilities

  • Absorbs axial, lateral, and angular displacement

  • Reduces vibration and operational noise

  • Compensates for pipeline misalignment

  • Minimizes stress on pumps, valves, and other mechanical equipment


4. Application Fields


Widely used in:

  • Oil & gas pipelines

  • Petrochemical and chemical plants

  • HVAC and refrigeration systems

  • Power generation facilities

  • Water treatment and industrial circulation systems


Product Parameters

Standard Specification:

Max.Working Pressure 2.5Mpa
Operating Temperature -20ºC-100ºC
Vacuum KPa (mmHg) 44.9(350)
Applicable Media Sea Water, Drinking Water, etc.
Flange Standard DIN, JIS, GOST, ANSI, etc.

Component Parts:

Item Part Material
1 Body Outer Layer NR, EPDM, NBR, FKM
2 Body lnner Layer NR, EPDM, NBR, FKM
3 Reinforced Fabric Nylon
4 Wire Steel
5 Flange Zinc Plated/Sprayed CS, SS304, SS316, Cast Steel
NHFLEX-B TYPE Rubber Joint Size Chart:
  SIZE LENGTH Movemont Capablllty
DN F/F Comp. Ext. Lateral Angular
  (mm) (mm) (mm) (mm) (mm) (degree)
  40 175 10 20 20 30
  50 175 10 20 20 30
  65 175 10 20 20 30
  80 175 10 20 20 30
  100 225 15 30 25 30
  125 225 15 30 25 30
  150 225 15 30 25 30
  200 325 20 40 30 30
  250 325 20 40 30 30
  300 325 20 40 30 30
  350 350 20 40 30 30
  400 350 20 40 30 30
  450 350 25 45 30 30
  500 350 25 45 30 30
  600 350 25 45 30 30
* Control units must be used when piping is not properly anchored.
   The rated pressure can be above 2.5MPa, but products will only be sold with control units.
   Pressure rating is based on 30ºC operating temperature. The pressure rating is reduced at higher temperatures.
   Rated pressure in the above table is the maximum "working pressure". Test pressure is 1.5 times "working pressure", Burst pressure is 4 times "work pressure".
