Introduction:
Rubber Expansion Joints are essential components in industrial piping systems, designed to absorb vibrations and movements caused by temperature fluctuations and mechanical forces. However, improper storage can lead to aging and dry rot, compromising their performance and lifespan.
In this article, we will explore the best practices for storing Rubber Expansion Joints correctly, helping you avoid common mistakes that can lead to damage. By following these tips, you can significantly extend the lifespan of your expansion joints and ensure the continued efficiency of your piping system.

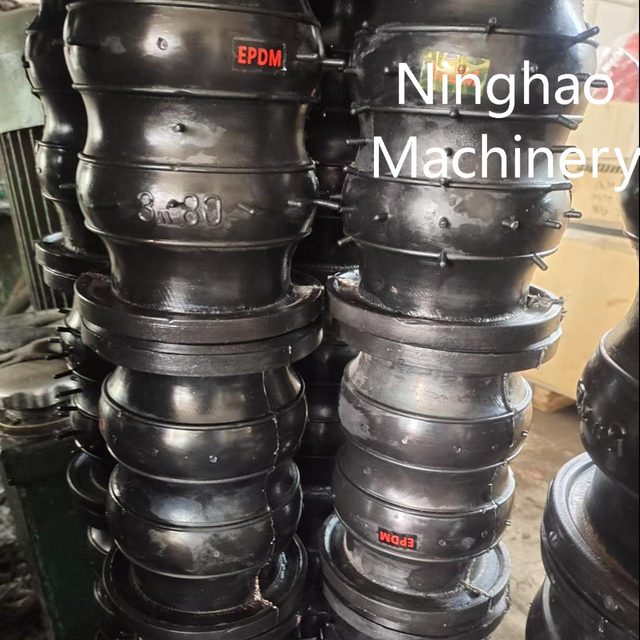

Understanding Rubber Expansion Joints
Rubber expansion joints are essential components in piping systems, offering flexibility and movement compensation where metal joints might fail due to their rigidity. These joints are typically constructed from natural or synthetic elastomers, fluoroplastics, and reinforced fabrics, providing excellent vibration isolation and thermal expansion compensation.
Key Features of Rubber Expansion Joints
Rubber expansion joints are crafted to handle different mechanical and thermal stresses in various industrial systems. Their flexible nature makes them ideal for absorbing vibration and movements without compromising the integrity of the pipes. Here are the key features:
● Construction Materials: These joints are often made from natural or synthetic elastomers like EPDM, NBR, and NR, sometimes combined with fluoroplastics for added strength. In some designs, metallic reinforcements are used to increase durability, especially in high-stress environments.
● Flexibility: Rubber expansion joints are highly flexible, making them suitable for systems where axial, lateral, and angular movements occur frequently. This flexibility helps maintain system integrity during pipe shifts caused by temperature changes or mechanical forces.
● Noise and Vibration Absorption: The rubber material naturally isolates noise and vibration, making these joints particularly beneficial for systems like HVAC and water treatment plants, where minimizing sound and vibration is essential.
Feature | Rubber Expansion Joints |
Materials | EPDM, NBR, NR elastomers, optional fabric reinforcements |
Flexibility | High flexibility for axial, lateral, and angular movements |
Vibration Isolation | Excellent at reducing vibration and noise |
Applications | HVAC, water systems, chemical plants, compressors, etc. |
Benefits of Rubber Expansion Joints
Rubber expansion joints offer several advantages, making them an excellent choice for various industrial applications. Here’s why they stand out:
● Superior Flexibility: These joints can absorb movements in all directions (axial, lateral, angular) better than metal joints. This makes them ideal for systems that require high flexibility, like HVAC systems and industrial piping.
● Cost-effective: Rubber expansion joints generally come at a lower upfront cost compared to metal alternatives, making them an attractive choice for systems with moderate temperature and pressure requirements.
● Noise and Vibration Isolation: The elastomeric properties of rubber make these joints ideal for applications where reducing noise and vibration is crucial. Systems like water treatment plants, HVAC systems, and even chemical plants benefit greatly from these properties, helping to ensure smoother operations.
Applications of Rubber Expansion Joints
Rubber expansion joints are widely used in many industrial applications, particularly where flexibility, noise reduction, and vibration isolation are essential. NHFlex’s range of rubber expansion joints covers a variety of industrial needs:
● Water Treatment: Rubber joints are essential in water treatment plants, where systems are subject to thermal expansion, vibration, and movement.
● HVAC Systems: Rubber joints are perfect for HVAC systems as they handle thermal expansion and contraction while providing noise and vibration isolation.
● Chemical Plants and Compressors: These joints absorb the stresses of chemical process systems, ensuring the safe flow of materials through pipelines while maintaining system performance.
● General Industrial Systems: From compressors to general piping systems, rubber expansion joints are used in nearly every industry that requires movement compensation.
Understanding Metal Expansion Joints
Metal expansion joints serve an entirely different function compared to rubber joints. They are designed to withstand high-pressure and high-temperature environments. These joints are typically made from metal bellows, such as stainless steel, and are suited for industries where durability and strength are key.
What Are Metal Expansion Joints?
Metal expansion joints are components that absorb mechanical and thermal movements in piping systems under extreme conditions. Made from stainless steel or other high-strength metals, they provide enhanced durability and are designed for systems exposed to high temperatures and pressures. The construction of these joints allows them to handle significant forces, making them suitable for industries like petrochemical and power generation.
Key Benefits of Metal Expansion Joints
Metal expansion joints offer distinct advantages over their rubber counterparts, particularly in environments that involve extreme conditions:
● Temperature and Pressure Resistance: Metal expansion joints can withstand temperatures ranging from -420°F to +1800°F. Their ability to handle extreme temperatures and pressures makes them ideal for high-performance systems.
● Corrosion-Resistant: Most metal expansion joints are made from stainless steel, a material that is resistant to corrosion and chemical degradation, ensuring they last longer in challenging environments.
● Durability and Longevity: Unlike rubber joints, metal expansion joints are known for their extended service life, making them a reliable solution for long-term use in demanding applications.
Limitations of Metal Expansion Joints
Despite their durability and strength, metal expansion joints have certain limitations:
● Less Flexibility: Unlike rubber joints, which excel in absorbing lateral and angular movements, metal joints are more rigid and are primarily designed to handle axial movement. This can affect their performance in systems where flexibility is required.
● Cost: Metal expansion joints generally come with a higher upfront cost compared to rubber joints, making them less cost-effective for applications with moderate pressure and temperature requirements.
● Installation Complexity: Metal joints may require more complex installation procedures and specialized support equipment due to their weight and rigidity.
Feature | Metal Expansion Joints |
Materials | Stainless steel, other high-strength metals |
Flexibility | Primarily handles axial movement |
Temperature Resistance | -420°F to +1800°F |
Pressure Resistance | Up to 1000 PSI |
Applications | Power generation, petrochemical, heavy industries |
What Are Expansion Joints?
Expansion joints are components designed to absorb the stress caused by thermal expansion, vibration, and movement in piping systems. They prevent damage to the pipeline by accommodating shifts in length or alignment that occur when temperatures change or when machinery vibrates.
These joints play a vital role in extending the life of a system by preventing cracking, misalignment, and unnecessary pressure on valves, pumps, and other equipment.
Types of Expansion Joints
There are two primary types of expansion joints commonly used in industrial applications:
● Rubber Expansion Joints: These are made from elastomers, fabric, and sometimes reinforced with metallic components to provide flexibility. Ideal for systems where vibration isolation and movement compensation are key.
● Metal Expansion Joints: Constructed from metal bellows, these joints are designed to handle high pressure and temperature. They are typically used in more demanding industrial applications such as power generation and petrochemical industries.
Type of Expansion Joint | Key Materials | Best For |
Rubber Expansion Joints | Elastomers, fabric, metal reinforcements | Vibration isolation, moderate pressures |
Metal Expansion Joints | Stainless steel, metal alloys | High-pressure, high-temperature systems |
How Expansion Joints Improve System Efficiency
Expansion joints improve the overall system efficiency by reducing strain on pipes and preventing damage. Here’s how they work:
● They absorb thermal expansion, allowing the pipe to move freely without creating additional stress.
● They isolate vibration caused by pumps, motors, or other machinery, which reduces wear and tear on pipes and valves.
● By preventing misalignment, expansion joints ensure smooth fluid or gas flow, enhancing system performance.
Rubber vs. Metal Expansion Joints: Key Differences
When choosing between Rubber Expansion Joints and Metal Expansion Joints, it's crucial to understand their key differences. Each type offers distinct benefits based on the system's operational needs, environmental conditions, and the specific demands of the piping system.
Temperature and Pressure Resistance
● Rubber Joints: Ideal for applications with moderate temperature and pressure conditions, typically up to 400°F. They perform well in systems that do not experience extreme fluctuations in temperature or pressure.
● Metal Joints: Designed to withstand extreme temperature and pressure conditions, ranging from -420°F to +1800°F. These joints are more suited for heavy-duty industrial applications like petrochemical plants and power generation systems.
● NHFlex Advantage: NHFlex’s rubber expansion joints are engineered for high flexibility while handling temperature and pressure up to the limits of typical industrial systems. Their resilience and reliable performance make them the ideal choice for applications requiring movement absorption without the need for extreme conditions.
Feature | Rubber Expansion Joints | Metal Expansion Joints |
Temperature Resistance | Up to 400°F | -420°F to +1800°F |
Pressure Resistance | Moderate pressure, up to 250 PSI | High pressure, up to 1000 PSI |
Best for | HVAC, water systems, chemical plants | Heavy industries, high-temperature systems |
Flexibility and Movement Absorption
● Rubber Joints: Rubber expansion joints are better suited for handling lateral, axial, and angular movements in piping systems. This flexibility allows them to accommodate the continuous expansion and contraction caused by temperature changes or mechanical vibrations.
● Metal Joints: Primarily designed for axial movement, metal joints have more limited flexibility when it comes to lateral and angular movements.
● NHFlex Feature: NHFlex’s rubber joints are specifically designed to absorb vibration and movement, making them ideal for systems like HVAC, water treatment, and chemical plants where flexibility and the ability to absorb multi-directional movements are critical.
Movement Type | Rubber Expansion Joints | Metal Expansion Joints |
Axial Movement | Excellent flexibility | Handles well |
Lateral Movement | Superior performance | Limited capacity |
Angular Movement | Highly effective | Limited capacity |
Durability and Service Life
● Rubber Joints: While rubber expansion joints are highly effective in vibration isolation and flexibility, they typically require more frequent maintenance and replacement due to wear over time. However, they offer excellent cost-efficiency and performance in systems with moderate demands.
● Metal Joints: Metal joints generally have a longer service life and require less frequent maintenance, making them suitable for high-pressure, high-temperature systems.
● NHFlex Insight: While metal joints may offer extended lifespans, NHFlex’s rubber joints are specifically designed to be highly durable and perform efficiently in systems where flexibility and vibration isolation are the top priorities, such as HVAC systems and water treatment plants.
Durability | Rubber Expansion Joints | Metal Expansion Joints |
Service Life | Shorter lifespan, more maintenance | Longer lifespan, less maintenance |
Ideal Usage | Moderate temperature/pressure | Extreme temperature/pressure |
Selecting the Right Expansion Joint for Your Application
Choosing the right expansion joint is essential to ensure the efficiency and longevity of your piping system. The decision between Rubber Expansion Joints and Metal Expansion Joints depends on various factors such as operating conditions, movement, vibration, and budget. Let's break it down:
Operating Conditions
When selecting an expansion joint, the temperature, pressure, and type of media passing through the system are critical considerations.
● Rubber Joints: Ideal for systems with moderate temperatures (up to 400°F) and pressure conditions. They are perfect for HVAC, water treatment, and chemical systems that don't face extreme environments.
● Metal Joints: Designed for high-pressure and high-temperature environments, such as petrochemical and power generation systems.
Parameter | Rubber Expansion Joints | Metal Expansion Joints |
Temperature Range | Up to 400°F | -420°F to +1800°F |
Pressure Resistance | Up to 250 PSI | Up to 1000 PSI |
Best for | Moderate systems, HVAC, water treatment | Extreme conditions, heavy industries |
Movement and Vibration Considerations
Expansion joints play a crucial role in absorbing movements and isolating vibrations. The type of joint you choose depends on how much movement your system experiences:
● Rubber Joints: Better suited for systems that experience significant axial, lateral, and angular movements. Rubber joints are perfect for applications where vibration isolation is key, such as HVAC and water treatment plants.
● Metal Joints: While they handle axial movement well, metal joints have more limited flexibility for lateral and angular movements.
Movement Type | Rubber Expansion Joints | Metal Expansion Joints |
Axial Movement | Excellent | Good |
Lateral Movement | Superior | Limited |
Angular Movement | Excellent | Limited |
Budget and Lifecycle Costs
When selecting an expansion joint, budget and lifecycle costs are important considerations. Here’s how rubber and metal joints compare:
● Rubber Joints: Generally, rubber expansion joints have a lower initial cost compared to metal joints. However, they may require more frequent replacement in systems with high wear and tear.
● Metal Joints: Metal expansion joints come with a higher upfront cost but tend to last longer, requiring less frequent maintenance and offering long-term durability.
Cost Comparison | Rubber Expansion Joints | Metal Expansion Joints |
Initial Cost | Lower | Higher |
Maintenance Costs | Higher replacement frequency | Lower maintenance frequency |
Lifecycle | Shorter lifespan | Longer lifespan |
Advantages of Rubber Expansion Joints Over Metal
While both rubber and metal expansion joints serve critical roles, rubber joints provide distinct advantages in certain applications. Let’s explore the key benefits of choosing Rubber Expansion Joints for your system.
Noise and Vibration Damping
Rubber expansion joints excel in vibration isolation and noise reduction, making them ideal for sensitive environments such as hospitals, schools, and offices, where noise control is a priority.
● Rubber Joints: Their elastomeric nature helps absorb vibrations and reduces noise transmission more effectively than metal joints.
● NHFlex’s Solution: NHFlex rubber expansion joints are specifically designed for superior vibration isolation, providing enhanced comfort and quieter operation in systems like HVAC and water treatment plants.
Abrasion and Erosion Resistance
Rubber joints are more resistant to abrasive chemicals and abrasive slurries than metal joints. Their thicker construction allows them to withstand harsh operating conditions, particularly in water treatment plants or systems dealing with slurries.
Characteristic | Rubber Expansion Joints | Metal Expansion Joints |
Abrasion Resistance | High (thicker wall) | Susceptible to abrasive chemicals |
Erosion Resistance | Excellent for harsh environments | Lower, requires protective coatings |
NHFlex Innovation: NHFlex’s rubber products are designed with high-grade materials that improve their resistance to wear and tear in tough, abrasive environments.
Ease of Installation and Maintenance
● Rubber Joints: Easier to install and maintain than metal joints. They often don’t require specialized tools or equipment for installation, and their maintenance is straightforward, saving time and labor costs.
● Metal Joints: Typically heavier and require more specialized tools for installation. They may also need additional support components to ensure proper function.
NHFlex Simplicity: NHFlex’s rubber expansion joints are designed to be quick and easy to install, reducing both installation costs and downtime for your system.
Conclusion
In this article, we covered essential tips for preventing dry rot and aging in Rubber Expansion Joints. By following these practices, you can significantly extend their lifespan and ensure reliable performance. Nhflex provides high-quality, durable Rubber Expansion Joints that are designed for long-term use. Their advanced solutions ensure the best protection and functionality for your industrial systems.
FAQ
Q: What are Rubber Expansion Joints?
A: Rubber Expansion Joints are flexible connectors made from elastomers, designed to absorb vibrations and movements in piping systems, preventing damage from thermal expansion and misalignment.
Q: How should Rubber Expansion Joints be stored to prevent aging?
A: Store Rubber Expansion Joints in a cool, dry place away from direct sunlight. Avoid exposure to oils, chemicals, and extreme temperatures, as these can lead to dry rot and deterioration.
Q: Why is it important to prevent dry rot in Rubber Expansion Joints?
A: Preventing dry rot ensures that your Rubber Expansion Joints remain flexible and effective in absorbing movements. Dry rot weakens the material, which can lead to system failures.
Q: Can Rubber Expansion Joints be affected by extreme temperatures?
A: Yes, Rubber Expansion Joints are sensitive to high heat and freezing temperatures. Proper storage helps avoid material degradation caused by these conditions.
Q: How can I extend the lifespan of my Rubber Expansion Joints?
A: Regularly inspect and clean Rubber Expansion Joints, store them properly, and avoid overexposure to harsh conditions to maximize their lifespan and maintain optimal performance.
