NHFLEX-B
Ninghao

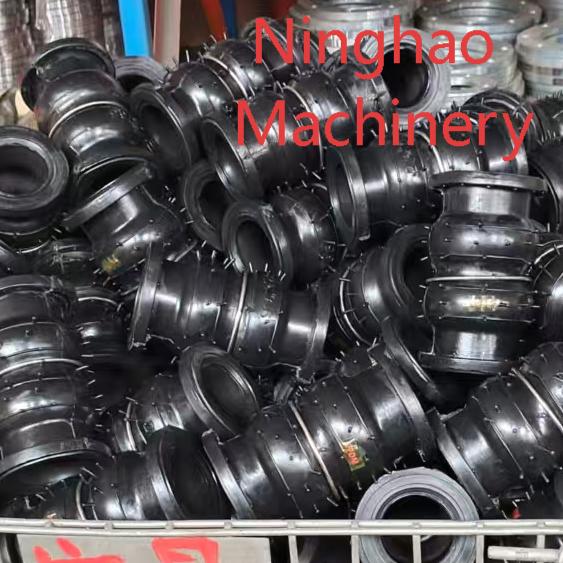

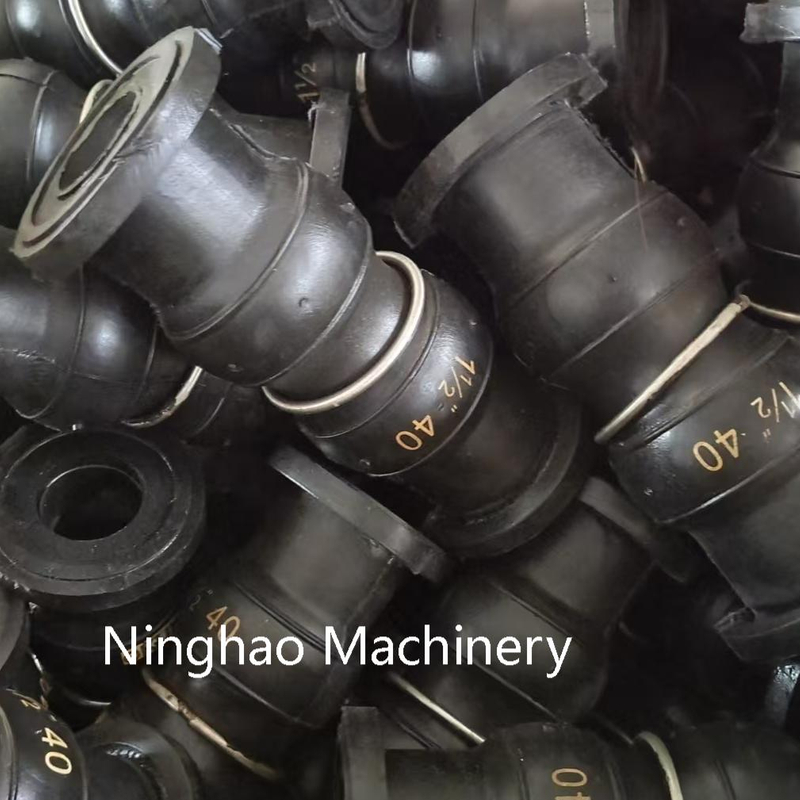

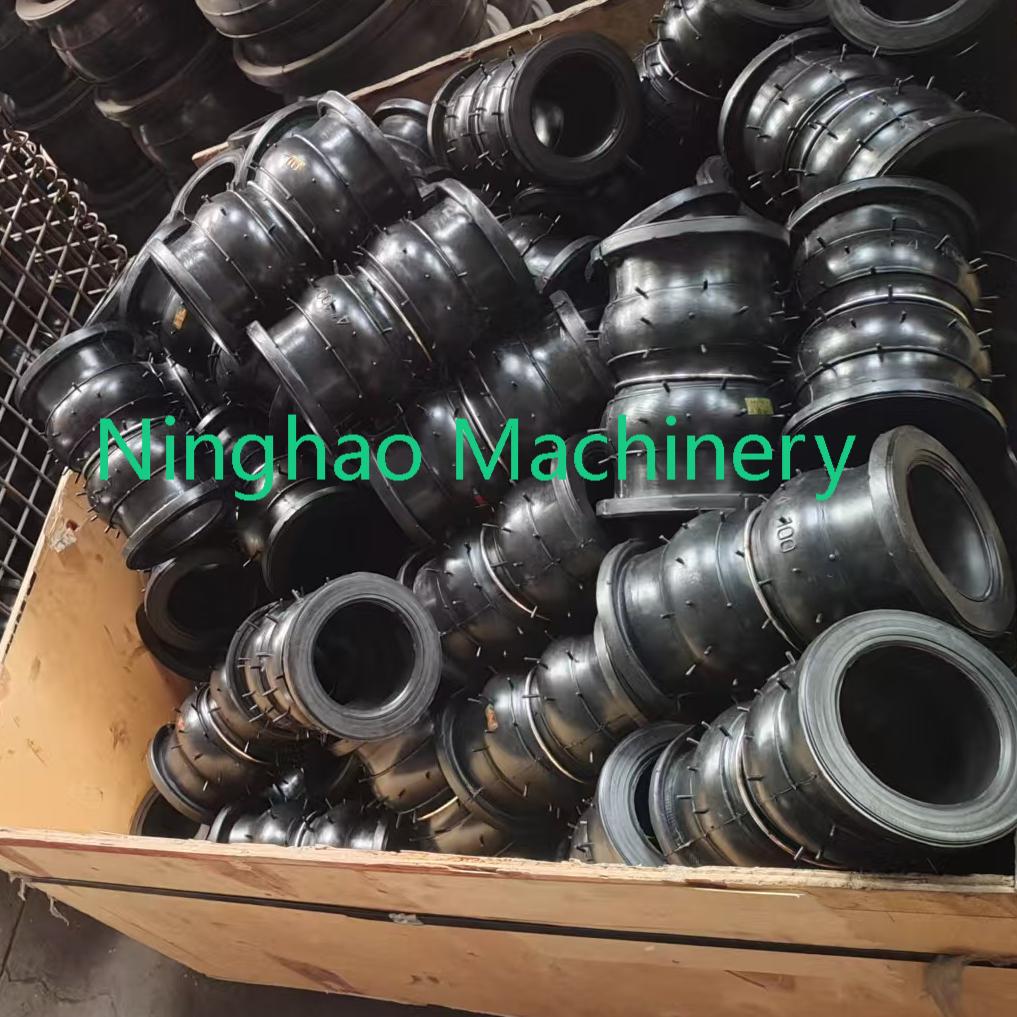

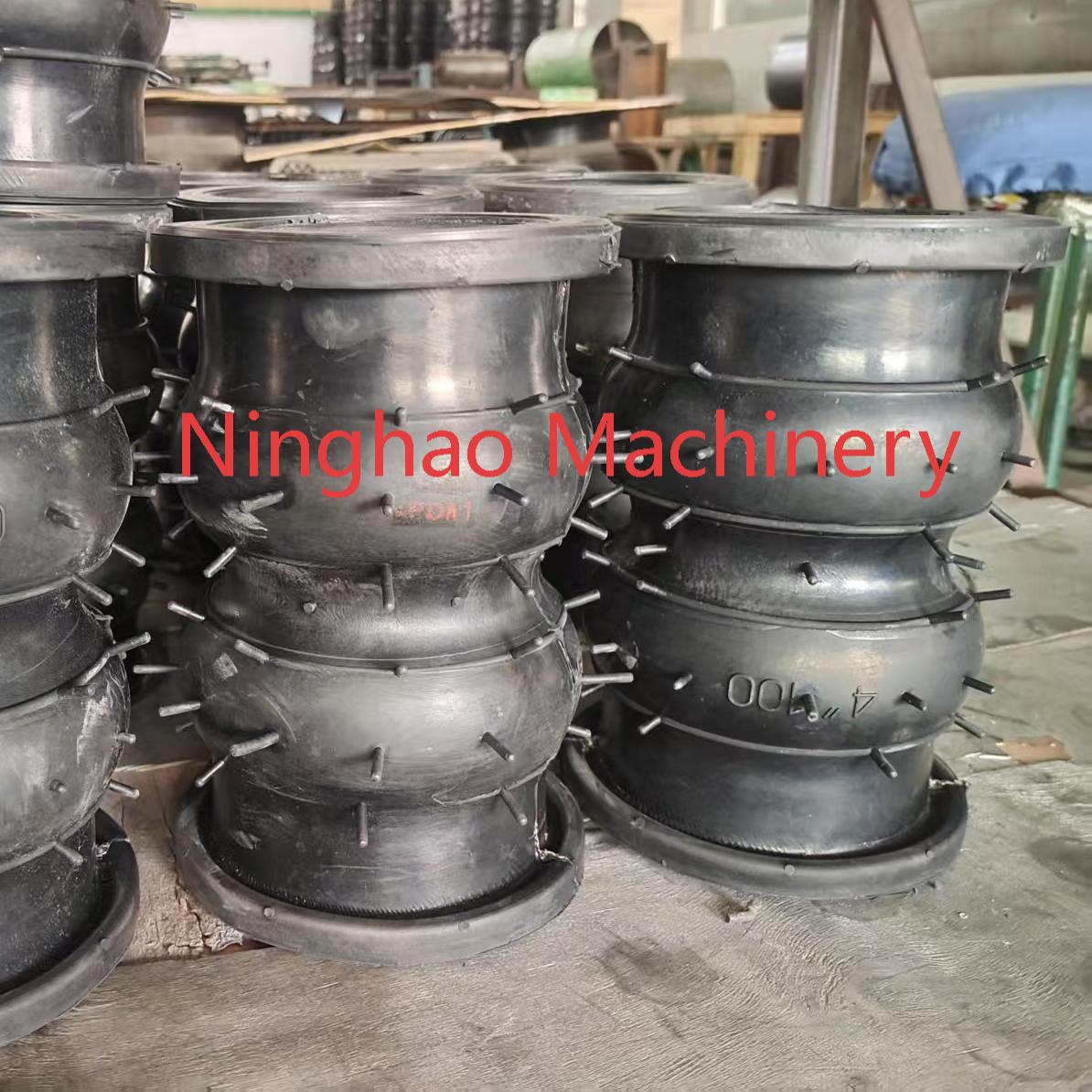

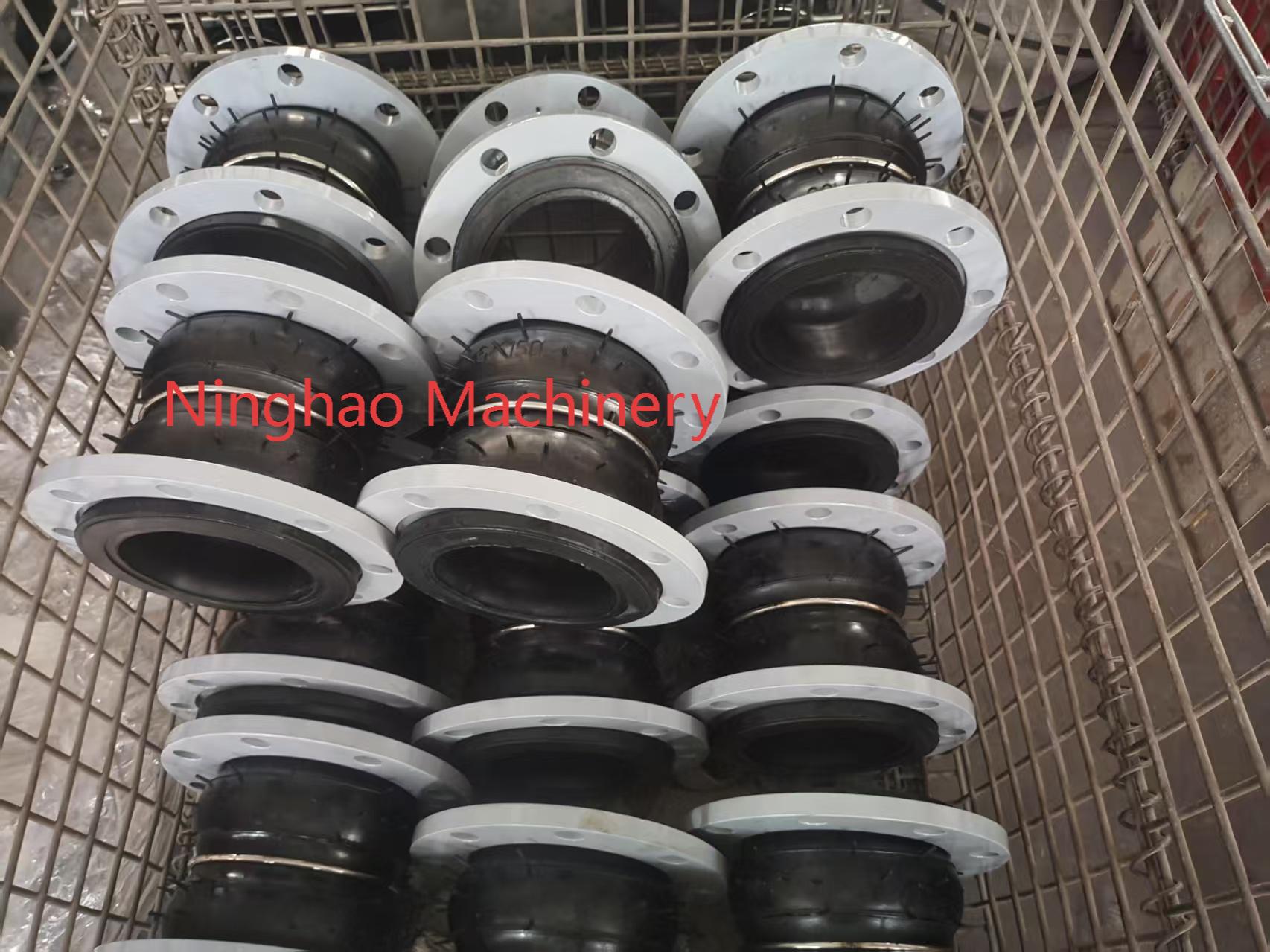

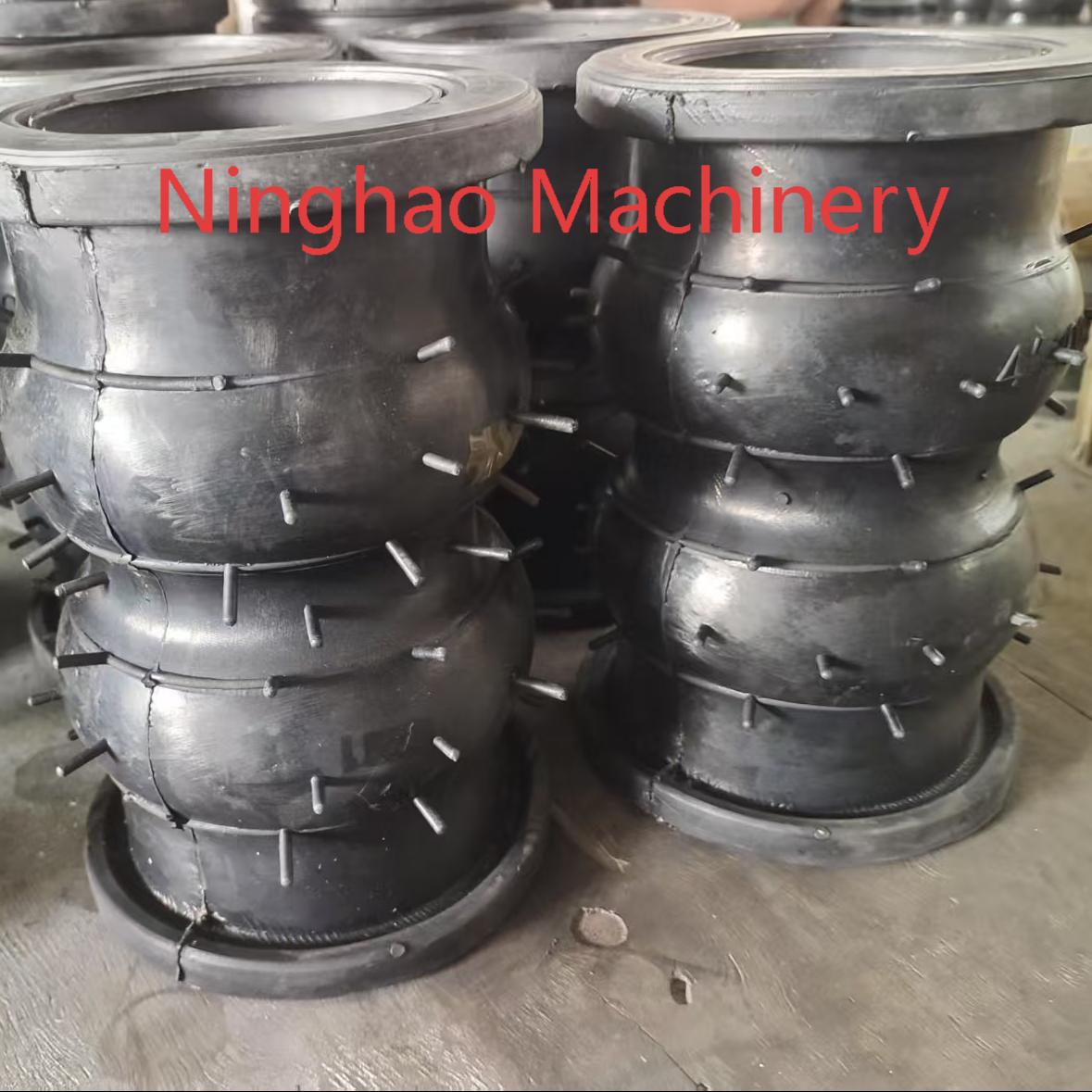

NHFLEX-B TYPE EPDM Double Ball Rubber Connector Expansion Joint with Flanges
The double sphere rubber joint is a reliable and versatile component widely applied in piping systems. Its primary function is to absorb movement, minimize vibration, and compensate for misalignment, ensuring smooth operation and extending the service life of the pipeline. Constructed from premium rubber materials, it offers excellent durability and strong resistance to corrosion, chemicals, and extreme temperature conditions, making it a dependable choice for demanding environments. With its dual-ball design, this rubber bellows offers exceptional flexibility and elasticity, easily accommodating axial, radial, and angular displacement. The dual-ball design ensures even stress distribution, reducing fatigue risks and extending joint service life. Additionally, this design effectively absorbs shock and reduces noise, enhancing overall system efficiency and reliability.
Characteristics:
1. Exceptional Corrosion Resistance: Crafted from high-grade rubber compounds, these expansion joints deliver strong resistance to corrosion and are suitable for use with a wide range of media, including water, oils, and gases.
2. Superior Flexibility for System Protection: Their elastic design enables them to absorb stresses caused by thermal fluctuations, vibrations, and pipe movements, effectively safeguarding the integrity of the pipeline system.
3. Vibration Absorption and Noise Reduction: By limiting the transmission of vibration and sound, rubber expansion joints help maintain a quieter and more stable operating environment.
4. Easy Installation and Minimal Maintenance: Featuring a simple, practical design, these joints are quick to install, require little servicing, and contribute to lower maintenance costs.
Standard Specification:
| Max.Working Pressure | 2.5Mpa | |||||
| Operating Temperature | -20ºC-100ºC | |||||
| Vacuum KPa (mmHg) | 44.9(350) | |||||
| Applicable Media | Sea Water, Drinking Water, etc. | |||||
| Flange Standard | DIN, JIS, GOST, ANSI, etc. | |||||
Component Parts:
| Item | Part | Material |
| 1 | Body Outer Layer | NR, EPDM, NBR, FKM |
| 2 | Body lnner Layer | NR, EPDM, NBR, FKM |
| 3 | Reinforced Fabric | Nylon |
| 4 | Wire | Steel |
| 5 | Flange | Zinc Plated/Sprayed CS, SS304, SS316, Cast Steel |
