Views: 0 Author: Site Editor Publish Time: 2026-08-29 Origin: Site
Fire protection systems represent the ultimate safety net for any commercial facility. Sprinklers, standpipes, and fire pumps must activate flawlessly during an emergency. A single failure here guarantees catastrophic consequences. However, rigid piping systems face immense mechanical stresses daily. Thermal expansion, seismic shifts, building settlement, and intense pump vibrations constantly threaten pipe integrity. Left unchecked, these powerful forces easily crack pipes and ruin expensive valves.

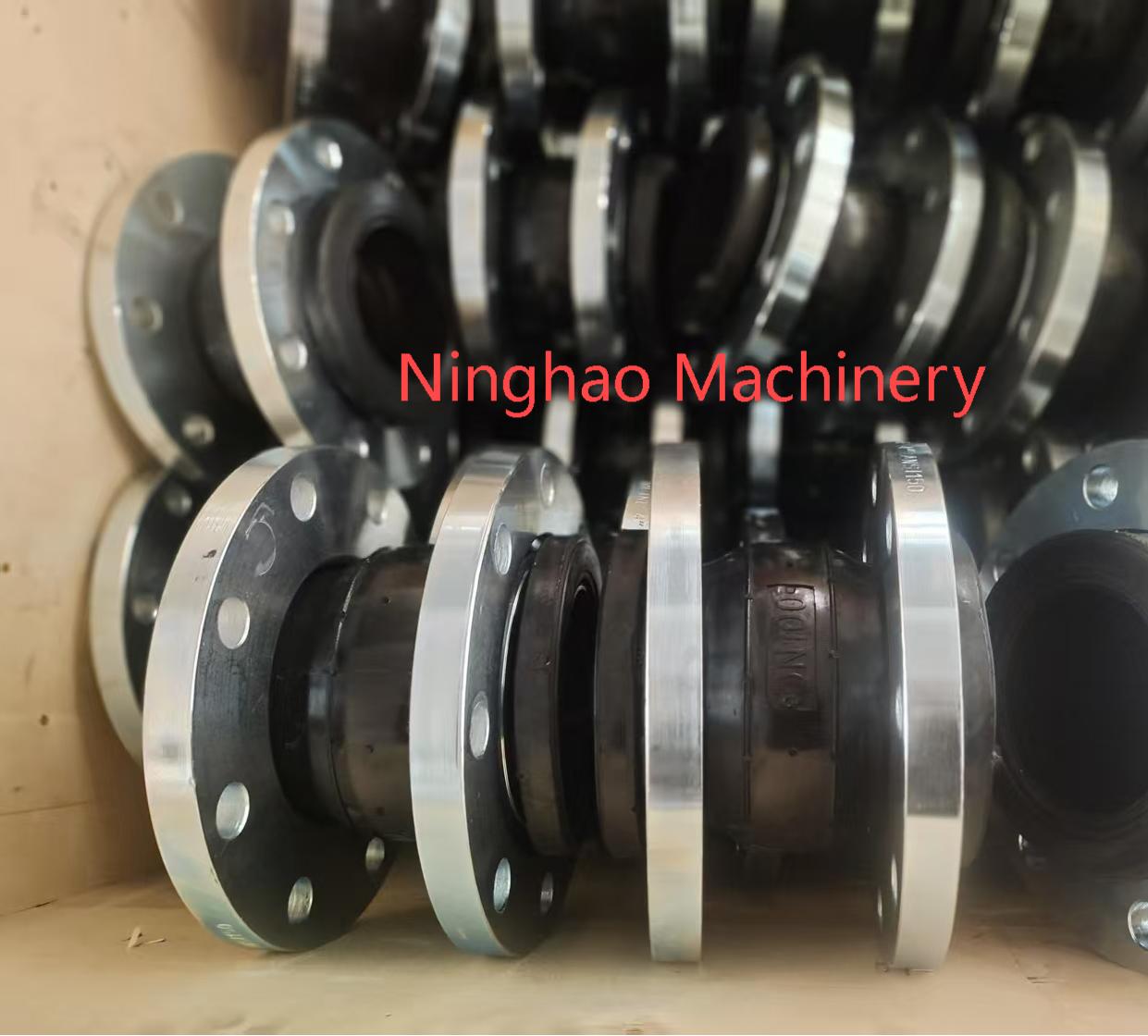

Engineers mitigate these severe risks by installing a fire protection rubber expansion joint. This vital component decouples mechanical stress and absorbs damaging system vibrations. It maintains critical system integrity under extreme pressure surges. You will learn how these joints prevent catastrophic blowouts and ensure compliance. We will explore material selection, detail crucial installation practices, and highlight rigorous certification standards required for modern building safety.
Risk Mitigation: Rubber expansion joints isolate fire pumps and piping from destructive vibrations and hydraulic shocks, ensuring system readiness.
Material Superiority: An EPDM expansion joint offers optimal resistance to water, aging, and ozone, outperforming metal alternatives in specific low-temperature, high-vibration applications.
Compliance is Mandatory: Selection must align with stringent standards (e.g., NFPA 13) and carry necessary certifications (UL Listed / FM Approved).
Installation Precision: Premature failures are rarely material defects; they are typically caused by missing control rods, improper anchoring, or over-extension during installation.
Facility managers face significant financial risks when fire protection infrastructure fails. False leaks cause immense water damage to property and inventory. Complete system failures during an actual fire cost lives and destroy buildings. Furthermore, non-compliance with local fire codes brings heavy regulatory fines. Protecting this infrastructure requires understanding the sheer physical forces acting on the piping layout.
Rigid pipes endure constant, invisible attacks from multiple mechanical stressors. These primary forces include:
Vibration: Heavy-duty fire pumps generate massive torque. They cycle on and off aggressively during weekly tests. This creates high-frequency vibrations throughout the mechanical room.
Thermal Movement: Unconditioned spaces experience extreme ambient temperature fluctuations. These changes force steel pipes to expand and contract continuously.
Seismic and Settlement Activity: Buildings shift naturally over time. Differential movement occurs between the main building structure and the internal piping infrastructure. Earthquakes amplify this movement dramatically.
These unchecked forces easily compromise peripheral devices. When a fire pump activates, it sends a sudden, violent surge of water through the lines. This hydraulic shock, commonly known as water hammer, produces severe pressure spikes. These spikes frequently trigger false positives in a water flow alarm. False alarms waste expensive emergency response resources. They also disrupt daily facility operations, forcing unnecessary evacuations and halting business productivity.
Engineers constantly evaluate material options when designing life-safety systems. You must objectively weigh rubber components against metal corrugated joints in fire applications. While metal joints perform well in extreme heat or steam applications, rubber dominates fire water systems for several distinct reasons.
Vibration dampening stands out as a primary advantage. Elastomers naturally absorb high-frequency vibrations. They dampen acoustic noise far more effectively than rigid metal alloys. When a massive diesel fire pump engages, the rubber body acts as a shock absorber. It prevents violent shaking from tearing adjacent pipe hangers from the concrete ceiling.
Corrosion resistance provides another massive operational benefit. Fire sprinkler lines typically hold stagnant water for decades. Metal corrugated joints suffer from galvanic corrosion and rust under these exact conditions. Microbiologically influenced corrosion easily destroys thin stainless steel bellows. Conversely, a fire protection rubber joint remains entirely impervious to rust. It maintains its structural integrity even after years of continuous submersion in stagnant, treated water.
Performance Metric | Rubber Expansion Joints | Metal Corrugated Joints |
|---|---|---|
Vibration Absorption | Excellent (High natural dampening) | Poor (Transmits vibration) |
Corrosion Resistance | Superior (Impervious to rust) | Vulnerable (Galvanic/pitting risks) |
Installation Flexibility | High (Accommodates multi-plane movement) | Moderate (Strict axial limits) |
Acoustic Dampening | Excellent | Poor |
Industry professionals strongly prefer specific elastomer formulations. Specifying an EPDM expansion joint represents the accepted engineering standard for fire suppression networks. Ethylene Propylene Diene Monomer (EPDM) delivers excellent elasticity. It boasts superior resistance to aging, weathering, and ozone degradation. More importantly, EPDM remains highly compatible with both standard fire water and concentrated firefighting foams. This chemical stability ensures the joint will not degrade from the inside out.
Life-safety components occupy a unique regulatory space. You cannot select these items based on manufacturer performance claims alone. They require strict, independent regulatory validation. The Authority Having Jurisdiction (AHJ) demands proof of reliability before issuing occupancy permits.
The National Fire Protection Association (NFPA) provides the authoritative framework for these systems. NFPA 13 dictates specific guidelines for seismic protection and overall system flexibility. Expansion joints play a critical role in fulfilling these code requirements. They allow rigid pipes to cross building seismic joints safely. They provide the necessary flexibility to prevent pipe rupture during major earth tremors.
Procurement teams must demand proper documentation. You must verify UL Listing and FM Approval for every joint installed in the suppression network. Laboratories subject these components to brutal testing protocols. They verify maximum burst pressure limits. They conduct exhaustive cycle testing to simulate decades of pump activations. They also perform strict fire exposure testing. This ensures the elastomer will not instantly melt and fail during an actual building fire.
Testing Category | Evaluation Focus | Compliance Goal |
|---|---|---|
Burst Pressure | Hydrostatic overload capacity | Ensure safety margins exceed pump surge |
Cycle Testing | Mechanical fatigue resistance | Validate lifespan under frequent pump starts |
Fire Exposure | Thermal degradation limits | Maintain seal integrity during active fires |
Material Aging | Ozone and water resistance | Prevent premature cracking and leaks |
Traceability guarantees long-term compliance. Inspectors look for permanent, legible markings on the outer cover of the rubber body. These tags must display the pressure rating, the exact material composition, and the date of manufacture. Missing identification tags often lead to failed inspections. Installers must never paint over these critical identification patches.
Even the most robust components fail if handled improperly. Experience shows contractors frequently make critical errors during installation. These common mistakes inevitably lead to catastrophic blowouts or rapid joint degradation.
Ignoring control rods represents the most dangerous contractor error. Control units, or limit rods, act as absolute requirements in fire protection networks. They prevent the joint from over-elongating under intense pump pressure. Pressure thrust forces easily stretch unsupported rubber beyond its physical limits. When a fire pump pushes water at 150 PSI, it generates thousands of pounds of axial force. Limit rods absorb this thrust force safely. They keep the rubber confined within its engineered movement envelope.
Contractors sometimes try using a rubber flexible joint to fix poorly aligned pipes. This practice is extremely dangerous. Using the joint to bridge a misaligned gap pre-stresses the rubber fabric. It forces the component to constantly fight against the rigid steel piping. This induces massive shear stress. It drastically reduces the operational lifespan of the installation.
Improper torqueing ruins perfectly aligned joints. Installers often over-tighten flange bolts using pneumatic impact wrenches. Uneven tightening crushes the internal rubber bead. This destroys the primary mechanical seal between the pipe flange and the joint. Installers must use calibrated torque wrenches. They should follow a strict star-pattern tightening sequence. This ensures even pressure distribution across the entire flange face, preserving the rubber bead completely.
Selecting the right product requires a systematic approach. Procurement and engineering teams need a strict technical checklist to avoid costly mistakes. Evaluating multiple dimensions guarantees you purchase a reliable, compliant product.
Follow these specific criteria when evaluating potential solutions:
Verify Pressure Ratings: Always compare the joint's operating and burst pressure ratings against the system's maximum hydraulic output. The joint must easily handle the peak surge pressure generated by the fire pump.
Examine Flange Specifications: Ensure the flange drilling perfectly matches your piping schematics. Verify compatibility between ANSI B16.5 and EN 1092 standards. Consider the benefits of floating metallic flanges. They rotate freely, making bolt hole alignment much easier during difficult installations.
Confirm Elastomer Compatibility: Check the chemical data sheet. Ensure the internal tube material (typically EPDM) tolerates your specific local water chemistry and any required firefighting foam concentrates.
Assess Supplier Expertise: Prioritize manufacturers offering verifiable submittal data and detailed installation schematics. Avoid vendors treating life-safety components as mere commoditized parts. You need dedicated technical support to calculate exact movement requirements and control rod sizing.
Evaluating these dimensions prevents premature system failures. It protects your facility from buying uncertified, substandard components disguised as heavy-duty hardware. Rigorous procurement directly supports long-term building safety.
Specifying the correct rubber expansion joint represents a low-cost, high-leverage investment. It ensures the total survival of a building's critical life-safety infrastructure. These vital components decouple mechanical stress, absorb violent pump vibrations, and prevent catastrophic pipe fractures during emergencies. Skipping them invites disastrous water leaks and guarantees regulatory compliance failures.
Engineers and contractors must act proactively. Audit your current piping schematics today. Check existing mechanical rooms for missing control rods or cracked rubber bodies. Request compliant technical submittals for all upcoming projects. Consult directly with an expansion joint specialist to guarantee proper sizing, material selection, and safe installation practices for your next major facility upgrade.
A: No. It must be specifically rated for fire protection, utilizing the correct elastomer (usually EPDM) and carrying relevant certifications (UL/FM) to satisfy local fire codes.
A: Yes, in almost all fire protection scenarios. Control rods prevent the joint from exceeding its maximum allowable extension during high-pressure surges, even if piping is anchored.
A: Expect an objective lifespan range of 10 to 15+ years. This assumes correct installation, zero pre-stressing, and routine maintenance and inspection as required by NFPA 25 guidelines.
A: It helps. By absorbing hydraulic shock and pump vibrations, the joint reduces pressure spikes that can cause mechanical switches in water flow alarms to register a false flow.
